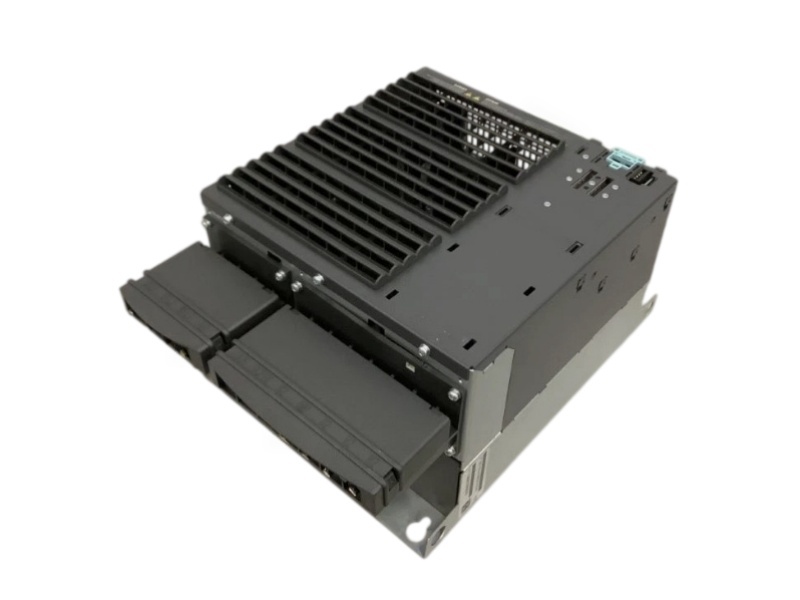

Siemens 6SL3224-0BE31-5UA0 SINAMICS G120 PM240 front view

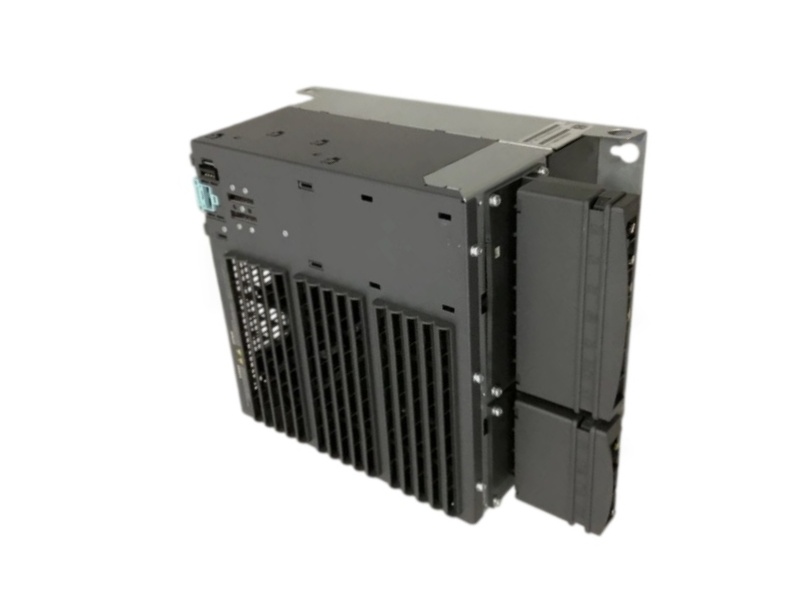

Siemens 6SL3224-0BE31-5UA0 SINAMICS G120 PM240 alternate view

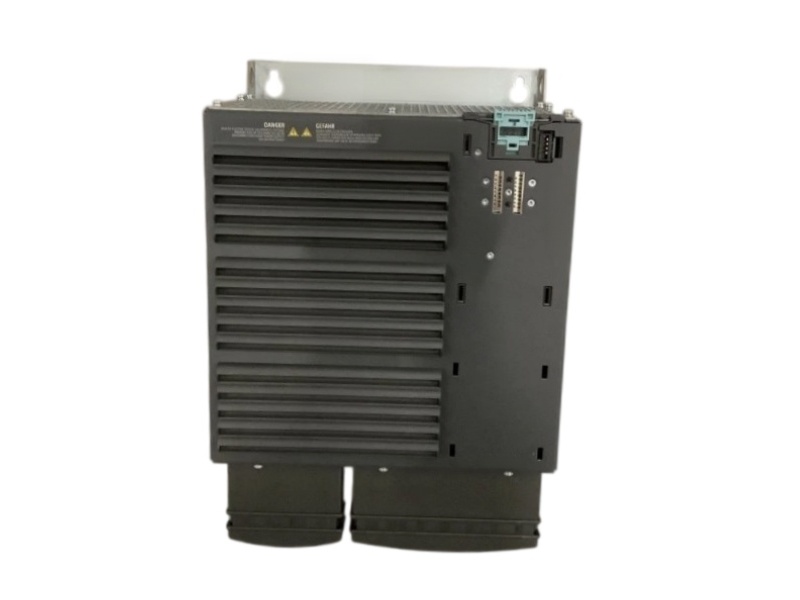

Siemens 6SL3224-0BE31-5UA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE31-5UA0 SINAMICS G120 PM240 Power Module 15 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE31-5UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 15 kW high-overload duty, 18.5 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
15 kW · 32 A
LOW OVERLOAD
18.5 kW · 38 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSD · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE31-5UA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
SHORTER FSD PROFILE

A 15 kW unfiltered module in the 419 mm-high FSD form.

The UA0 article keeps the 32/38 A duty ratings but removes the integrated filter, reducing official height and net mass.
EXACT ARTICLE · FSD
6SL3224-0BE31-5UA0

Unfiltered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units; EMC filtering is installation-specific.

HIGH OVERLOAD15 kW32 A output
LOW OVERLOAD18.5 kW38 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT32 A
LO OUTPUT CURRENT38 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.42 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS419 × 275 × 204 mm
NET WEIGHT13.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSD
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE31-5UA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
HEIGHT & EMC REVIEW

Treat the shorter unfiltered housing as its own cabinet design.

The 419 mm UA0 body and external EMC strategy distinguish it from the filtered FSD alternative.
ORDERING BOUNDARY

The unfiltered frame has a different mechanical record

Siemens documents 419 × 275 × 204 mm and 13.0 kg for this UA0 module. Recheck mounting points, airflow and external filter space.

Power Module only · Control Unit and BOP not included
01

Measure the installed bay

Confirm the 419 mm module height and all top/bottom service clearances.

02

Reserve EMC space

Account for external filtering, shield termination and grounding hardware where required.

03

Check the 15 kW duty

Match 32 A HO or 38 A LO to the motor and overload profile.

04

Confirm bolt terminals

Power connections are M6 with a 10–50 mm² conductor range.

MASS DIFFERENCE

The official unfiltered variant is 13.0 kg, lighter than the filtered FSD article.

INPUT CURRENT

Plan for 40 A with reactor or 46 A without reactor.

OUTPUT LIMIT

Maximum documented output current is 64 A.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE31-5UA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

How is 6SL3224-0BE31-5UA0 specified?

The unfiltered FSD module is rated 15 kW / 32 A HO and 18.5 kW / 38 A LO. Siemens documents a 419 × 275 × 204 mm, 13.0 kg IP20 enclosure for this exact UA0 article.


02

What makes the 0BE31-5UA0 configuration compatible with a cabinet?

Confirm the G120 Control Unit, 419 mm mounting height, M6 connections, 3 AC 380–480 V mains and external EMC provisions. UA0 requires the installation to provide any necessary filtering and shield strategy.

03

What types of variable-speed loads can use this module?

It supports motors needing 32 A high-overload duty or 38 A low-overload duty in a separately engineered EMC environment. Use the actual load cycle, acceleration demand and braking requirement to choose the duty basis.

04

What is the lifecycle and availability of 6SL3224-0BE31-5UA0?

Siemens records the product as cancelled effective 1 October 2019 and identifies it as a spare part. Confirm live stock, revision, physical condition and shipping date before purchase.

05

Why is 6SL3224-0BE31-5AA0 not a drop-in replacement?

The AA0 version includes Class A filtering and has a different documented height and mass. Review the complete suffix, mounting holes, EMC design, airflow, terminals, Control Unit and motor duty before substitution.

06

Which reference documents and quote details are required?

Request the PM240 hardware manual and Siemens data sheet for 6SL3224-0BE31-5UA0. For pricing, provide quantity, country, delivery deadline, nameplate photos, motor ratings, HO/LO cycle, Control Unit and cabinet/EMC information.
