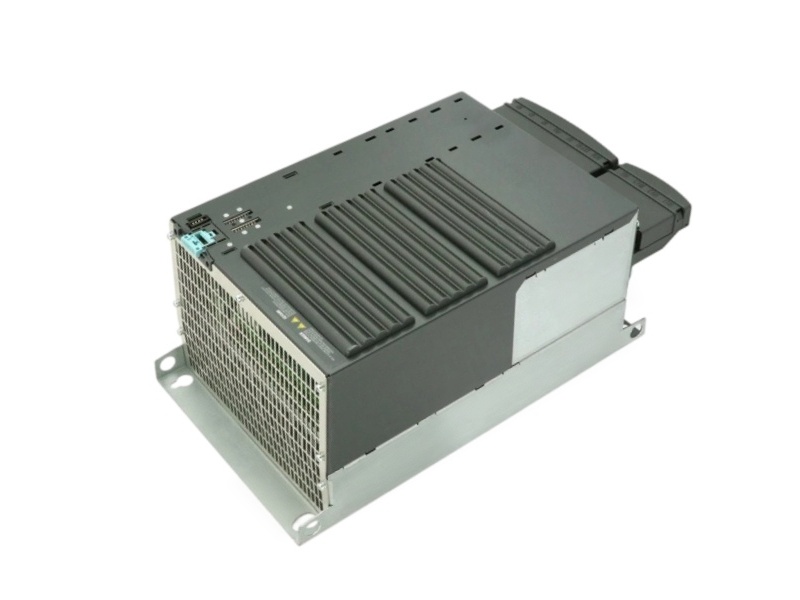

Siemens 6SL3224-0BE31-5AA0 SINAMICS G120 PM240 front view

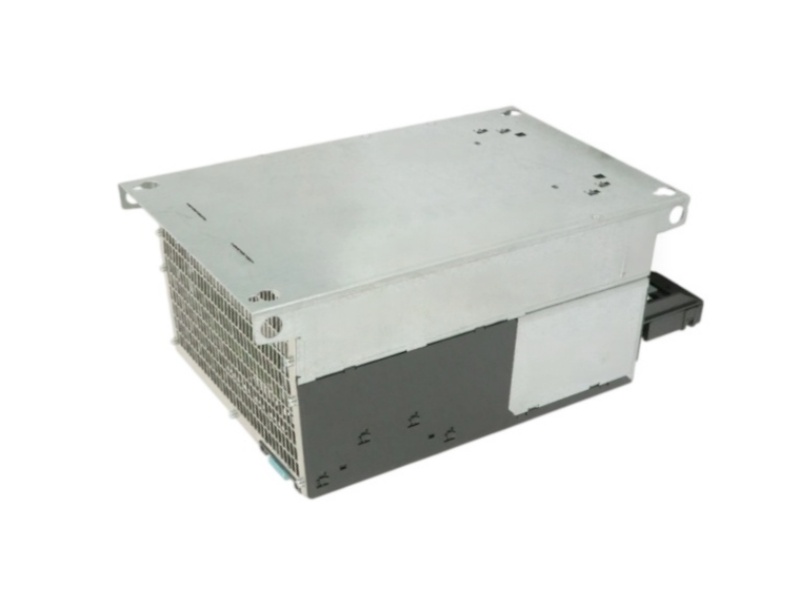

Siemens 6SL3224-0BE31-5AA0 SINAMICS G120 PM240 alternate view

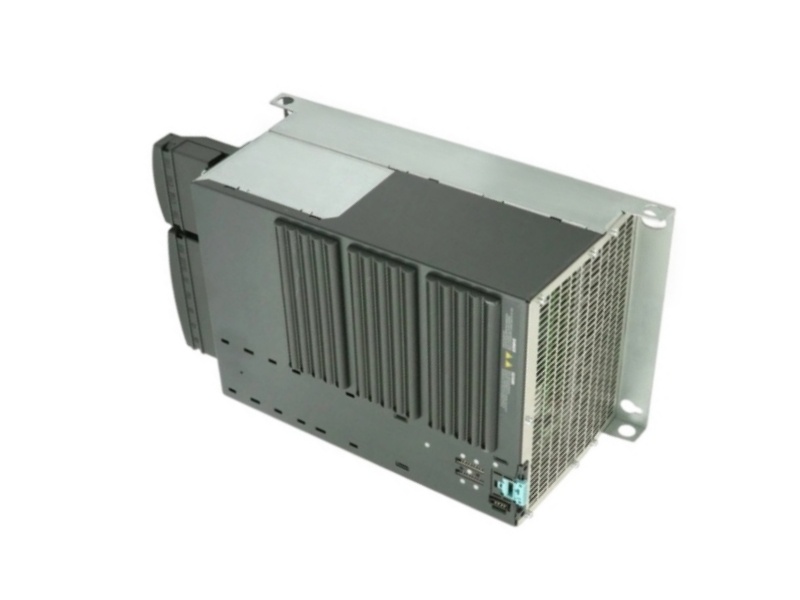

Siemens 6SL3224-0BE31-5AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE31-5AA0 SINAMICS G120 PM240 Power Module 15 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE31-5AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 15 kW high-overload duty, 18.5 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
15 kW · 32 A
LOW OVERLOAD
18.5 kW · 38 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSD · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE31-5AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FILTERED FSD PROFILE

The 15 kW HO transition into the larger FSD frame.

This AA0 module pairs 32 A high-overload output with a Class A filter, FSD enclosure and integrated braking chopper.
EXACT ARTICLE · FSD
6SL3224-0BE31-5AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD15 kW32 A output
LOW OVERLOAD18.5 kW38 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT32 A
LO OUTPUT CURRENT38 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.42 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS512 × 275 × 204 mm
NET WEIGHT16.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSD
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE31-5AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
CABINET TRANSITION

Recheck space and terminals when moving from FSD to FSD.

The 15/18.5 kW article changes enclosure size, mass and power-terminal hardware.
ORDERING BOUNDARY

FSD is a mechanical change, not only a power step

Reserve the full 512 mm height, 275 mm width and 204 mm depth, then verify M6 terminations and service clearances.

Power Module only · Control Unit and BOP not included
01

Validate panel height

The filtered FSD housing is 512 mm high and weighs 16.0 kg.

02

Plan M6 connections

Line, motor and DC-link connections use M6 bolts for 10–50 mm² conductors.

03

Apply the chosen duty

Use 15 kW / 32 A HO or 18.5 kW / 38 A LO.

04

Protect the cooling path

Keep the 55 l/s airflow route clear inside the cabinet.

FILTER INTEGRATION

The AA0 suffix includes the Class A input filter.

INPUT DEMAND

Rated input is 40 A with reactor or 46 A without reactor.

SYSTEM BOUNDARY

Control Unit and BOP are not supplied with the Power Module.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE31-5AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the main ratings and dimensions of 6SL3224-0BE31-5AA0?

This Class A filtered FSD PM240 delivers 15 kW / 32 A in high-overload duty and 18.5 kW / 38 A in low-overload duty. The documented enclosure is 512 × 275 × 204 mm, IP20, with a 16.0 kg net weight.


02

What determines compatibility at the FSC-to-FSD transition?

Verify the compatible G120 Control Unit, M6 power connections, 3 AC 380–480 V supply, FSD mounting and cooling space. A drive with similar power but an FSC or shorter unfiltered housing is not mechanically equivalent.

03

Which applications benefit from the 15 kW HO / 18.5 kW LO choice?

Use 32 A HO for machinery with stronger transient overload demand and 38 A LO for suitable pumps, fans or similar loads with lighter overload requirements. Confirm the motor current and braking cycle.

04

Can 6SL3224-0BE31-5AA0 still be ordered after cancellation?

The Siemens lifecycle record shows cancellation effective 1 October 2019 and spare-part handling. Supply is inventory-dependent, so request confirmation of stock condition, quantity and dispatch time.

05

What should be compared before installing a replacement FSD module?

Match the AA0 filtered suffix, 15/18.5 kW duty ratings, 32/38 A outputs, 512 mm height, 16 kg mass, terminal hardware, 55 l/s airflow, braking chopper and Control Unit configuration.

06

Which manual applies, and how can I obtain an accurate quotation?

Consult the SINAMICS G120 PM240 hardware installation manual and the 6SL3224-0BE31-5AA0 data sheet. Submit the full article number, quantity, destination, required date, motor and duty data, nameplate image, Control Unit and cabinet measurements.
