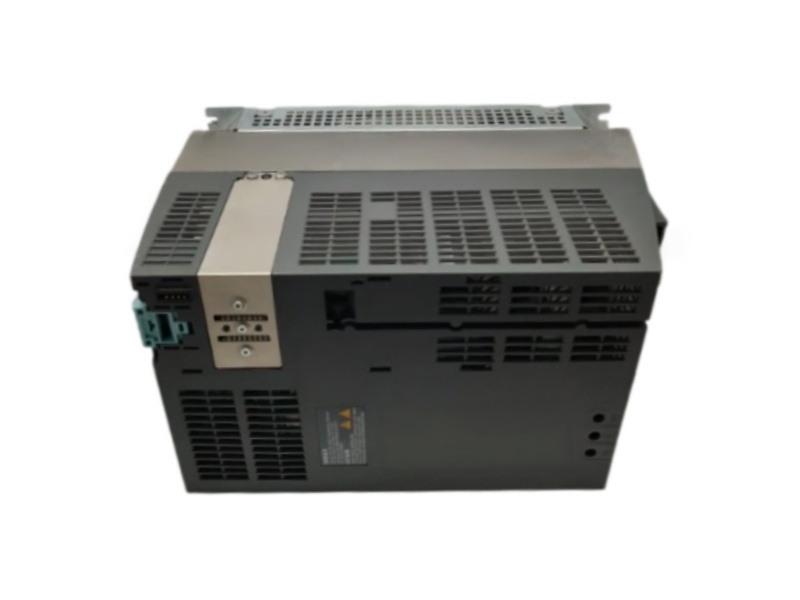

Siemens 6SL3224-0BE31-1AA0 SINAMICS G120 PM240 front view

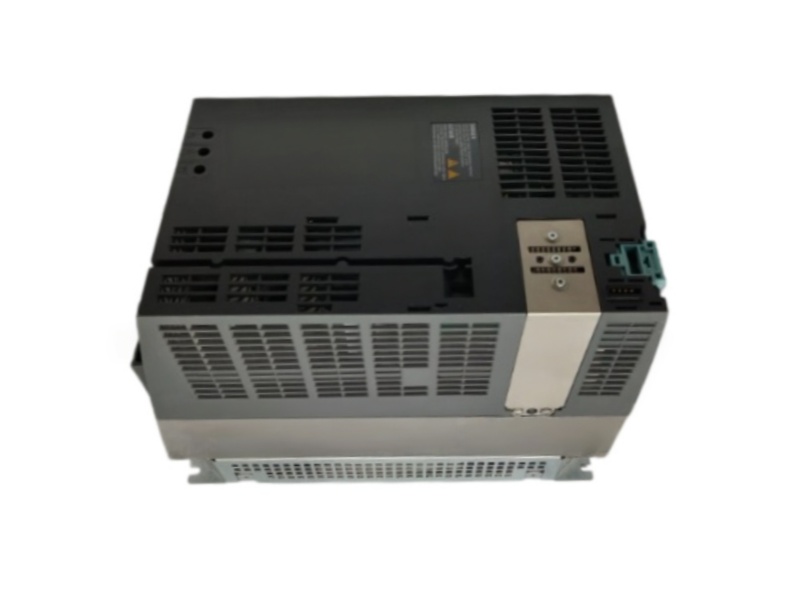

Siemens 6SL3224-0BE31-1AA0 SINAMICS G120 PM240 alternate view

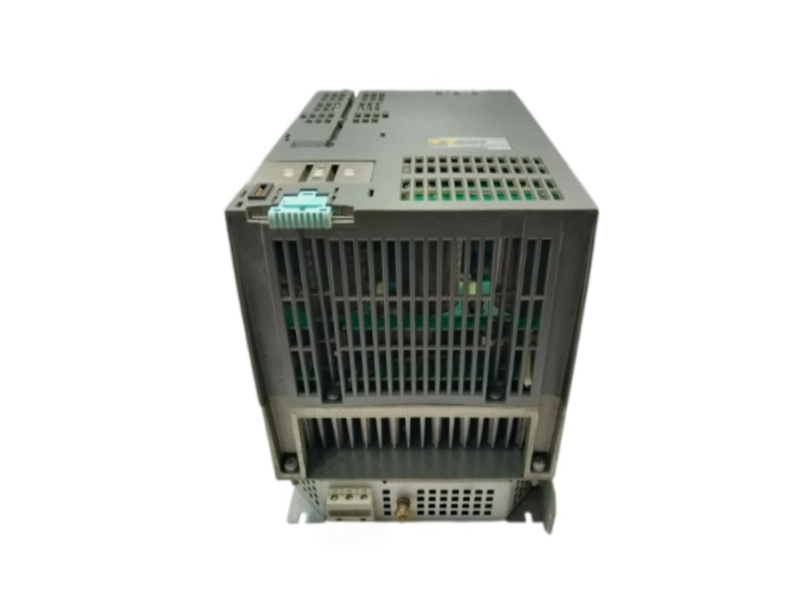

Siemens 6SL3224-0BE31-1AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE31-1AA0 SINAMICS G120 PM240 Power Module 11 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE31-1AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 11 kW high-overload duty, 15 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
11 kW · 26 A
LOW OVERLOAD
15 kW · 32 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSC · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE31-1AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044086
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
COMPACT CURRENT PROFILE

Eleven kilowatts HO inside the FSC mechanical envelope.

The filtered FSC article raises output to 26 A HO and 32 A LO without moving to the larger FSD housing.
EXACT ARTICLE · FSC
6SL3224-0BE31-1AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD11 kW26 A output
LOW OVERLOAD15 kW32 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT26 A
LO OUTPUT CURRENT32 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.40 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS334 × 189 × 185 mm
NET WEIGHT7.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSC
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044086
LIFECYCLE NOTICESiemens lists 6SL3224-0BE31-1AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
TERMINALS & CURRENT

Coordinate conductors before replacing the compact 11 kW stage.

Current, terminal range and reactor choice define the electrical fit of this FSC module.
ORDERING BOUNDARY

Current coordination comes before physical fit

Use the official input and output ratings to size upstream protection, conductors and terminals; appearance alone does not establish equivalence.

Power Module only · Control Unit and BOP not included
01

Record reactor use

Input current is 33 A with a line reactor and 39 A without one.

02

Confirm conductors

The official terminal range is 2.5–10 mm², AWG 14–8.

03

Match the output stage

Use 26 A HO or 32 A LO and preserve the overload cycle.

04

Verify the PE point

The FSC housing uses the documented M5 protective-earth connection.

POWER LOSS

Allow for 0.40 kW converter loss in thermal planning.

MOTOR CABLE

Observe 50 m shielded and 100 m unshielded maximum cable lengths.

FILTER STATUS

This AA0 article includes the integrated Class A filter.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE31-1AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What performance does 6SL3224-0BE31-1AA0 provide?

The filtered PM240 is rated 11 kW / 26 A for high-overload operation and 15 kW / 32 A for low-overload operation. It retains the FSC, IP20 format for 3 AC 380–480 V, 47–63 Hz.


02

How do I verify compatibility with an installed SINAMICS G120 drive?

Compare the exact AA0 order code, Control Unit interface, FSC footprint, 380–480 V line class, conductor range and motor current. The PM240 is supplied without the Control Unit or BOP.

03

What motor duties are appropriate for the 11 kW FSC module?

The 26 A HO rating suits cycles with higher short-duration overload demand, while 32 A LO supports suitable lower-overload machinery. Confirm acceleration time, peak torque and continuous motor current before selection.

04

Is 6SL3224-0BE31-1AA0 an active production item?

Siemens marks this exact reference as cancelled from 1 October 2019 and treats it as a spare part. Obtain a current inventory and lead-time confirmation before planning shutdown work.

05

Which parameters must match when replacing the 11 kW unit?

Check 26/32 A output, the selected HO or LO profile, Class A input filter, FSC dimensions, line-reactor condition, terminal size, cooling airflow, braking chopper and installed G120 Control Unit.

06

What documentation and order data should be requested with a quote?

Ask for the SINAMICS G120 PM240 hardware manual and model-specific 6SL3224-0BE31-1AA0 sheet. Provide quantity, delivery location, required date, serial/nameplate photo, motor specifications, reactor status and Control Unit details.
