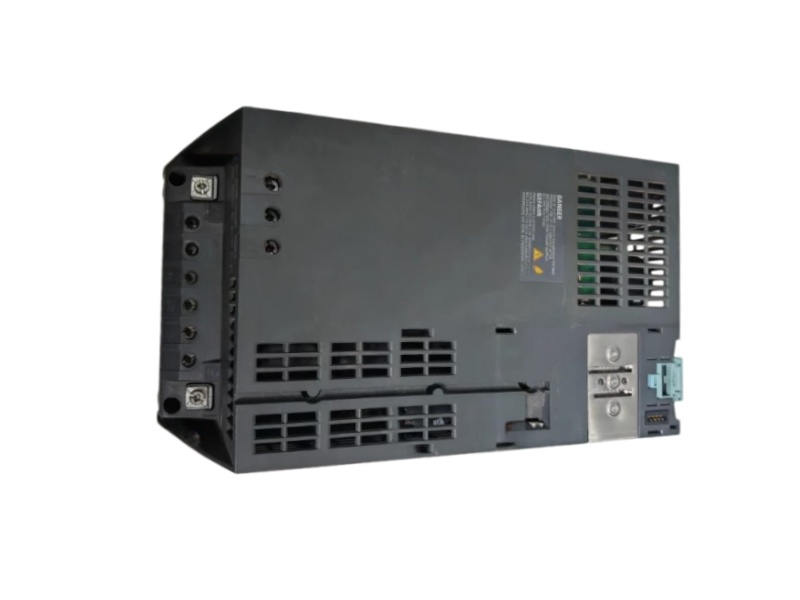

Siemens 6SL3224-0BE27-5UA0 SINAMICS G120 PM240 front view

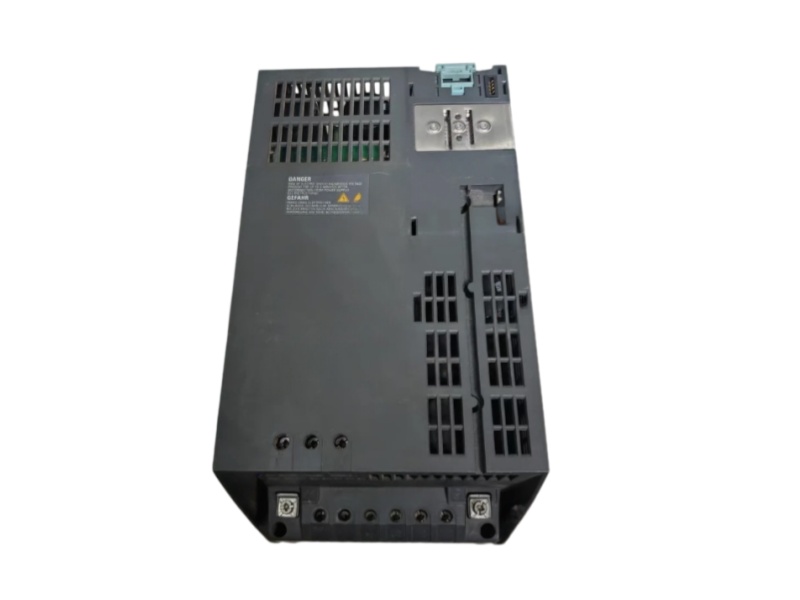

Siemens 6SL3224-0BE27-5UA0 SINAMICS G120 PM240 alternate view

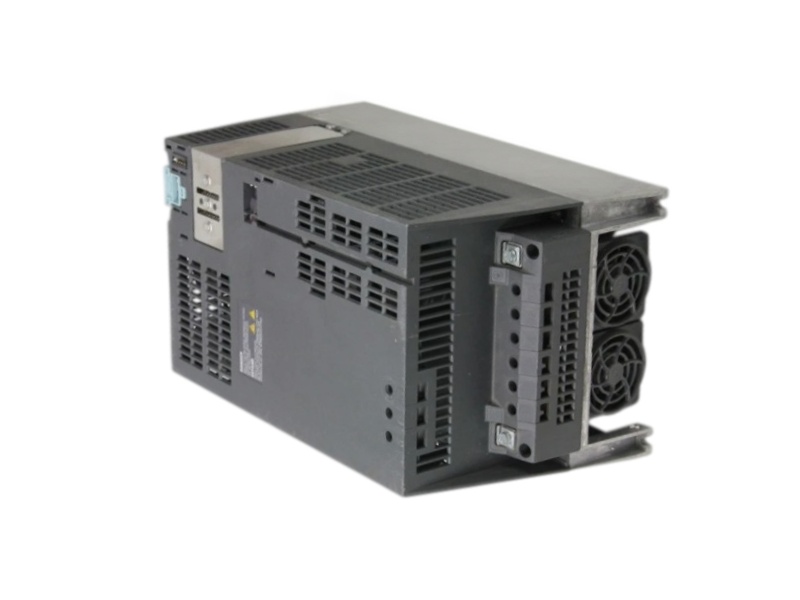

Siemens 6SL3224-0BE27-5UA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE27-5UA0 SINAMICS G120 PM240 Power Module 7.5 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE27-5UA0

An unfiltered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 11 kW high-overload duty, 11 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
7.5 kW · 19 A
LOW OVERLOAD
11 kW · 25 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSC · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE27-5UA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044085
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
UNFILTERED FSC PROFILE

The unfiltered 11 kW HO configuration in the PM240 range.

This UA0 article keeps the FSC duty ratings and braking chopper while leaving EMC filtering to the installation.
EXACT ARTICLE · FSC
6SL3224-0BE27-5UA0

Unfiltered PM240 Power Module with integrated braking chopper for compatible SINAMICS G120 Control Units; EMC filtering is installation-specific.

HIGH OVERLOAD7.5 kW19 A output
LOW OVERLOAD11 kW25 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERUnfiltered
ELECTRICAL
HO OUTPUT CURRENT19 A
LO OUTPUT CURRENT25 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.30 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS334 × 189 × 185 mm
NET WEIGHT7.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSC
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044085
LIFECYCLE NOTICESiemens lists 6SL3224-0BE27-5UA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
EMC & INSTALLATION PATH

Engineer the external EMC path before cabinet release.

The unfiltered UA0 variant requires a site-specific filter, cabling and grounding review.
ORDERING BOUNDARY

Unfiltered means the cabinet carries the EMC plan

Do not assume the UA0 and AA0 articles are interchangeable. Confirm external filter strategy, cable routing and plant emission requirements.

Power Module only · Control Unit and BOP not included
01

Review the supply

Use only the documented 3 AC 380–480 V, ±10%, 47–63 Hz mains class.

02

Size from duty current

Match 19 A HO or 25 A LO to the motor and overload cycle.

03

Define EMC hardware

Select any external filtering and shield termination from the installation standard.

04

Preserve the G120 scope

Verify Control Unit, BOP, braking resistor and terminal arrangement.

UNFILTERED CHECK

The Siemens data sheet records no integrated filter for this UA0 article.

MECHANICAL CHECK

The FSC envelope remains 334 × 189 × 185 mm at 7.0 kg.

THERMAL CHECK

Maintain 55 l/s internal cooling airflow.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE27-5UA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

Which electrical and mechanical ratings define 6SL3224-0BE27-5UA0?

This unfiltered FSC PM240 provides 7.5 kW / 19 A high-overload output or 11 kW / 25 A low-overload output from a 3 AC 380–480 V, 47–63 Hz supply. The enclosure is IP20.


02

What compatibility checks are essential for the UA0 version?

Confirm a compatible SINAMICS G120 Control Unit, FSC mounting, motor current and the site EMC plan. Because UA0 has no integrated filter, external filtering, grounding and shield termination must match the installation requirements.

03

Which applications can use this unfiltered PM240 module?

It is intended for variable-speed three-phase motor systems where cabinet-level EMC measures are engineered separately. Choose 19 A HO for demanding cycles or 25 A LO for lighter-overload loads.

04

Has Siemens discontinued 6SL3224-0BE27-5UA0?

Yes. Siemens shows cancellation effective 1 October 2019 and lists the article as a spare part. A quotation must confirm actual stock, condition, quantity and delivery timing.

05

Can the filtered 6SL3224-0BE27-5AA0 replace this UA0 module?

Not without an engineering review. Check the complete suffix, filter strategy, earth and shield arrangement, 7.5/11 kW duty, Control Unit, FSC envelope, braking components and cabinet clearances.

06

Which Siemens documents and inquiry details should accompany the request?

Use the PM240 hardware installation instructions plus the exact 6SL3224-0BE27-5UA0 data sheet. Send the requested quantity, ship-to country, needed date, nameplate, motor current, duty cycle, Control Unit and EMC arrangement for a precise quote.
