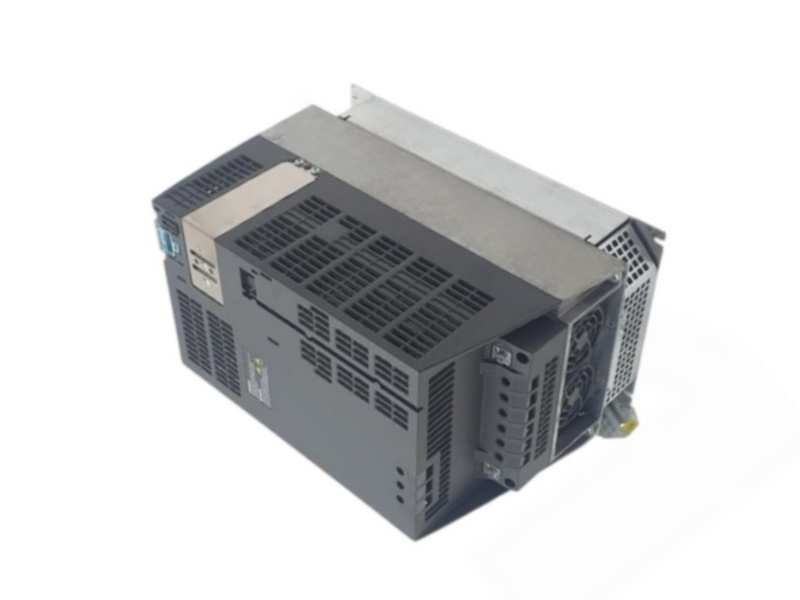

Siemens 6SL3224-0BE27-5AA0 SINAMICS G120 PM240 front view

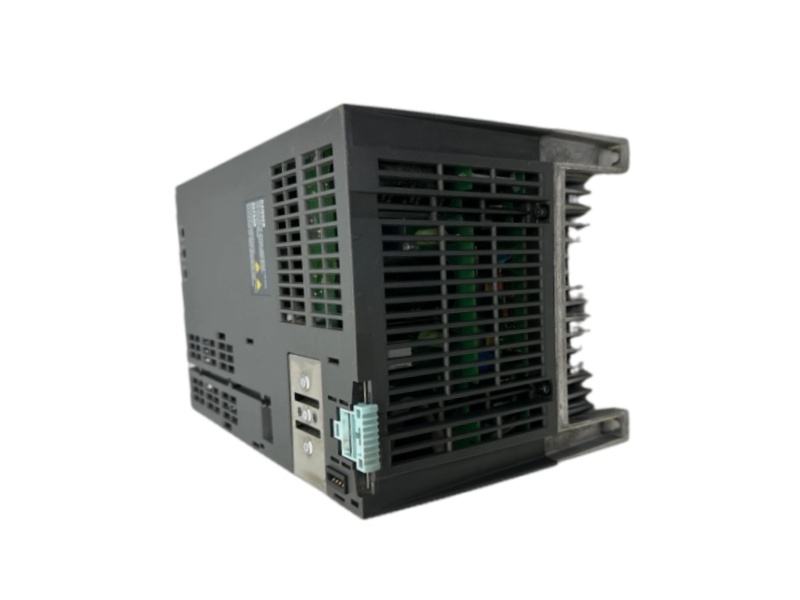

Siemens 6SL3224-0BE27-5AA0 SINAMICS G120 PM240 alternate view

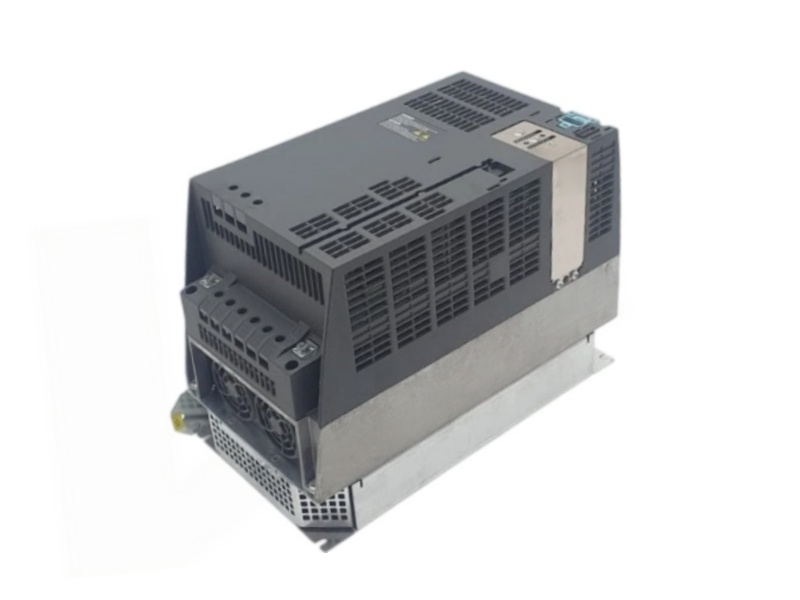

Siemens 6SL3224-0BE27-5AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE27-5AA0 SINAMICS G120 PM240 Power Module 7.5 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE27-5AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 11 kW high-overload duty, 11 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
7.5 kW · 19 A
LOW OVERLOAD
11 kW · 25 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSC · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE27-5AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044085
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FILTERED DUTY PROFILE

A filtered 11 kW HO step for established G120 systems.

The AA0 article combines the documented FSC power stage, Class A input filtering and integrated braking chopper.
EXACT ARTICLE · FSC
6SL3224-0BE27-5AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD7.5 kW19 A output
LOW OVERLOAD11 kW25 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT19 A
LO OUTPUT CURRENT25 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.30 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS334 × 189 × 185 mm
NET WEIGHT7.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSC
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044085
LIFECYCLE NOTICESiemens lists 6SL3224-0BE27-5AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
FILTER & DUTY MATCH

Confirm the filtered order code before load matching.

Four checks separate the AA0 filter requirement from the 7.5/11 kW duty selection.
ORDERING BOUNDARY

Filtered suffix is part of the order

The AA0 ending identifies the Class A filtered module. Check the nameplate before using the visually similar UA0 version.

Power Module only · Control Unit and BOP not included
01

Verify the mains class

Confirm 3 AC 380–480 V, ±10%, at 47–63 Hz.

02

Select HO or LO duty

Use 11 kW / 19 A HO or 11 kW / 25 A LO for the actual motor load.

03

Retain the EMC function

Keep the integrated Class A filter where the cabinet design depends on it.

04

Check FSC installation

Reserve the 334 × 189 × 185 mm envelope and required airflow.

INPUT CURRENT

Allow 26 A with a line reactor or 31.5 A without one.

CABLE LIMIT

Observe the documented 50 m shielded or 100 m unshielded motor-cable limits.

ORDER SCOPE

Control Unit and BOP are separate from this Power Module.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE27-5AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the rated outputs of 6SL3224-0BE27-5AA0?

The official ratings are 7.5 kW / 19 A in high-overload duty and 11 kW / 25 A in low-overload duty. The module is a filtered FSC PM240 for 3 AC 380–480 V, 47–63 Hz systems.


02

Can 6SL3224-0BE27-5AA0 work with my existing G120 setup?

Compatibility depends on the installed SINAMICS G120 Control Unit, the 380–480 V supply, FSC mounting, motor current and AA0 Class A filtering requirement. Confirm the nameplate and system configuration before ordering.

03

Where is this 7.5 kW HO power module normally applied?

It fits industrial variable-speed motor applications requiring 19 A HO performance or 25 A LO operation, with an integrated braking chopper. Select the rating from the real acceleration, braking and overload cycle.

04

What is the current supply status of 6SL3224-0BE27-5AA0?

Siemens identifies the exact article as a spare part after product cancellation effective 1 October 2019. Availability, unused condition and dispatch date must be confirmed against current inventory.

05

What replacement details prevent an incorrect 0BE27-5AA0 order?

Verify the full AA0 suffix, 7.5/11 kW duty, 19/25 A current, Class A filter, FSC size, 55 l/s cooling path, Control Unit and external wiring. The visually similar 6SL3224-0BE27-5UA0 is unfiltered.

06

Where can I get the manual, and what information is needed for pricing?

Request the Siemens PM240 hardware manual and the 6SL3224-0BE27-5AA0 data sheet. Include quantity, destination, required delivery date, nameplate images, motor data, selected HO or LO duty, installed Control Unit and panel photos with the inquiry.
