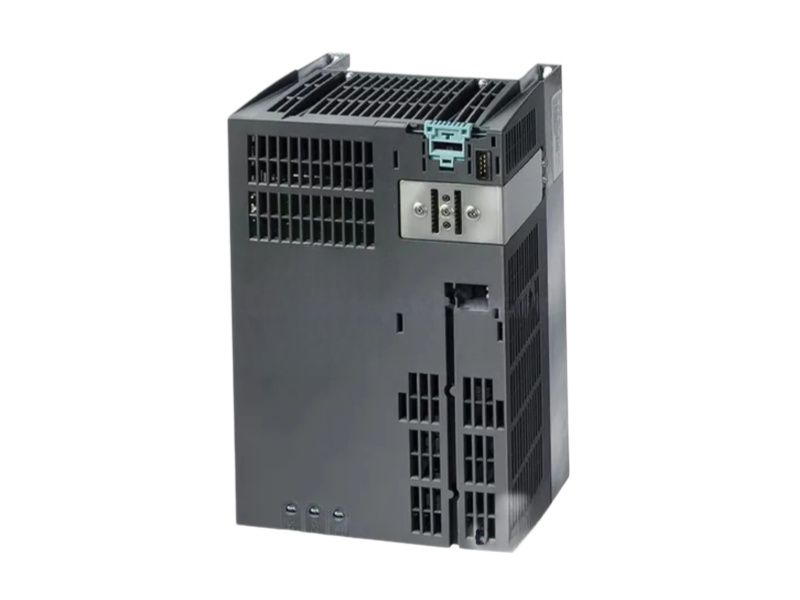

Siemens 6SL3224-0BE25-5AA0 SINAMICS G120 PM240 front view
Siemens 6SL3224-0BE25-5AA0 SINAMICS G120 PM240 alternate view

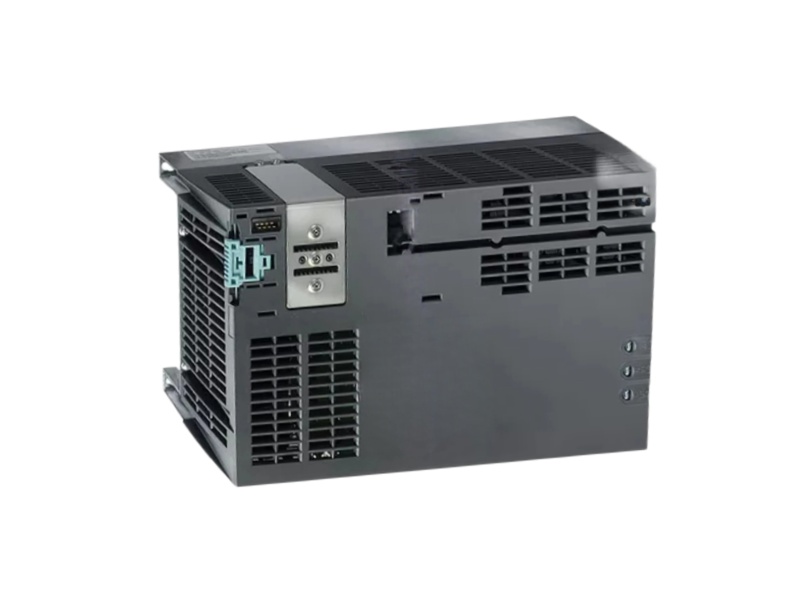

Siemens 6SL3224-0BE25-5AA0 SINAMICS G120 PM240 detail view

Siemens 6SL3224-0BE25-5AA0 SINAMICS G120 PM240 Power Module 5.5 kW


SIEMENS · SINAMICS G120 · PM240
OFFICIAL STATUS · SPARE PART
6SL3224-0BE25-5AA0

A filtered SINAMICS G120 PM240 Power Module for 3-phase 380–480 V systems, combining 5.5 kW high-overload duty, 7.5 kW low-overload duty and an integrated braking chopper.

HIGH OVERLOAD
5.5 kW · 13.2 A
LOW OVERLOAD
7.5 kW · 18 A
LINE INPUT
3 AC 380–480 V
FRAME / PROTECTION
FSC · IP20
Cancelled since 1 October 2019.
Exact article verification is required.
◆ One Year Warranty◆ Fast Delivery◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3224-0BE25-5AA0
Country of Origin Great Britain
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044085
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
POWER MODULE PROFILE

Two duty ratings. One exact PM240 reference.

Official Siemens data arranged as a performance spine and four functional data lanes.
EXACT ARTICLE · FSC
6SL3224-0BE25-5AA0

PM240 Power Module with integrated Class A filter and braking chopper for compatible SINAMICS G120 Control Units.

HIGH OVERLOAD5.5 kW13.2 A output
LOW OVERLOAD7.5 kW18 A output
LINE INPUT3 AC 380–480 V
FREQUENCY47–63 Hz
FILTERClass A
ELECTRICAL
HO OUTPUT CURRENT13.2 A
LO OUTPUT CURRENT18 A
LINE TOLERANCE+10% / −10%
POWER LOSS0.240 kW
OPERATING PROFILE
HO OVERLOAD200% for 3 s · 150% for 57 s
LO OVERLOAD150% for 3 s · 110% for 57 s
INTEGRATED FUNCTIONBraking chopper
MODULE SCOPEWithout Control Unit or BOP
MECHANICAL
COOLING AIRFLOW55 l/s
COOLINGInternal air cooling
DIMENSIONS334 × 189 × 185 mm
NET WEIGHT7.0 kg
ORDERING & FIT
ENCLOSUREIP20
FRAME SIZEFSC
COUNTRY OF ORIGINGreat Britain
COMMODITY CODE85044085
LIFECYCLE NOTICESiemens lists 6SL3224-0BE25-5AA0 as cancelled since 1 October 2019 and handled as a spare part. The official page does not name a universal successor; confirm the complete article number and installed drive configuration.
02
SELECTION & INSTALLATION

Match the electrical path before cabinet work.

Four connected checks reduce wrong-order risk for this discontinued filtered PM240 reference.
ORDERING BOUNDARY

The complete suffix defines the module.

The AA0 reference identifies the filtered version. A visually similar UA0 module is the unfiltered counterpart and should not be substituted without an engineering review.

Power Module only · Control Unit and BOP not included
01

Verify the line supply

Confirm 3 AC 380–480 V, ±10%, and 47–63 Hz.

02

Choose the duty basis

Match motor load to 5.5 kW HO or 7.5 kW LO ratings.

03

Check cabinet space

Allow for the 334 × 189 × 185 mm FSC enclosure and airflow.

04

Confirm system scope

Identify the installed Control Unit, BOP, braking resistor and wiring.

THERMAL CHECK

Observe Siemens duty-specific ambient limits and maintain 55 l/s cooling airflow.

FILTER CHECK

AA0 has the integrated Class A filter; confirm EMC requirements for the installation.

DOCUMENT CHECK

Use the PM240 hardware manual and the exact nameplate data before replacement.

03
PRODUCT FAQ

Product Questions and Answers for 6SL3224-0BE25-5AA0

Model-specific answers covering specifications, compatibility, applications, lifecycle, replacement, documentation and quotation.
01
SPECIFICATIONS

What are the key specifications of 6SL3224-0BE25-5AA0?

This filtered PM240 is rated 5.5 kW / 13.2 A for high-overload duty and 7.5 kW / 18 A for low-overload duty. It uses 3 AC 380–480 V, 47–63 Hz input in an FSC, IP20 enclosure.


02

Which SINAMICS G120 installations are compatible with this module?

It is a PM240 power section for compatible SINAMICS G120 Control Unit installations. Confirm the exact AA0 filtered suffix, FSC mechanical fit, 380–480 V mains class and the installed Control Unit; the Control Unit and BOP are not included.

03

What applications suit the 5.5 kW high-overload rating?

Use the HO rating for variable-speed motor duties that need the documented overload capability; the 7.5 kW LO rating suits loads with lighter overload demand. Motor current and duty cycle must remain within the Siemens ratings.

04

Is 6SL3224-0BE25-5AA0 discontinued, and can it still be supplied?

Siemens records product cancellation effective 1 October 2019 and handles this article as a spare part. Current stock, condition and delivery therefore require a live availability check.

05

What must be checked before replacing 6SL3224-0BE25-5AA0?

Match the complete order number, 5.5/7.5 kW duty basis, 13.2/18 A output, integrated Class A filter, FSC dimensions, braking chopper, Control Unit and cabinet wiring. An unfiltered UA0 version is not an automatic substitute.

06

Which manual is required, and what should I send for a quotation?

Use the SINAMICS G120 PM240 hardware installation manual and the model-specific Siemens data sheet. For a quote, send the full model, quantity, destination, required date, nameplate photo, motor rating, duty profile, Control Unit and cabinet details.
