Description:Siemens 6SL3224-0BE21-5UA0 is a Power Module
Product condition: New
Packing condition:Factory Packing.
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | SIEMENS |
| Item number | 6SL3224-0BE21-5UA0 |
| Country of Origin | Germany |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller – 20-year Siemens spare-part express

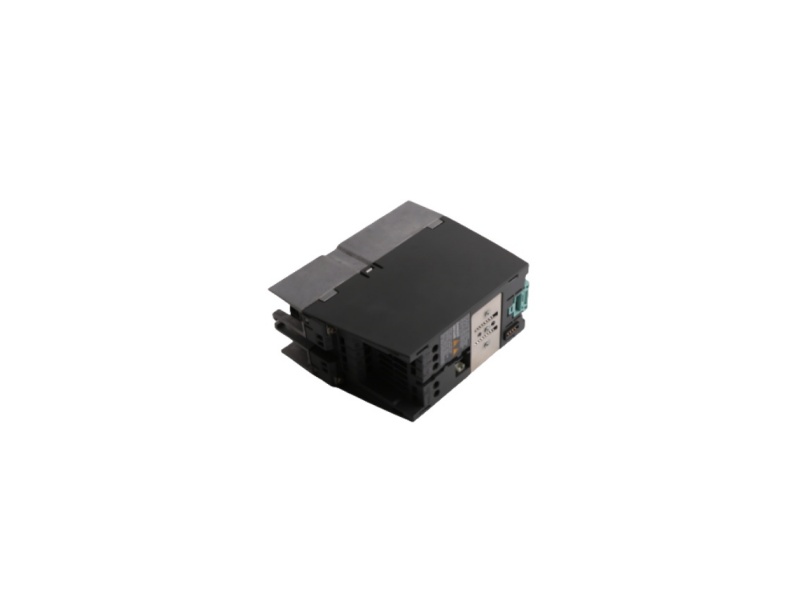

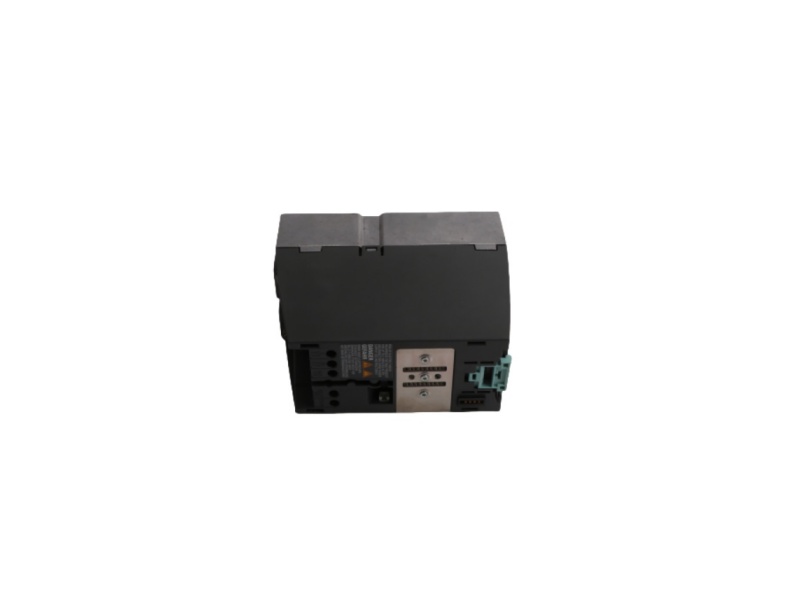

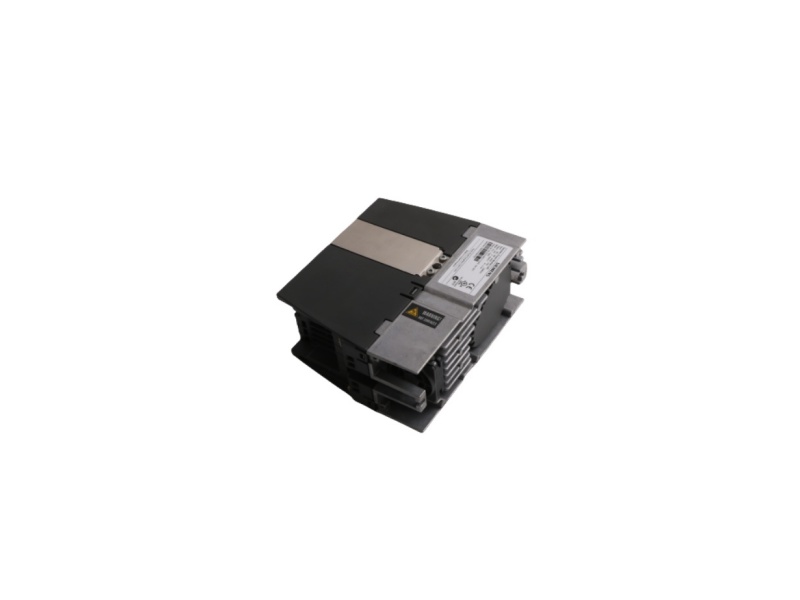

SIEMENS |6SL3224-0BE21-5UA0 | Power Module
Sales Manager May | WeChat: dcsfcs
u Overview of the 6SL3224-0BE21-5UA0
6SL3224-0BE21-5UA0 is the PM240 power module inside SINAMICS G120:
1.5 kW, 3-phase 380-480 V, built-in brake-chopper, FSA frame—perfect for pumps,
fans & conveyors where cabinet space is money.
u 6SL3224-0BE21-5UA0 Core specifications
|
Power |
1.5 kW (2.0 hp) |
150 % overload 60 s, 200 % 3 s |
|
Input |
3 AC 380 – 480 V ±10 % |
50 / 60 Hz, power factor 0.85 |
|
Output |
0 – 480 V, 4.1 A |
0 – 550 Hz, PWM 4 kHz |
|
Brake |
Built-in chopper |
max 1 kW into external 200 Ω resistor |
|
Loss |
60 W @ 4.1 A |
natural convection, no fan |
|
Temp |
–10 … +40 °C (HO) |
60 °C with derating |
|
Size / Wt |
73 × 173 × 145 mm / 1.3 kg |
side-by-side mounting, no gap |
|
Protection |
IP20 / UL open |
CE, cULus, RoHS |
u Same brand model
|
Part Number |
Power |
Frame |
Output Current |
Typical Use |
|
6SL3224-0BE13-7UA0 |
0.37 kW |
FSA |
1.3 A |
Small fans, mixers |
|
6SL3224-0BE15-5UA0 |
0.55 kW |
FSA |
1.7 A |
Conveyors, packers |
|
6SL3224-0BE17-5UA0 |
0.75 kW |
FSA |
2.2 A |
Pumps, rotary tables |
|
6SL3224-0BE21-1UA0 |
1.1 kW |
FSA |
3.1 A |
Lifts, blenders |
|
6SL3224-0BE21-5UA0 |
1.5 kW |
FSA |
4.1 A |
Pumps, fans, belts |
|
6SL3224-0BE22-2UA0 |
2.2 kW |
FSB |
5.9 A |
Belt drives, spindles |
