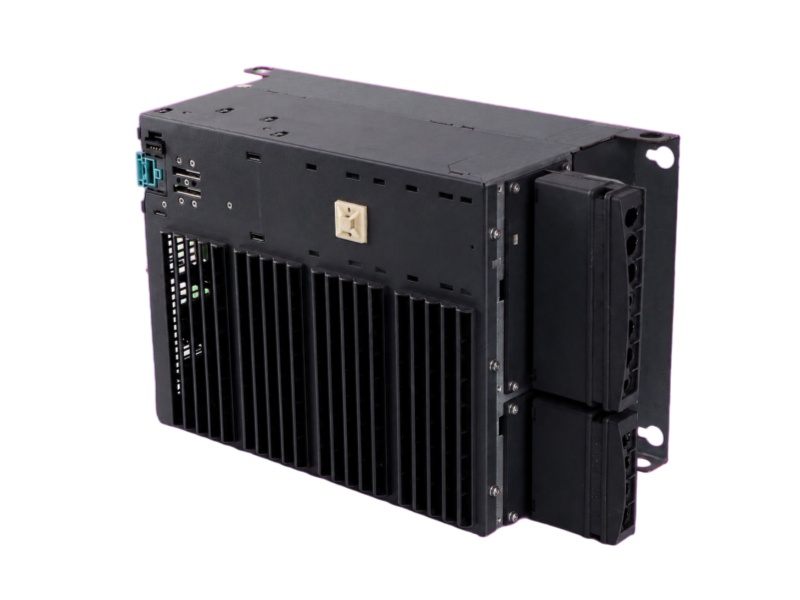

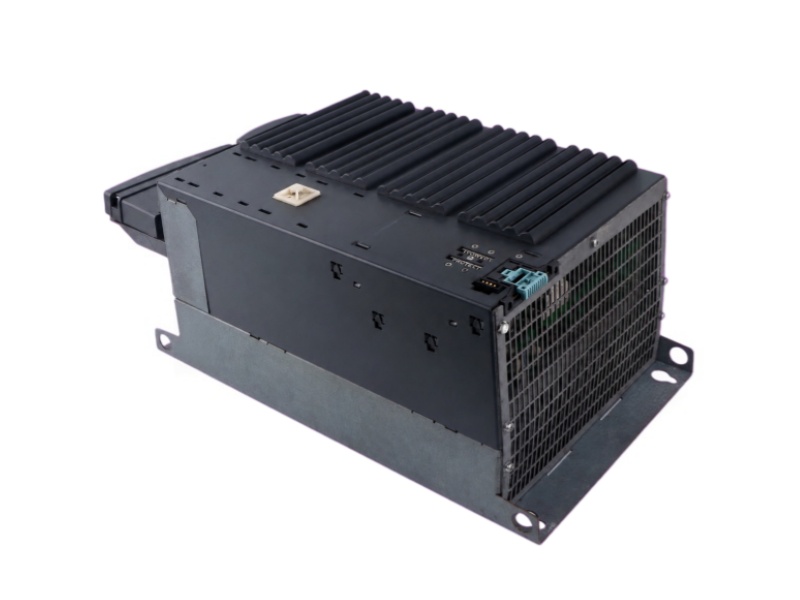

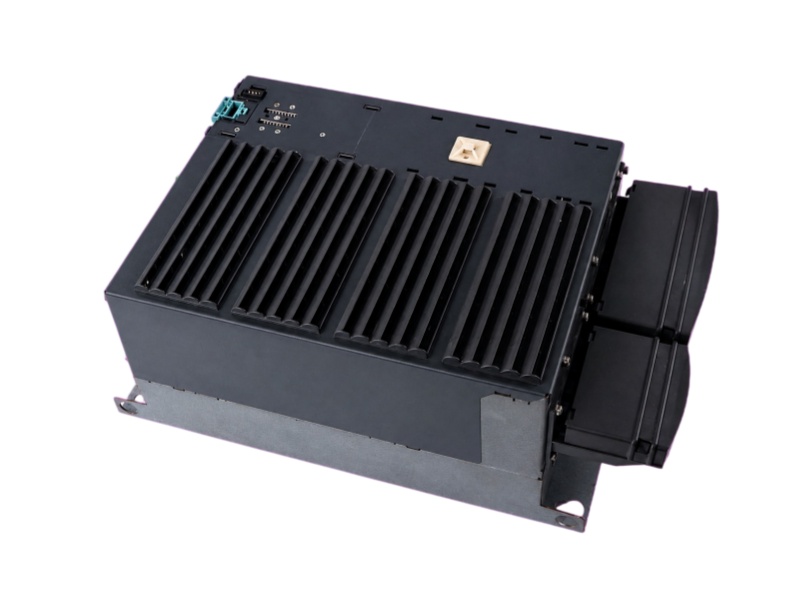

Siemens 6SL3210-1SE27-5UA0 SINAMICS S120 PM340 Power Module 37 kW

Siemens · Drive Technology
6SL3210-1SE27-5UA0
SINAMICS S120 PM340 Power Module
Blocksize FSE · internal air cooling
Replacement brief
A 37 kW drive module with an exact-order boundary.
For quotation, send the complete order number, motor rating, installed Control Unit, cabinet photo and destination. The UA0 suffix must be verified before any alternative is considered.
ORDER
1 piece MOQ
STATUS
Siemens spare part
RESPONSE
Within 1 hour
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-1SE27-5UA0
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · Drive snapshot
37 kW.
Unfiltered.
Built for S120.
6SL3210-1SE27-5UA0 is a SINAMICS S120 PM340 blocksize Power Module for 3-phase 380–480 V systems. It delivers the rated drive output in an FSE, internally cooled format.
LINE
INPUT
3AC 380–480 V
±10%, 50/60 Hz
RATED OUTPUT
75 A
37 kW at rated current
HEAVY-DUTY BASIS
65 A
30 kW base-load rating
FRAME / COOLING
FSE
Internal air cooling
Lifecycle note: Siemens lists this exact article as a spare part, with product cancellation effective 1 October 2019. Full-suffix verification is essential.
S6 CURRENT (40%)
98 A
PEAK CURRENT
124 A
PULSE FREQUENCY
4 kHz
POWER LOSS
0.99 kW
COOLING AIR
0.022 m³/s
SOUND AT 1 M
< 60 dB(A)
24 V CONTROL SUPPLY
1.0 A
NET WEIGHT
19.8 kg
02 · Replacement planning
Four checks before the cabinet door closes.
A compact procurement and engineering path for this exact PM340 configuration.
01
Confirm the exact suffix
The UA0 ordering reference identifies the PM340 version without the integrated line filter. Do not substitute the visually similar AA0 version without checking the EMC design.
02
Check the load profile
Match the application to 75 A rated current or the 65 A heavy-duty basis, then confirm the stated S6 and peak-current requirements.
03
Plan the cabinet
Allow for FSE mounting, internal air cooling and the 0.022 m³/s airflow requirement. Keep the documented clearances and thermal conditions.
04
Verify system accessories
Confirm the line reactor, fuses, braking resistor and Control Unit arrangement for the installed SINAMICS S120 system before replacement.
03 · Product questions
What international buyers usually verify first.
Exact-model answers · no generic substitutions
01
Does 6SL3210-1SE27-5UA0 include an integrated line filter?
No. Siemens lists 6SL3210-1SE27-5UA0 as the standard PM340 version; the paired 6SL3210-1SE27-5AA0 is the version with an integrated line filter. Confirm the existing EMC arrangement before ordering.
02
Which current rating should be used when checking the motor application?
Use 75 A and 37 kW for the rated-current basis. For the heavy-duty basis, Siemens states 65 A and 30 kW, with 98 A for S6 operation at 40% and 124 A peak current.
03
What should a buyer verify when replacing this discontinued module?
Siemens identifies the article as a spare part and lists product cancellation effective 1 October 2019. Confirm the full suffix, FSE frame, Control Unit compatibility, installed line components and cooling conditions.
