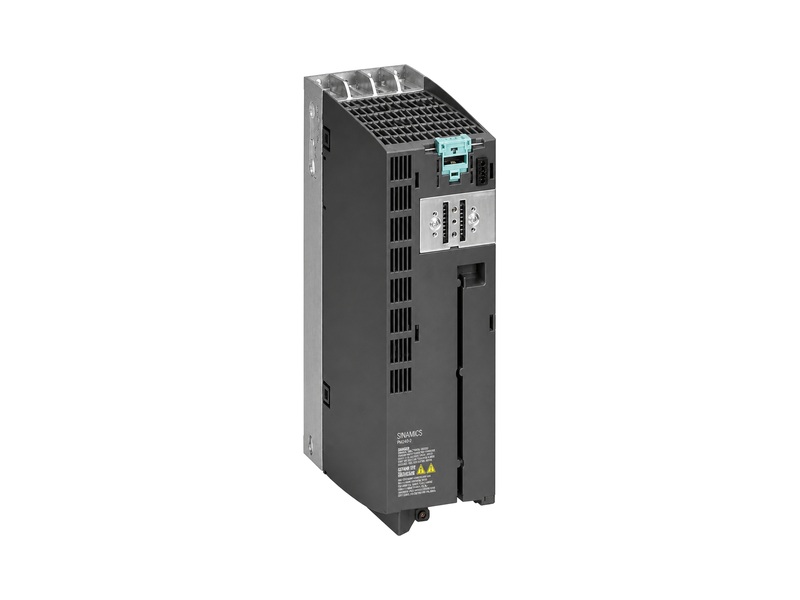

Siemens 6SL3210-1PE16-1AL1 Power Module PM240-2 product image 1

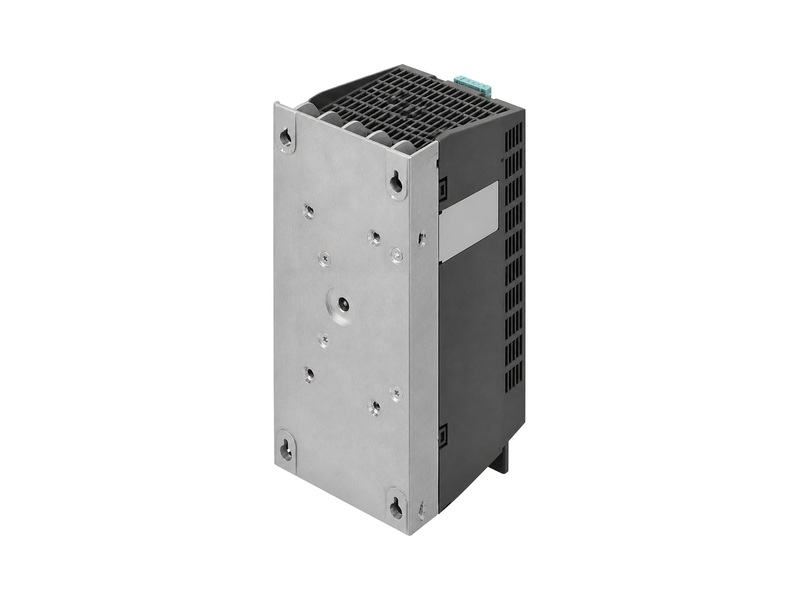

Siemens 6SL3210-1PE16-1AL1 Power Module PM240-2 product image 2
Siemens 6SL3210-1PE16-1AL1 Power Module PM240-2 product image 3

Siemens 6SL3210-1PE16-1AL1 SINAMICS G120 Power Module PM240-2

Product familySINAMICS PM240-2
Minimum order1 Piece
Applicable rating2.2 kW low overload / 1.5 kW high overload
Product statusActive Product
20 years of automation industry experience  ·  Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3210-1PE16-1AL1
Country of Origin Great Britain
Lead Time 3 days
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6SL3210-1PE16-1AL1
Power Module PM240-2

Match every character of the complete ordering number, including the suffix. A visually similar item or nearby SINAMICS number should not be treated as interchangeable unless the full ordering number and application are confirmed.

Exact-order technical data

6SL3210-1PE16-1AL1 Technical Data

Input supply 3 AC 380 ... 480 V ±10 %, 47 ... 63 Hz
Power rating 2.2 kW low overload / 1.5 kW high overload
Rated input current LO 7.70 A / HO 6.10 A
Rated output current LO 5.90 A / HO 4.10 A
Output-frequency range vector control 0 ... 200 Hz; V/f control 0 ... 550 Hz
Dimensions and weight 196 mm × 73 mm × 165 mm (H × W × D); net weight 1.50 kg (3.31 lb)
Model-specific application profile

Power-stage configuration profile

6SL3210-1PE16-1AL1 identifies the supplied PM240-2 power-stage configuration for SINAMICS G120.

Power-stage role PM240-2 power module for SINAMICS G120.
EMC / braking variant Integrated Class A filter and braking chopper
Supplied control scope Without Control Unit or operator panel
PLC Autocontroller service

Commercial Confirmation

Industrial automation inspection and quotation support
Price and availability

Confirmed for the requested quantity in the written quotation.

Supplied-item condition

Identified in the quotation and order documents before purchase.

Warranty terms

Stated in the written quotation for the item being supplied.

Lead time and shipping

Confirmed by quantity, destination and required date.

Quote preparation

Prepare a precise quotation

Send the four details shown here to ab@mooreplc.com.

01Complete item number
02Quantity
03Destination
04Required date
6SL3210-1PE16-1AL1 FAQ
01

What maximum output current is listed for 6SL3210-1PE16-1AL1?

8.90 A.

02

Which pulse frequency is specified?

4 kHz.

03

What enclosure and frame classification apply?

IP20 / UL open type; FSA.

04

What cooling method and airflow requirement are stated?

Internal air cooling; 0.005 m³/s (0.177 ft³/s).

05

Which LO, HO and altitude limits are listed?

LO -10 ... 40 °C (14 ... 104 °F); HO -10 ... 50 °C (14 ... 122 °F); installation altitude 1,000 m (3,280.84 ft).

06

What loss and acoustic values are published?

power loss 0.10 kW; sound pressure 72 dB.
