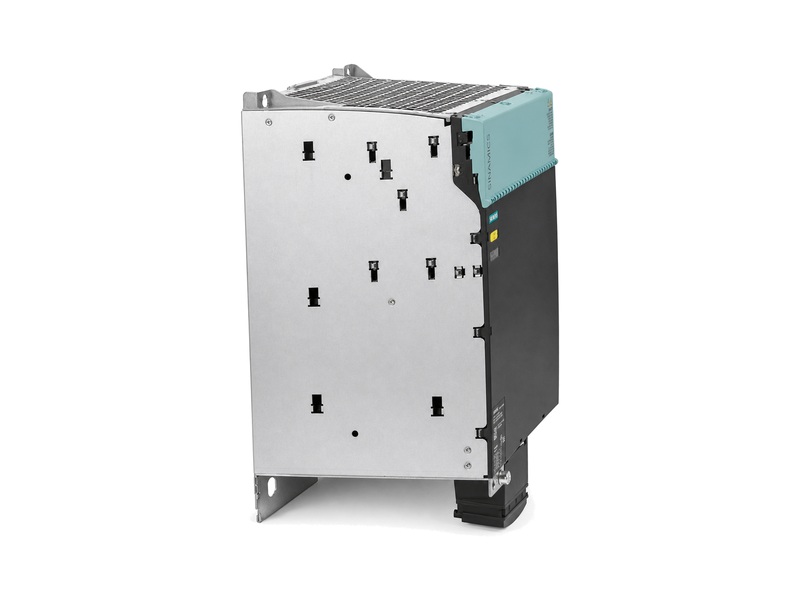

Siemens 6SL3131-7TE31-2AA3 Active Line Module product image 1

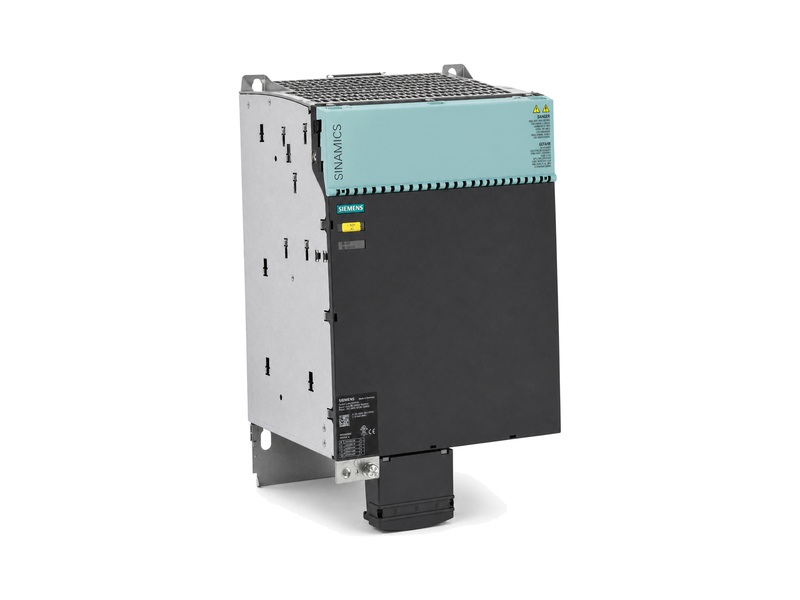

Siemens 6SL3131-7TE31-2AA3 Active Line Module product image 2
Siemens 6SL3131-7TE31-2AA3 Active Line Module product image 3

Siemens 6SL3131-7TE31-2AA3 SINAMICS S120 Active Line Module

Product familySINAMICS S120
Minimum order1 Piece
Applicable rating120 kW; 200 A at 600 V DC
Product statusProduct cancellation effective 1 October 2021; supplied as a spare part
20 years of automation industry experience  ·  Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3131-7TE31-2AA3
Country of Origin Germany
Lead Time 1 day
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044095
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6SL3131-7TE31-2AA3
Active Line Module

Match every character of the complete ordering number, including the suffix. A visually similar item or nearby SINAMICS number should not be treated as interchangeable unless the full ordering number and application are confirmed.

Exact-order technical data

6SL3131-7TE31-2AA3 Technical Data

Input supply 3 AC 342 ... 528 V, 47 ... 63 Hz
Rated infeed power 120 kW
Rated regenerative power 120 kW
DC-link current at 600 V 200 A
Line-side current 182 A at 400 V AC; maximum 267 A
Dimensions and weight 380 mm × 300 mm × 226 mm (H × W × D); net weight 30.7 kg (67.68 lb)
Model-specific application profile

Active Line Module configuration profile

For 6SL3131-7TE31-2AA3, the suffix defines the module function, included connection scope and thermal construction.

Module function Active Line infeed and regenerative-feedback module
Included scope DRIVE-CLiQ cable included
Thermal / lifecycle scope External air cooling; Product cancellation effective 1 October 2021; supplied as a spare part
PLC Autocontroller service

Commercial Confirmation

Industrial automation inspection and quotation support
Price and availability

Confirmed for the requested quantity in the written quotation.

Supplied-item condition

Identified in the quotation and order documents before purchase.

Warranty terms

Stated in the written quotation for the item being supplied.

Lead time and shipping

Confirmed by quantity, destination and required date.

Quote preparation

Prepare a precise quotation

Send the four details shown here to ab@mooreplc.com.

01Complete item number
02Quantity
03Destination
04Required date
6SL3131-7TE31-2AA3 FAQ
01

What short-circuit strength is listed for 6SL3131-7TE31-2AA3?

65 kA.

02

What cooling-air requirement is specified?

0.144 m³/s (5.085 ft³/s).

03

Which operating ambient range is published?

0 ... 40 °C (32 ... 104 °F).

04

What installation altitude is listed?

1,000 m (3,280.84 ft).

05

What power-loss value is published?

2.26 kW.

06

Which acoustic, enclosure and construction values apply?

sound pressure 75 dB; IP20 / UL open type; Booksize.
