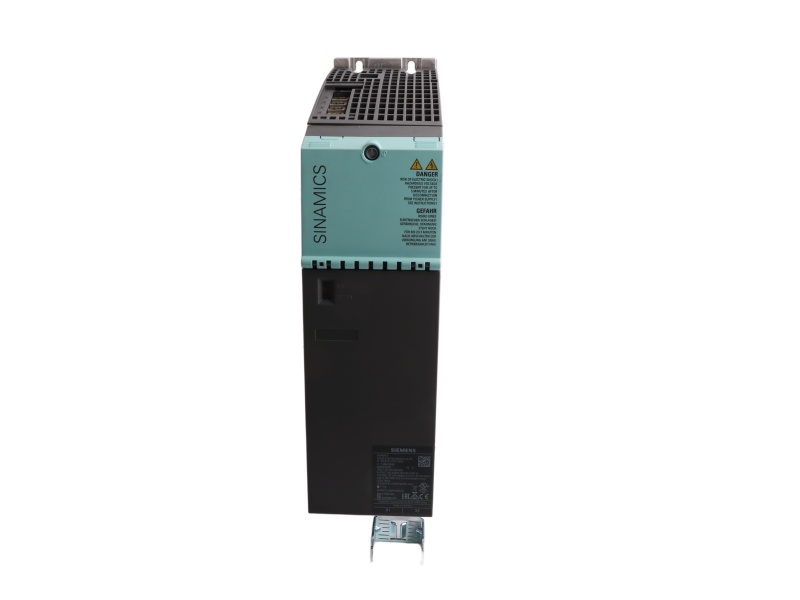

Siemens 6SL3120-2TE21-8AC0 front view

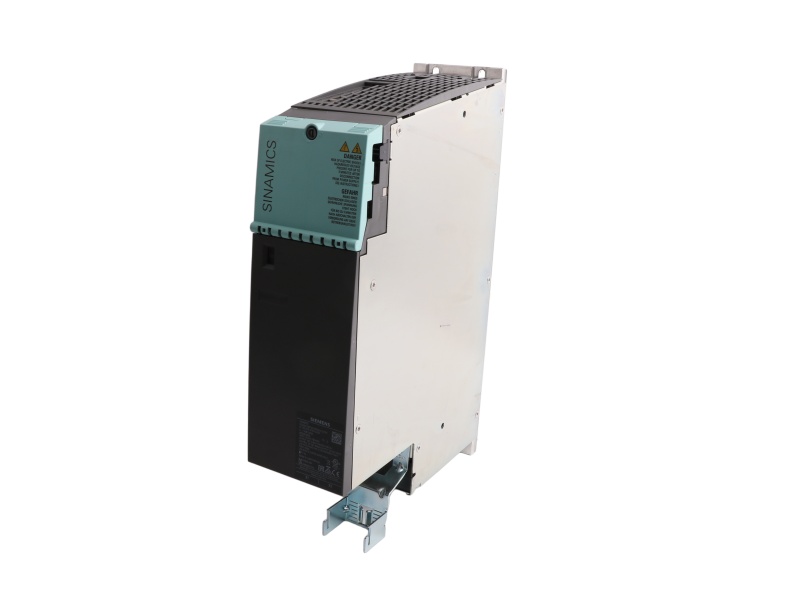

Siemens 6SL3120-2TE21-8AC0 side view
Siemens 6SL3120-2TE21-8AC0 detail view

Siemens 6SL3120-2TE21-8AC0 SINAMICS S120 Double Motor Module 18 A C-Type

6SL3120-2TE21-8AC0 — Siemens identifies 6SL3120-2TE21-8AC0 as a booksize C-type Double Motor Module with 600 V DC input and two 18 A, 400 V three-phase outputs.
Product type
Double Motor Module
Input
600 V DC
Outputs
2 × 3 AC 400 V
Rated current
2 × 18 A
Construction
Booksize C-Type
Lifecycle
PM300 Active Product
Provide both 18 A axis loads, duty-cycle details and the C-type position for quotation review.
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3120-2TE21-8AC0
Country of Origin Germany
Lead Time 15 working days ex works (verify region and order date)
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SINAMICS · S120
2 × 18 A Double Motor Module
Siemens identifies 6SL3120-2TE21-8AC0 as a booksize C-type Double Motor Module with 600 V DC input and two 18 A, 400 V three-phase outputs.
PM300 Active ProductSiemens order no. 6SL3120-2TE21-8AC0
Product type
Double Motor Module
Input
600 V DC
Outputs
2 × 3 AC 400 V
Rated current
2 × 18 A
Construction
Booksize C-Type
Lifecycle
PM300 Active Product
PRODUCT INFORMATION
Dual-axis 18 A C-type module data
Base-load current
2 × 15.3 A
S6 current
2 × 24 A
Cooling
Internal air cooling
Net weight
8.1 kg
Official record basis
The Siemens record states optimized pulse patterns, extended Safety Integrated and an included DRIVE-CLiQ cable for this C-type module.
Configuration boundary
The per-axis current values are preserved as two-channel data and are not combined into a single 36 A rating.
SELECTION CHECKPOINTS
Two-axis current and format checkpoints
Per-axis rating
Match each motor channel to the 18 A rated output.
Duty requirement
Compare the application with the stated 2 × 24 A S6 current.
C-type format
Verify the booksize C-type mechanical arrangement.
OFFICIAL RECORD SCOPE
Per-axis scope for the dual 18 A module
Manufacturer source
Siemens official product record
Record scope
Exact double-module order number
Lifecycle handling
PM300 wording retained
Unstated data
Per-axis values not merged
The base-load and S6 values are stated per output channel; overview weight is kept separate from detailed-sheet values.
ORDERING HANDOVER
Application information for quotation
Send both axis loads, duty-cycle requirements and the installed C-type booksize layout.
Order details to provide
✓ Exact 6SL3120-2TE21-8AC0 nameplate
✓ Two-axis load data
✓ Destination and required date
PRODUCT FAQ
Questions specific to 6SL3120-2TE21-8AC0
What base-load current is listed?
2 × 15.3 A.
What S6 current is stated?
2 × 24 A.
How is the 8.1 kg value described?
It is the net weight listed in the checked Siemens record.
