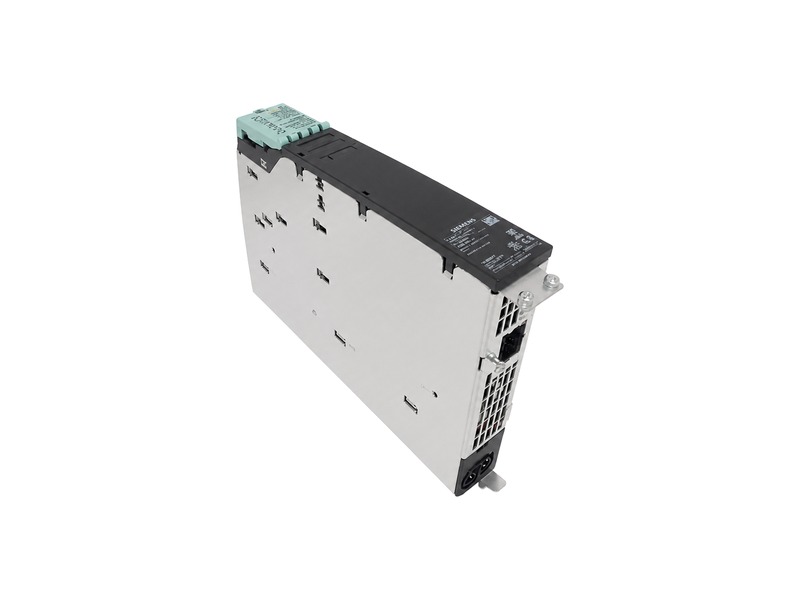

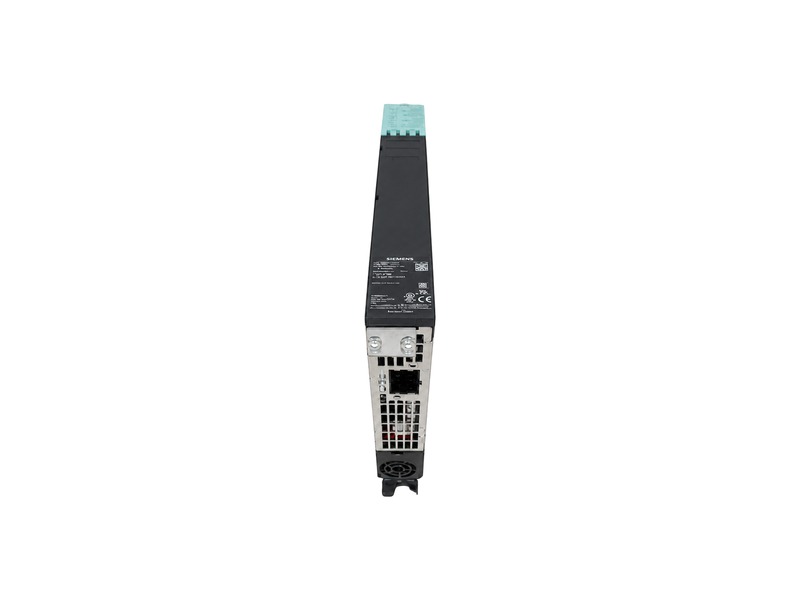

6SL3120-2TE15-0AA4 is the SINAMICS S120 booksize Double Motor Module with 600 V DC input, 400 V three-phase AC output, 5 A per motor channel, internal air cooling and extended Safety Integrated support.
Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
| Manufacturer | Siemens AG |
| Item number | 6SL3120-2TE15-0AA4 |
| Country of Origin | Germany |
| Lead Time | On request (verify region and order date) |
| After-Sales Support | Siemens spare-part delivery, repair and exchange services |
| HS Code / Commodity code | 85044085 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
SINAMICS S120 booksize Double Motor Module with 600 V DC input, 400 V three-phase AC output, 5 A per motor channel, internal air cooling and extended Safety Integrated support.
Confirm the exact AA4 hardware version, DC link, current rating, pulse-pattern requirements, Safety Integrated functions, DRIVE-CLiQ cable and the Siemens replacement-kit guidance.
Record the complete S120 topology, motor data, encoder data, safety parameters, DC-link arrangement, firmware and DRIVE-CLiQ wiring before replacement.
This Double Motor Module provides two 5 A channels.
Siemens specifies internal air cooling.
Yes. The official product description includes a DRIVE-CLiQ cable.
Share the model, fieldbus and safety requirements for a fast compatibility check.
6AU1410-2AD00-0AA0 is the SIMOTION D410-2 DP/PN programmable motion controller with five digital inputs, eight configurable DI/DQ, integrated safety I/O, one DRIVE-CLiQ interface, PROFIBUS and two PROFINET ports. Digital inputs 5 DI Configurable I/O 8 DI/DQ Safety I/O 3 F-DI · 1 F-DO DRIVE-CLiQ 1 PROFIBUS 1 PROFINET 2 ports Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AU1432-2AA00-0AA0 is the SIMOTION CX32-2 controller extension for increasing the number of controlled drives on a SIMOTION D4x5-2 system, with six digital inputs, four configurable DI/DQ and four DRIVE-CLiQ interfaces. Product type Controller extension Host system SIMOTION D4x5-2 Digital inputs 6 DI Configurable I/O 4 DI/DQ DRIVE-CLiQ 4 Net weight 2.6 kg Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AU1435-0AA00-0AA0 is the SIMOTION D435 first-generation drive-based programmable motion controller. Siemens support documentation identifies it as spare-compatible with the later 6AU1435-0AA00-0AA1 hardware revision. Controller SIMOTION D435 Performance Standard Generation First generation Compatibility Check 0AA1 revision Engineering SCOUT project Status End of Product Lifecycle Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AU1435-0AA00-0AA1 is the SIMOTION D435 first-generation drive-based programmable motion controller. Siemens support documentation describes spare compatibility with the earlier 6AU1435-0AA00-0AA0 revision under specified software conditions. Controller SIMOTION D435 Performance Standard Hardware 0AA1 revision Compatibility Check 0AA0 project Engineering SCOUT project Status Spare Part Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AU1435-2AA00-0AA0 is the SIMOTION D435-2 DP drive-based programmable motion controller with standard performance, 12 digital inputs, 16 configurable DI/DQ, six DRIVE-CLiQ interfaces, two PROFIBUS interfaces and three Ethernet interfaces. Digital inputs 12 DI Configurable I/O 16 DI/DQ DRIVE-CLiQ 6 PROFIBUS 2 Ethernet 3 USB 2 Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AU1445-0AA00-0AA1 is the SIMOTION D445-1 high-performance drive-based programmable motion controller with eight digital inputs, eight configurable DI/DQ, six DRIVE-CLiQ interfaces, two PROFIBUS, two Ethernet and two USB interfaces. Digital inputs 8 DI Configurable I/O 8 DI/DQ DRIVE-CLiQ 6 PROFIBUS 2 Ethernet / USB 2 / 2 Performance High Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6AU1455-2AD00-0AA0 is the SIMOTION D455-2 DP/PN ultra-high-performance drive-based programmable motion controller with 12 digital inputs, 16 configurable DI/DQ, six DRIVE-CLiQ, PROFIBUS, PROFINET, Ethernet and USB connectivity. Digital inputs 12 DI Configurable I/O 16 DI/DQ DRIVE-CLiQ 6 PROFIBUS 2 PROFINET 3 ports Ethernet / USB 2 / 2 Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
Application: Isolated SM322 module with thirty-two 24 VDC transistor outputs. Product familySIMATIC S7-300 Minimum order1 Piece Applicable ratings32 DO; 0.5 A per channel LifecyclePM410: Product cancellation since 2025-10-01 20 years of automation industry experience · Response within 24 hours
Details
