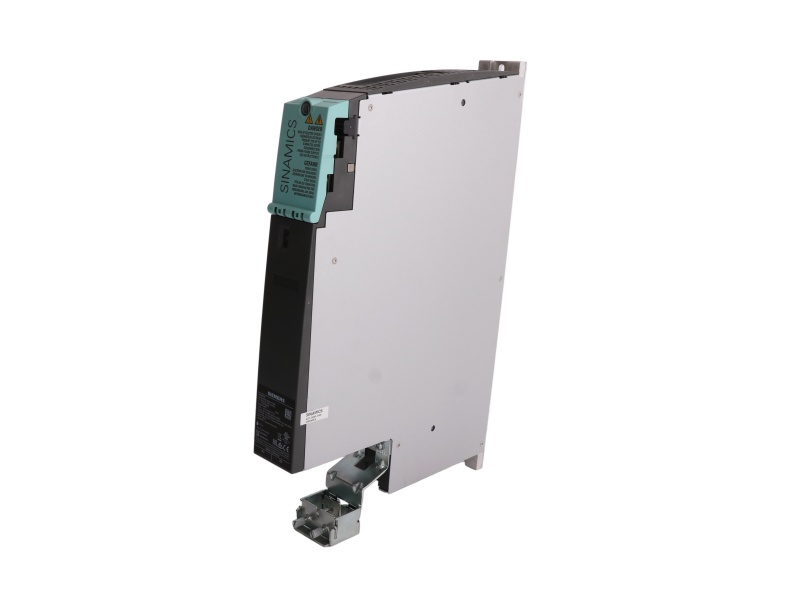

Siemens 6SL3120-2TE13-0AD0 front view

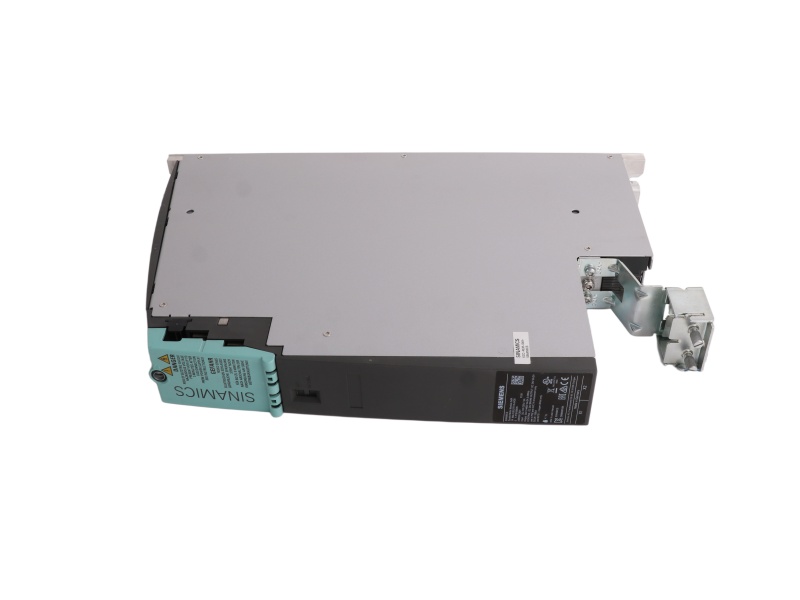

Siemens 6SL3120-2TE13-0AD0 side view
Siemens 6SL3120-2TE13-0AD0 detail view

Siemens 6SL3120-2TE13-0AD0 SINAMICS S120 Double Motor Module 3 A D-Type

6SL3120-2TE13-0AD0 — Siemens identifies 6SL3120-2TE13-0AD0 as a booksize D-type Double Motor Module with 600 V DC input and two 3 A, 400 V three-phase outputs.
Product type
Double Motor Module
Input
600 V DC
Outputs
2 × 3 AC 400 V
Rated current
2 × 3 A
Construction
Booksize D-Type
Lifecycle
PM300 Active Product
Send both 3 A axis loads and the D-type installation position for a dual-axis quotation check.
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3120-2TE13-0AD0
Country of Origin Germany
Lead Time 15 working days ex works (verify region and order date)
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SINAMICS · S120
2 × 3 A Double Motor Module
Siemens identifies 6SL3120-2TE13-0AD0 as a booksize D-type Double Motor Module with 600 V DC input and two 3 A, 400 V three-phase outputs.
PM300 Active ProductSiemens order no. 6SL3120-2TE13-0AD0
Product type
Double Motor Module
Input
600 V DC
Outputs
2 × 3 AC 400 V
Rated current
2 × 3 A
Construction
Booksize D-Type
Lifecycle
PM300 Active Product
PRODUCT INFORMATION
Dual-axis 3 A D-type operating data
Type rating
2 × 1.6 kW
Base-load current
2 × 2.6 A
Maximum current
2 × 9 A
Cooling
Internal air cooling
Official record basis
The checked Siemens record identifies optimized pulse patterns, extended Safety Integrated and an included DRIVE-CLiQ cable.
Configuration boundary
This is a Double Motor Module; single-axis S120 ratings are not substituted for its two-channel output data.
SELECTION CHECKPOINTS
Dual-axis selection checkpoints
Two output channels
Confirm that the application needs two 3 A outputs.
Axis loading
Compare each axis with the 2.6 A base-load value.
Peak current
Check the stated 9 A maximum per output channel.
OFFICIAL RECORD SCOPE
Two-channel limits for the 3 A D-type module
Manufacturer source
Siemens official product record
Record scope
6SL3120-2TE13-0AD0
Lifecycle handling
PM300 wording retained
Unstated data
Single-module data excluded
Siemens specifies separate values for both motor outputs; the two channels are preserved instead of being combined into one rating.
ORDERING HANDOVER
Application information for quotation
Provide both motor currents, the two-axis topology and the D-type booksize installation details.
Order details to provide
✓ Exact Double Motor Module MLFB
✓ Both axis current requirements
✓ Destination and required date
PRODUCT FAQ
Questions specific to 6SL3120-2TE13-0AD0
How many outputs are provided?
Two motor outputs are identified.
What base-load current is stated?
2 × 2.6 A.
What maximum current is listed?
2 × 9 A.
