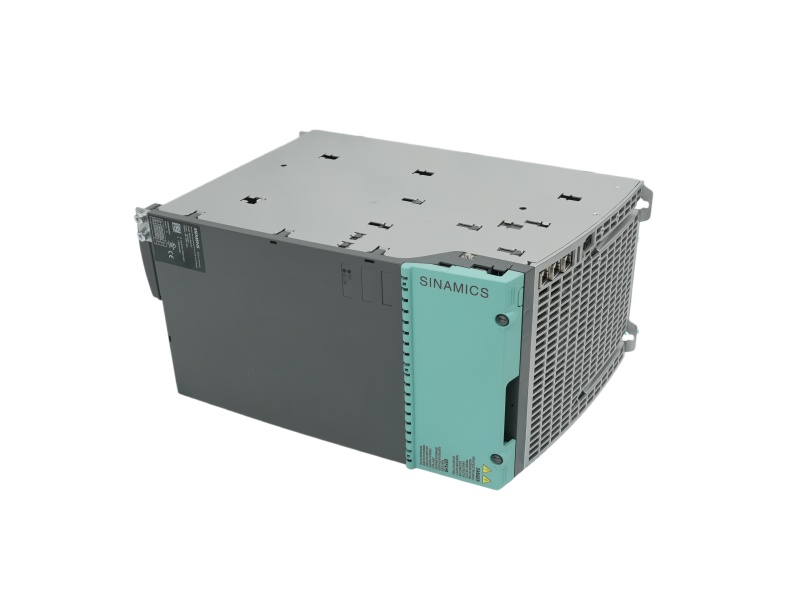

Siemens 6SL3120-1TE28-5AA3 front view

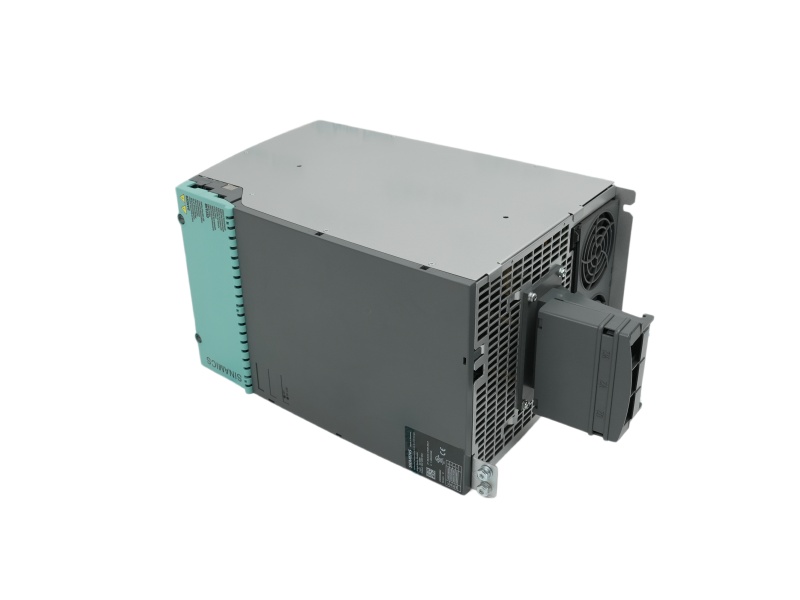

Siemens 6SL3120-1TE28-5AA3 side view
Siemens 6SL3120-1TE28-5AA3 detail view

Siemens 6SL3120-1TE28-5AA3 SINAMICS S120 Single Motor Module 85 A

6SL3120-1TE28-5AA3 — Siemens identifies 6SL3120-1TE28-5AA3 as an 85 A SINAMICS S120 Single Motor Module with 600 V DC input, 400 V three-phase output and booksize internal-air-cooled construction.
Product type
Single Motor Module
Rated current
85 A
Type rating
46 kW
Input
600 V DC
Cooling
Internal air cooling
Lifecycle
PM300 Active Product
Provide the 85 A load requirement, cabinet position and handling plan for this high-current module quotation.
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3120-1TE28-5AA3
Country of Origin Germany
Lead Time 15 working days ex works (verify region and order date)
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SINAMICS · S120
85 A Booksize Single Motor Module
Siemens identifies 6SL3120-1TE28-5AA3 as an 85 A SINAMICS S120 Single Motor Module with 600 V DC input, 400 V three-phase output and booksize internal-air-cooled construction.
PM300 Active ProductSiemens order no. 6SL3120-1TE28-5AA3
Product type
Single Motor Module
Rated current
85 A
Type rating
46 kW
Input
600 V DC
Cooling
Internal air cooling
Lifecycle
PM300 Active Product
PRODUCT INFORMATION
High-current booksize module data
Output
3 AC 400 V
Construction
Booksize
Net weight
14.6 kg
Safety
Extended Safety Integrated
Official record basis
The Siemens description also identifies optimized pulse patterns and an included DRIVE-CLiQ cable for this exact 85 A module.
Configuration boundary
The 46 kW type rating and 14.6 kg net weight are kept with this order number rather than generalized to the S120 family.
SELECTION CHECKPOINTS
85 A installation checkpoints
Current class
Verify that the application requires the 85 A module.
Cabinet cooling
Check internal air flow and booksize installation conditions.
Handling requirement
Plan installation around the stated 14.6 kg net weight.
OFFICIAL RECORD SCOPE
Exact-order limits for the 85 A module
Manufacturer source
Siemens official product record
Record scope
6SL3120-1TE28-5AA3
Lifecycle handling
PM300 wording retained
Unstated data
Not inferred
The 46 kW rating and overview weight are tied to this MLFB; cabinet handling and delivery arrangements remain quotation inputs.
ORDERING HANDOVER
Application information for quotation
Share the 85 A load requirement, booksize cabinet arrangement and installation date for quotation.
Order details to provide
✓ Exact order number
✓ Required quantity and cabinet position
✓ Destination and required date
PRODUCT FAQ
Questions specific to 6SL3120-1TE28-5AA3
What type rating is stated?
46 kW.
What net weight is listed?
14.6 kg.
Which safety wording appears?
Extended Safety Integrated.
