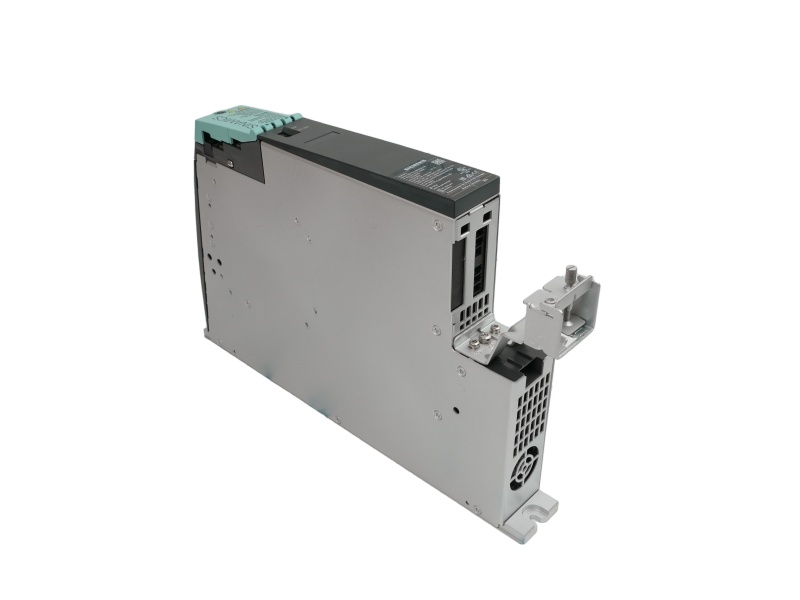

Siemens 6SL3120-1TE21-8AD0 front view

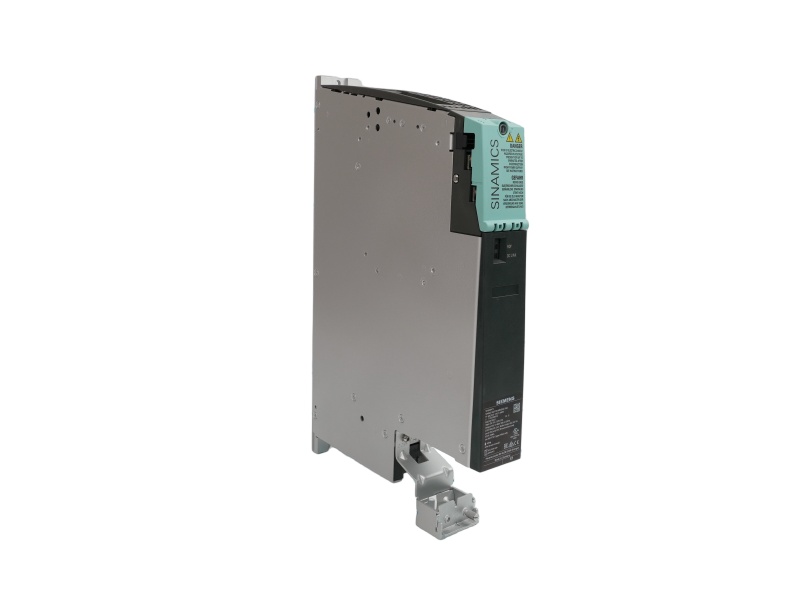

Siemens 6SL3120-1TE21-8AD0 side view
Siemens 6SL3120-1TE21-8AD0 detail view

Siemens 6SL3120-1TE21-8AD0 SINAMICS S120 Single Motor Module 18 A D-Type

6SL3120-1TE21-8AD0 — Siemens identifies 6SL3120-1TE21-8AD0 as a D-type booksize Single Motor Module with 600 V DC input, 400 V three-phase output and 18 A rated output.
Product type
Single Motor Module
Input
600 V DC
Output
3 AC 400 V
Rated current
18 A
Construction
Booksize D-Type
Lifecycle
PM300 Active Product
Send the continuous and peak-current requirements for this 18 A D-type module together with the requested destination.
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3120-1TE21-8AD0
Country of Origin Germany
Lead Time 15 working days ex works (verify region and order date)
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85044087
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SINAMICS · S120
18 A Booksize D-Type Motor Module
Siemens identifies 6SL3120-1TE21-8AD0 as a D-type booksize Single Motor Module with 600 V DC input, 400 V three-phase output and 18 A rated output.
PM300 Active ProductSiemens order no. 6SL3120-1TE21-8AD0
Product type
Single Motor Module
Input
600 V DC
Output
3 AC 400 V
Rated current
18 A
Construction
Booksize D-Type
Lifecycle
PM300 Active Product
PRODUCT INFORMATION
18 A D-type operating values
Type rating
9.7 kW
Base-load current
15.3 A
Maximum current
54 A
Cooling
Internal air cooling
Official record basis
The checked Siemens record states optimized pulse patterns, extended Safety Integrated and an included DRIVE-CLiQ cable for this D-type module.
Configuration boundary
The 18 A rated output and 54 A maximum-current value apply to this exact MLFB and are not transferred to neighboring order numbers.
SELECTION CHECKPOINTS
Operating-data checkpoints
Continuous loading
Compare the 15.3 A base-load current with the application.
Peak requirement
Check whether the stated 54 A maximum-current capability is required.
Ambient range
The catalog data is stated for operation from 0 to 40 °C.
OFFICIAL RECORD SCOPE
Verified operating limits for the 18 A D-type module
Manufacturer source
Siemens official product record
Record scope
6SL3120-1TE21-8AD0
Lifecycle handling
PM300 wording retained
Unstated data
Not inferred
The 15.3 A base-load and 54 A maximum-current values belong to this exact D-type MLFB; PLC Autocontroller quotation details are kept separate.
ORDERING HANDOVER
Application information for quotation
Share the continuous and peak current requirements together with the installed booksize D-type layout.
Order details to provide
✓ Exact order number
✓ Motor current requirement
✓ Destination and required date
PRODUCT FAQ
Questions specific to 6SL3120-1TE21-8AD0
What base-load current is stated?
15.3 A.
What maximum current is stated?
54 A.
What safety description appears in the record?
Extended Safety Integrated.
