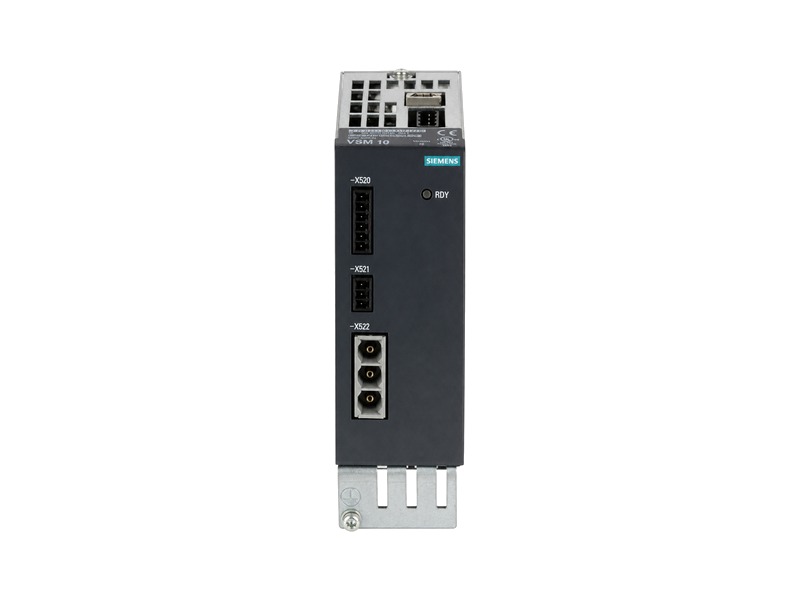

Siemens 6SL3053-0AA00-3AA1 SINAMICS VSM10 front view

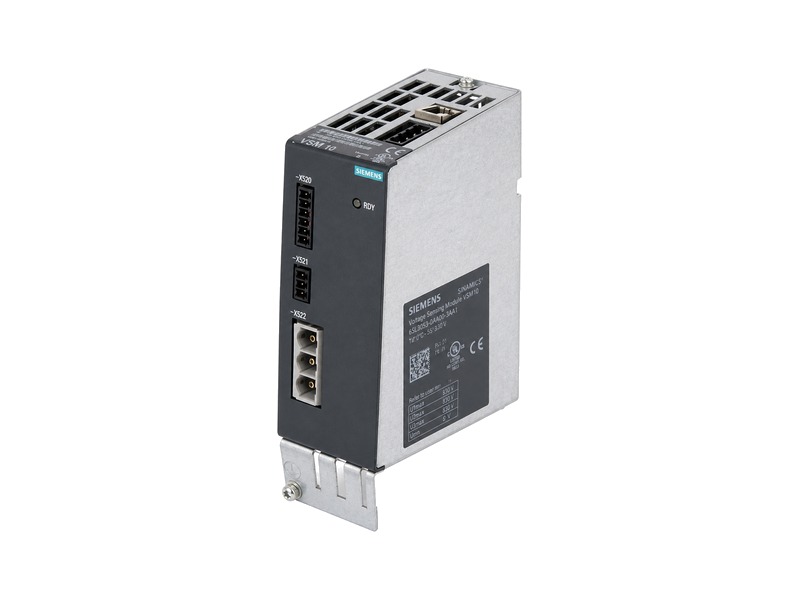

Siemens 6SL3053-0AA00-3AA1 SINAMICS VSM10 side view
Siemens 6SL3053-0AA00-3AA1 SINAMICS VSM10 detail view

Siemens 6SL3053-0AA00-3AA1 SINAMICS VSM10

Application: VSM10 line-voltage sensing module for the matching SINAMICS drive configuration.

Product familySINAMICS S120
Minimum order1 Piece
Applicable ratingsTwo analog sensing inputs; 12-bit plus sign
LifecyclePM300: Active Product
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6SL3053-0AA00-3AA1
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6SL3053-0AA00-3AA1
VOLTAGE SENSING MODULE

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6SL3053-0AA00-3AA1 Technical Data

Exact item scope
Module typeSINAMICS Voltage Sensing Module VSM10
Analog input countTwo sensing inputs
Converter resolution12 bit plus sign
Phase-input resistanceMinimum 362 kΩ at X521; minimum 2.5 MΩ at X522
Minimum insulation resistance10 MΩ
Power loss10 W maximum
Mechanical data50 × 151 × 110 mm; 1 kg
Model-specific application profile

SINAMICS voltage-feedback profile

The VSM10 provides line-side voltage measurement information to the configured SINAMICS system. Its terminal assignment and integration purpose must follow the exact drive topology rather than visual module similarity.

Sensing roleMeasures phase-voltage information for the applicable drive-control arrangement
Topology checkVerify X521/X522 wiring, grounding treatment and the associated power-module architecture
Reserved channelSiemens reserves one analog input for monitoring an Active Interface Module in chassis format

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What 24 VDC supply current does the VSM10 require?

The official data sheet specifies 0.2 A.

02

Which conformity mark is listed?

The Siemens sheet identifies cULus compliance.

03

How is the protective-earth conductor connected?

The published mechanical specification calls for an M4 screw connection.

04

What line-side conductor size is stated?

The line connection is specified for 2.5 mm² conductors, equivalent to AWG 14.
