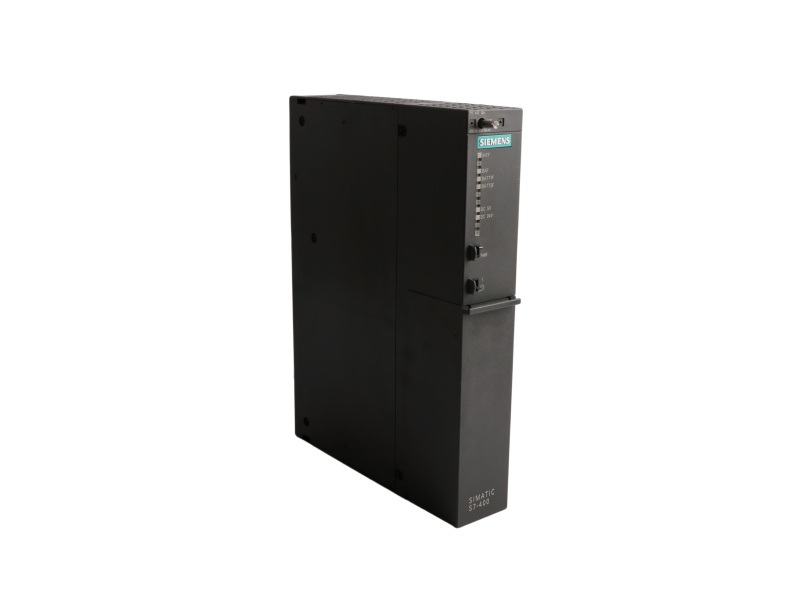

Siemens 6ES7405-0KA02-0AA0 S7-400 PS405 Power Supply front view

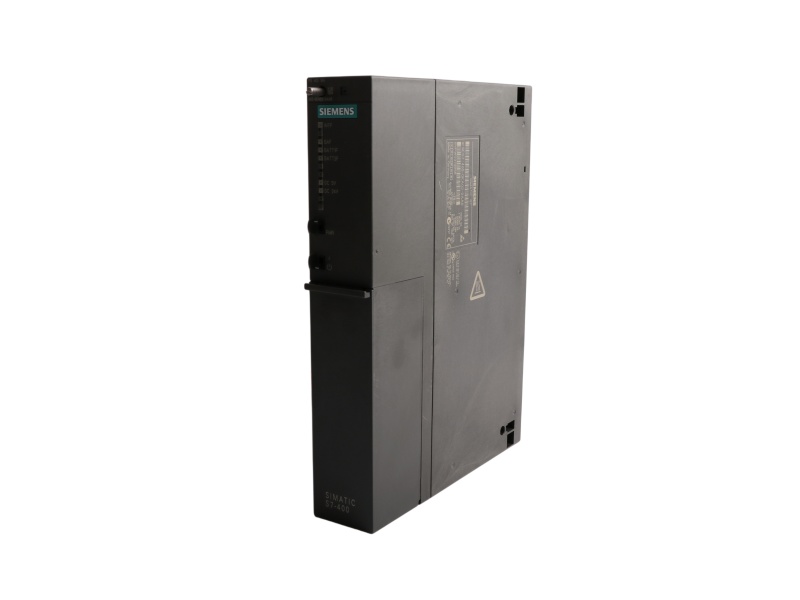

Siemens 6ES7405-0KA02-0AA0 S7-400 PS405 Power Supply side view
Siemens 6ES7405-0KA02-0AA0 S7-400 PS405 Power Supply detail view

Siemens 6ES7405-0KA02-0AA0 S7-400 PS405 Power Supply

Application: PS405 wide-range DC-input power supply for the S7-400 backplane.

Product familySIMATIC S7-400
Minimum order1 Piece
Applicable ratings24/48/60 VDC input; 5 VDC / 10 A output
LifecyclePM300: Active Product
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7405-0KA02-0AA0
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6ES7405-0KA02-0AA0
DC-INPUT SYSTEM POWER SUPPLY

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6ES7405-0KA02-0AA0 Technical Data

Exact item scope
DC input ratings24 V, 48 V and 60 VDC
Five-volt backplane output10 A maximum with no base-load requirement
Auxiliary backplane output24 VDC at 1 A maximum, idling-proof
Active power input95 W typical
Power loss20 W typical
Installation widthTwo S7-400 slots
Operating temperature0 to 60 °C
Mechanical data50 × 290 × 217 mm; approximately 1.2 kg
Primary/secondary isolationYes; equipment protection Class I
Model-specific application profile

DC-fed S7-400 rack-power profile

PS405 accepts the cabinet DC supply and generates S7-400 backplane voltages. It is the DC-input counterpart to PS407 and must be matched to the station power architecture.

Rack roleFeeds both backplane voltage rails for the installed S7-400 modules
Input boundaryUse only with the documented direct-current supply scheme, not a 120/230 V universal AC feed
Battery arrangementThe module provides positions for two optional AA lithium backup batteries

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What stored-energy time is specified for an input interruption?

The Siemens data gives 20 ms and confirms compliance with the NAMUR buffering recommendation.

02

Is the backplane output short-circuit protected?

Yes. Short-circuit protection is listed in the official product data.

03

What inrush current is stated?

The maximum is 18 A with a 20 ms full width at half maximum.

04

Which hazardous-location approval appears in the record?

FM approval is listed for 0 to 60 °C operation with a T4 temperature class.
