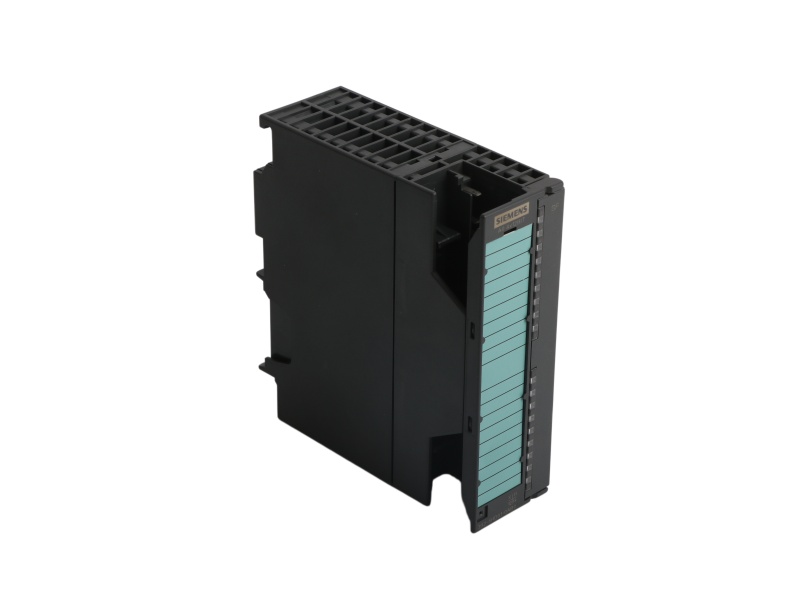

Siemens 6ES7332-5HD01-0AB0 S7-300 SM332 Analog Output front view

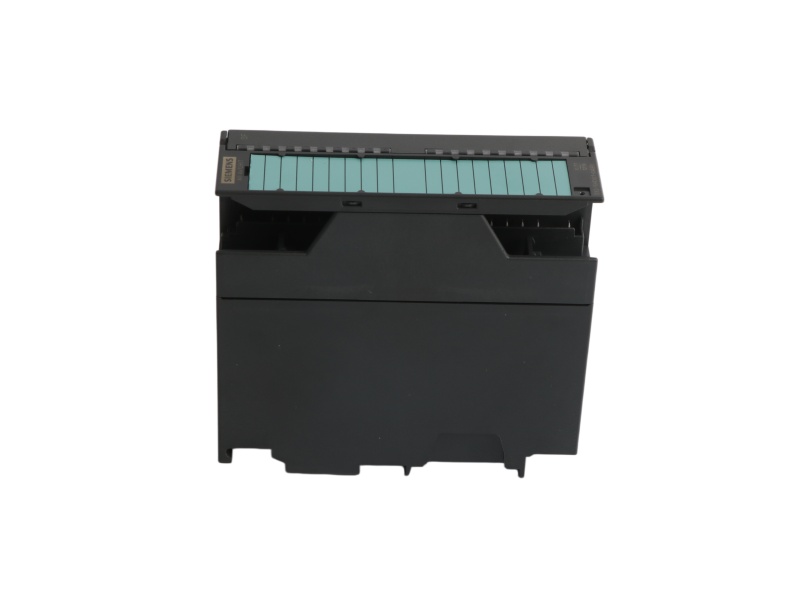

Siemens 6ES7332-5HD01-0AB0 S7-300 SM332 Analog Output side view
Siemens 6ES7332-5HD01-0AB0 S7-300 SM332 Analog Output detail view

Siemens 6ES7332-5HD01-0AB0 S7-300 SM332 Analog Output

Application: Diagnostic four-channel SM332 module for isolated voltage/current outputs.

Product familySIMATIC S7-300
Minimum order1 Piece
Applicable ratings4 AO; 11/12-bit resolution
LifecycleProduct Cancellation
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7332-5HD01-0AB0
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6ES7332-5HD01-0AB0
4-CHANNEL ANALOG OUTPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6ES7332-5HD01-0AB0 Technical Data

Exact item scope
Analog capacityFour output channels
Supported voltage ranges0-10 V, 1-5 V and -10 to +10 V
Supported current ranges0-20 mA, 4-20 mA and -20 to +20 mA
Conversion resolution12 bits maximum with 11-bit-plus-sign modes where applicable
Permitted loadsAt least 1 kΩ for voltage; up to 500 Ω and 10 mH for current
Diagnostic capabilityDiagnostics included for this 5HD01 version
Power loss3 W typical
Connector and size20-pin front connector; 40 × 125 × 117 mm
Module weightApproximately 220 g
Model-specific application profile

Four-loop analog output profile

The 5HD01 version places four analog command channels and diagnostic functions in one S7-300 slot. Project parameters and the four-loop connector assignment must be retained during replacement.

Process roleGenerates multiple actuator setpoints from one isolated output module
Density checkConfirm the four-channel project assignment rather than substituting the two-channel 5HB01 variant
Wiring profileThe manufacturer record lists four-wire voltage and two-wire current actuator connections

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What is the per-channel conversion time?

The published conversion time is 0.8 ms.

02

How quickly does a resistive load settle?

Siemens lists 0.2 ms for a resistive output load.

03

What isolation test voltage is documented?

The module is tested with 500 VDC between the specified circuit groups.

04

Can it be removed with an active backplane bus?

Yes. The exact Siemens description allows removal and insertion with an active backplane bus.
