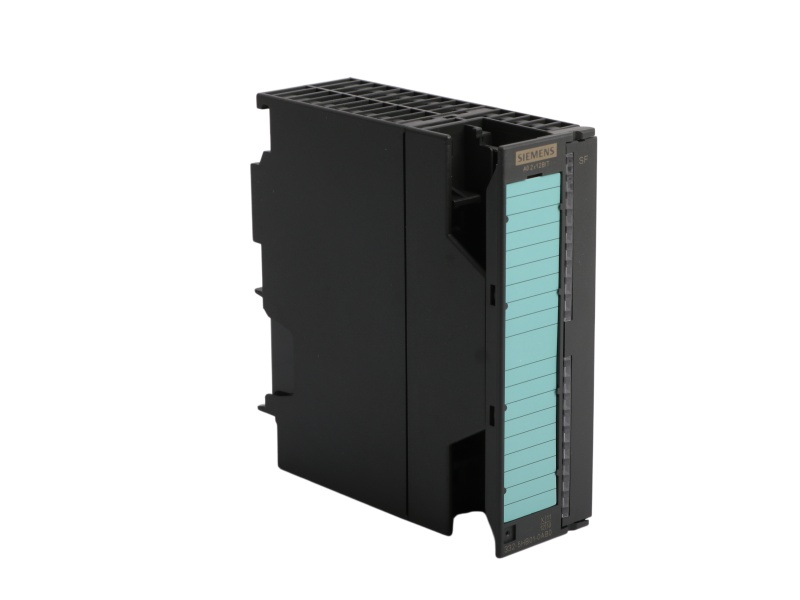

Siemens 6ES7332-5HB01-0AB0 S7-300 SM332 Analog Output front view

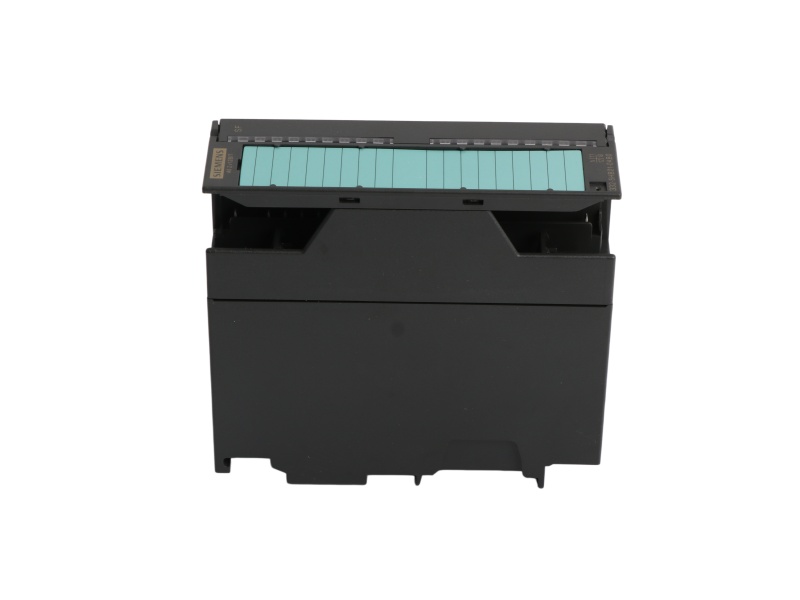

Siemens 6ES7332-5HB01-0AB0 S7-300 SM332 Analog Output side view
Siemens 6ES7332-5HB01-0AB0 S7-300 SM332 Analog Output detail view

Siemens 6ES7332-5HB01-0AB0 S7-300 SM332 Analog Output

Application: Isolated two-channel SM332 voltage/current output module.

Product familySIMATIC S7-300
Minimum order1 Piece
Applicable ratings2 AO; 11/12-bit resolution
LifecycleProduct Cancellation
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7332-5HB01-0AB0
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6ES7332-5HB01-0AB0
2-CHANNEL ANALOG OUTPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6ES7332-5HB01-0AB0 Technical Data

Exact item scope
Analog capacityTwo output channels
Voltage ranges0-10 V, 1-5 V and ±10 V
Current ranges0-20 mA, 4-20 mA and ±20 mA
Output resolution12 bits maximum; 11 bits plus sign for bipolar and offset ranges
Load capabilityMinimum 1 kΩ for voltage output; maximum 500 Ω for current output
Current-output compliance18 V maximum no-load voltage
Power loss3 W typical
Connector and size20-pin front connector; 40 × 125 × 117 mm
Module weightApproximately 220 g
Model-specific application profile

Dual-channel analog control profile

This two-output SM332 variant generates voltage or current setpoints for S7-300 control loops. The lower channel count and supported two-wire voltage connection distinguish it from the four-output version.

Control roleProvides two analog command signals for compatible actuators and converters
Connection choiceThe official record supports two-wire or four-wire voltage loads and two-wire current loads
Service handlingModule exchange in RUN depends on an active backplane-bus configuration

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

How long is the conversion time per output channel?

The documented value is 0.8 ms.

02

What settling times are listed?

Siemens gives 0.2 ms for resistive loads, 3.3 ms for capacitive loads and values up to 3.3 ms for the specified inductive load.

03

Is the voltage output short-circuit protected?

Yes, with a published maximum short-circuit current of 25 mA.

04

What is the maximum shielded cable length?

The official product data specifies 200 m.
