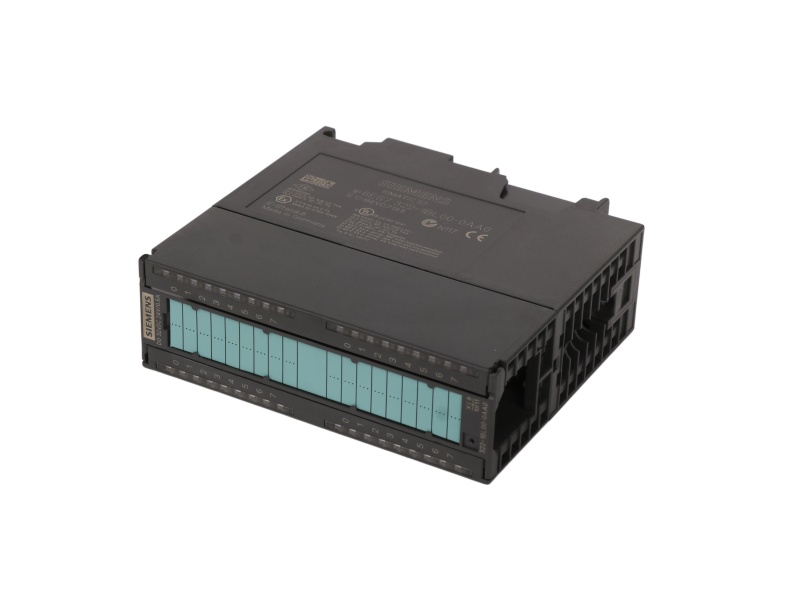

Siemens 6ES7322-1BL00-0AA0 S7-300 SM322 Digital Output front view

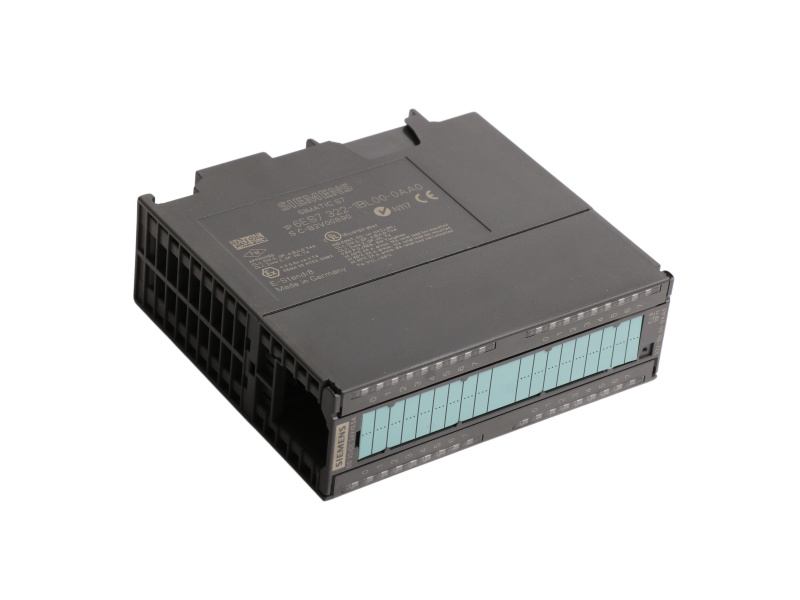

Siemens 6ES7322-1BL00-0AA0 S7-300 SM322 Digital Output side view
Siemens 6ES7322-1BL00-0AA0 S7-300 SM322 Digital Output detail view

Siemens 6ES7322-1BL00-0AA0 S7-300 SM322 Digital Output

Application: Isolated SM322 module with thirty-two 24 VDC transistor outputs.

Product familySIMATIC S7-300
Minimum order1 Piece
Applicable ratings32 DO; 0.5 A per channel
LifecyclePM410: Product cancellation since 2025-10-01
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7322-1BL00-0AA0
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6ES7322-1BL00-0AA0
32-CHANNEL DIGITAL OUTPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6ES7322-1BL00-0AA0 Technical Data

Exact item scope
Output capacity32 digital outputs
Load-voltage range20.4-28.8 VDC around a 24 VDC rated supply
Rated point current0.5 A; published operating range 5 mA to 0.6 A
Total output current4 A per group at 40 °C; 16 A for the module
Output groupingFour isolated banks of eight channels
Resistive switching100 Hz maximum
Power loss6.6 W typical
Connector and size40-pin front connector; 40 × 125 × 120 mm
Module weightApproximately 260 g
Model-specific application profile

Grouped DC actuator-output profile

This SM322 switches a dense bank of low-voltage actuators from an S7-300 rack. Current totals, thermal orientation and common-group wiring must be evaluated together.

Load roleDrives compatible DC indicators, relays and other discrete loads from PLC commands
Protection profileElectronic short-circuit protection is integrated at the output stage
Redundant controlSiemens permits paired redundant control only between outputs in the same group

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What is the maximum lamp load per output?

The official technical record states 5 W.

02

What are the output delays with a resistive load?

The published maxima are 100 µs from 0-to-1 and 500 µs from 1-to-0.

03

Does the module provide fault diagnostics?

No. Wire-break, short-circuit and missing-load-voltage diagnostics are not listed for this order number.

04

What field-cable distances are allowed?

Siemens gives 1,000 m maximum for shielded cable and 600 m for unshielded cable.
