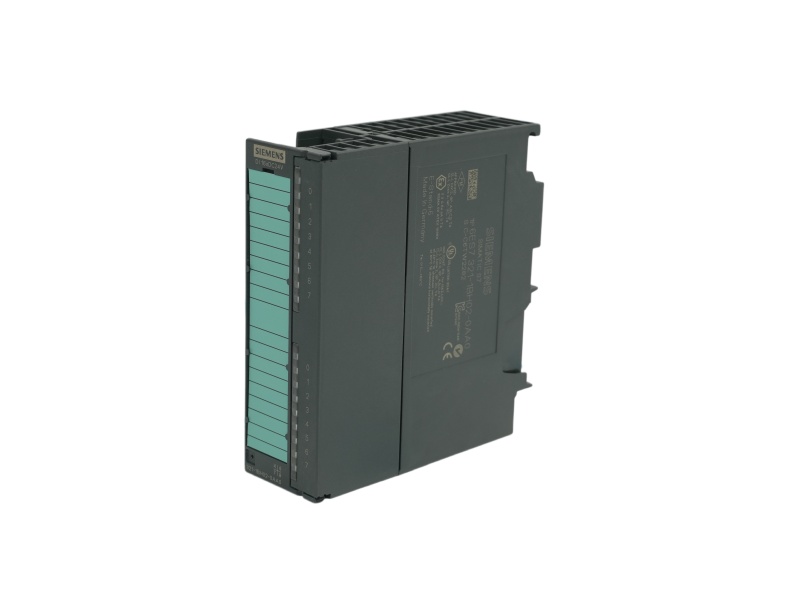

Siemens 6ES7321-1BH02-0AA0 S7-300 SM321 Digital Input front view

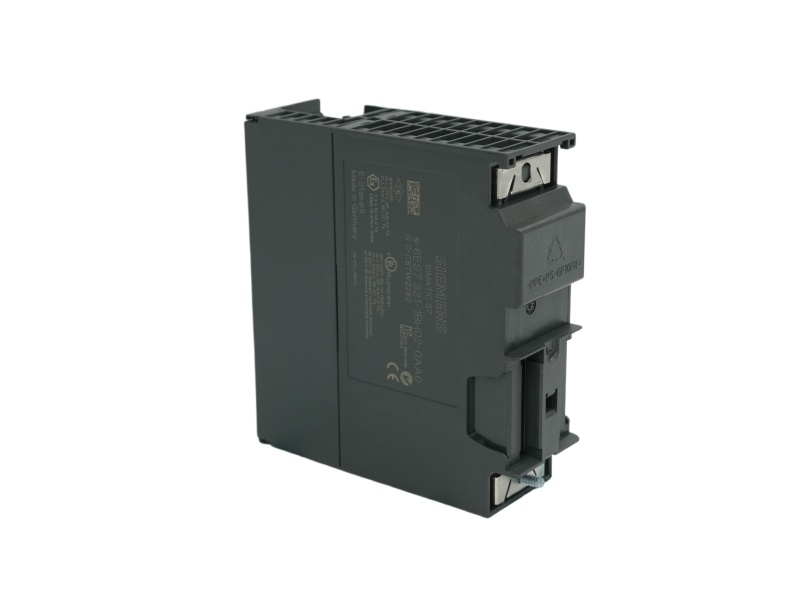

Siemens 6ES7321-1BH02-0AA0 S7-300 SM321 Digital Input side view
Siemens 6ES7321-1BH02-0AA0 S7-300 SM321 Digital Input detail view

Siemens 6ES7321-1BH02-0AA0 S7-300 SM321 Digital Input

Application: Isolated SM321 input module with sixteen 24 VDC channels.

Product familySIMATIC S7-300
Minimum order1 Piece
Applicable ratings16 DI; 24 VDC; 20-pin front connector
LifecyclePM410: Product cancellation since 2025-10-01
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7321-1BH02-0AA0
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6ES7321-1BH02-0AA0
16-CHANNEL DIGITAL INPUT

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6ES7321-1BH02-0AA0 Technical Data

Exact item scope
Input capacity16 digital inputs
Rated load voltage24 VDC; permissible supply range 20.4-28.8 VDC
Logic thresholdsSignal 0: -30 to +5 V; signal 1: 13-30 V
Typical ON current7 mA per active input
Input delay1.2-4.8 ms for either transition at rated voltage
Power loss3.5 W typical
Isolation500 VDC test between the input group and backplane bus
Connector and size20-pin front connector; 40 × 125 × 120 mm
Module weightApproximately 200 g
Model-specific application profile

Compact sixteen-point input profile

This narrow SM321 variant brings sixteen field states into an S7-300 rack through a twenty-pole front connector. The channel count and connector density distinguish it from the thirty-two-point version.

Signal roleCollects standard DC sensor and contact states for the PLC process image
Group architectureAll inputs form one potential group while remaining optically isolated from the backplane
Replacement checkRetain the existing front-connector pin plan and verify the spare-part suffix character by character

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

Can two-wire sensors be connected?

Yes. Siemens permits two-wire sensors with up to 1.5 mA quiescent current.

02

What cable lengths are published?

The maximum is 1,000 m for shielded cable and 600 m for unshielded cable.

03

Does this module generate diagnostic or hardware alarms?

No. The official record lists neither diagnostic alarms nor hardware interrupts.

04

How are active inputs indicated?

A green status indicator is provided for each digital input.
