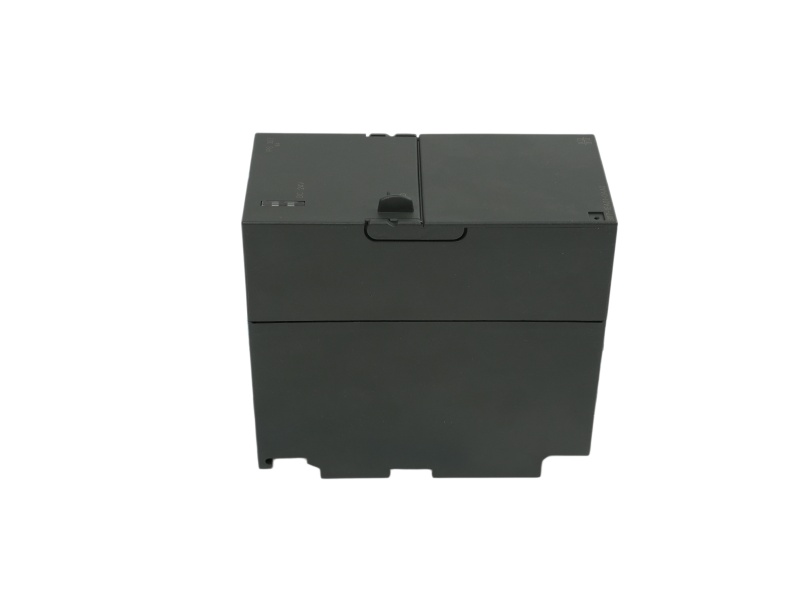

Siemens 6ES7307-1EA01-0AA0 SIMATIC PS307 Power Supply front view

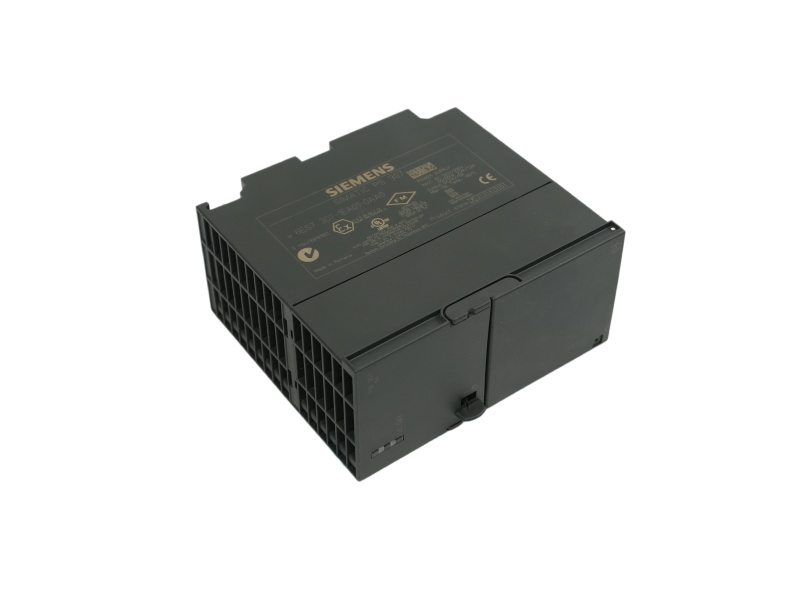

Siemens 6ES7307-1EA01-0AA0 SIMATIC PS307 Power Supply side view
Siemens 6ES7307-1EA01-0AA0 SIMATIC PS307 Power Supply detail view

Siemens 6ES7307-1EA01-0AA0 SIMATIC PS307 Power Supply

Application: PS307 regulated supply for SIMATIC S7-300 control-power applications.

Product familySIMATIC S7-300
Minimum order1 Piece
Applicable ratings120/230 VAC input; 24 VDC / 5 A output
LifecyclePM400: Phase-out since 2023-10-01
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7307-1EA01-0AA0
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6ES7307-1EA01-0AA0
24 VDC 5 A POWER SUPPLY

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6ES7307-1EA01-0AA0 Technical Data

Exact item scope
Input selectionAutomatic selection between 85-132 VAC and 170-264 VAC
Line frequency47-63 Hz
Rated input current2.3 A at 120 V; 1.2 A at 230 V
Regulated output24 VDC, 5 A, 120 W
Efficiency and losses87% efficiency; 18 W typical loss at rated output
Mains buffering20 ms minimum at rated current and the documented input condition
Protection and environmentIP20; 0 to 60 °C operation with natural convection
Mechanical data60 × 125 × 120 mm; 0.6 kg
MountingSIMATIC S7 mounting rail
Model-specific application profile

S7-300 rack supply profile

The PS307 provides stabilized control voltage alongside an S7-300 station. Cabinet review should include the two AC input windows, available rail space and downstream load total.

Station roleFeeds the 24 VDC control circuits associated with the S7-300 installation
Output distributionThree L+ and three M screw terminals support cabinet-side distribution
Fault behaviorElectronic short-circuit shutdown is followed by automatic restart

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

Can the output voltage be adjusted?

No. The Siemens product record identifies a fixed regulated output for this version.

02

What upstream miniature circuit breaker is recommended?

Siemens recommends a breaker from 6 A with characteristic C.

03

Is the output galvanically isolated from the input?

Yes. The output is documented as SELV/ES1 with Class I equipment protection.

04

What MTBF is stated at 40 °C?

The official technical data gives 2,480,589 hours.
