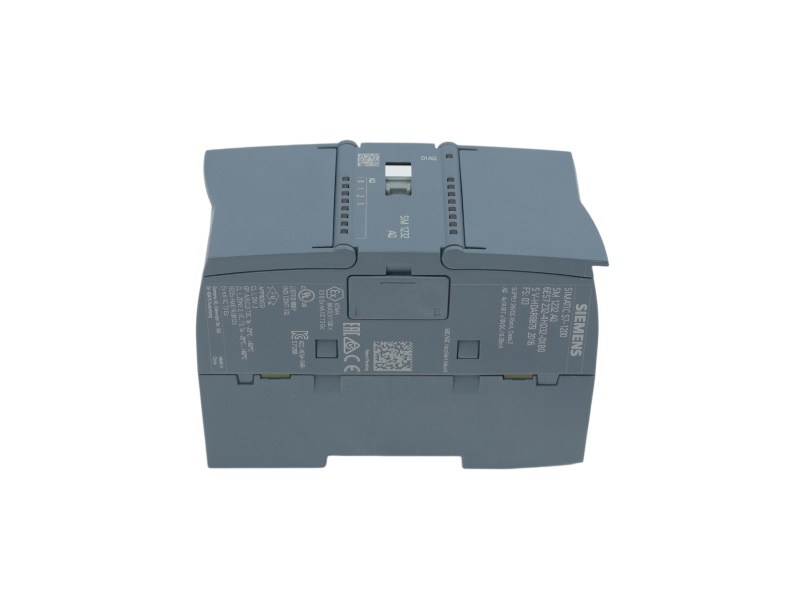

Siemens 6ES7232-4HD32-0XB0 SM 1232 analog output module front view

Siemens 6ES7232-4HD32-0XB0 SM 1232 module label view

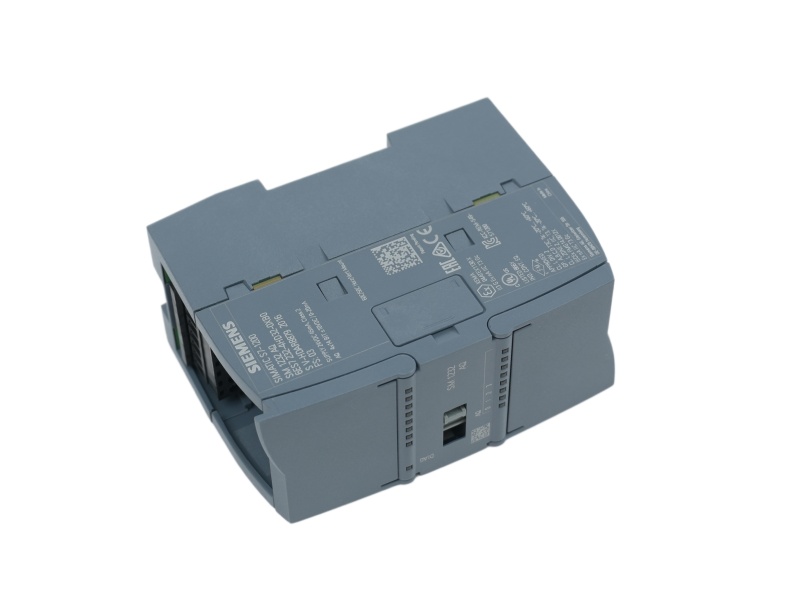

Siemens 6ES7232-4HD32-0XB0 SM 1232 angled view

Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200 SM 1232 Analog Output Module

Name: Siemens 6ES7232-4HD32-0XB0 SIMATIC S7-1200 SM 1232 Analog Output Module
Availability: InStock

ANALOG OUTPUT MATCH

6ES7232-4HD32-0XB0

Send quantity, output mode and destination for a matched quotation.

Output profile±10 V or 0/4–20 mA

Match reviewArticle and project data checked

Please include with your request

• Article number and quantity• Required output mode• Project reference, if available• Destination and delivery date

Quotation covers: condition, availability, warranty and lead time.

Inquire Now

Worldwide delivery
Delivery from stock
In stock really means in stock
No account required
Shipped from the China

Product Specifications

Manufacturer	Siemens
Item number	6ES7232-4HD32-0XB0
Country of Origin	Germany
Lead Time	Confirmed in quotation by quantity and destination
After-Sales Support	Order-specific warranty and technical support
HS Code / Commodity code	85389091

FAQ

How long is my quote valid for?

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Is there any warranty?

Yes,we offer one year warranty for all new products.

Do you offer global delivery?

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

How many days will it take for my part to arrive?

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

ANALOG OUTPUT CANVAS

6ES7232-4HD32-0XB0

SIMATIC S7-1200 · SM 1232 · AQ 4×14 bit

Four configurable analog output channels for voltage or current signals, designed as an expansion module for SIMATIC S7-1200 systems.

Voltage mode±10 V · 14-bit resolution

Current mode0–20 / 4–20 mA · 13-bit

OUTPUT CHANNELS4 AO

RATED SUPPLY24 V DC

POWER LOSS1.5 W

MODULE WIDTH45 mm

MODULE IDENTITY

SM 1232

Analog output signal module
AQ 4×14 bit
SIMATIC S7-1200

Article: 6ES7232-4HD32-0XB0

Electrical & Performance Data

Supply voltage	24 V DC
Typical current	45 mA; 80 mA typical from 5 V DC backplane bus
Output channels	4, configurable for current or voltage
Voltage range	−10 V to +10 V
Current ranges	0–20 mA and 4–20 mA
Resolution	14 bit voltage; 13 bit current, including sign/overrange

Load & Cabling Envelope

OUTPUT PATH LIMITS

Voltage loadMinimum 1,000 Ω

Current loadMaximum 600 Ω

Cable length100 m max.; shielded twisted pair

Accuracy & Construction

Temperature error: ±0.3% at 25 °C; ±0.6% to 55 °C, relative to total output range.

Dimensions: 45 × 100 × 75 mm.

Approximate weight: 180 g.

Lifecycle Snapshot

PM300 · Active Product

Siemens states product phase-out from 1 November 2026. This article is the official successor to discontinued 6ES7232-4HD30-0XB0.

Buyer FAQ

How many outputs are provided?Four analog outputs, selectable for voltage or current operation.

Does it support 4–20 mA?Yes. Siemens lists both 0–20 mA and 4–20 mA current ranges.

Can unshielded cable be used for the stated 100 m?The official technical data specifies shielded, twisted-pair cable for the 100 m maximum.

Is 6ES7232-4HD30-0XB0 interchangeable?The older article lists this module as its successor; verify project configuration and channel parameterization before replacement.

Other Multi-Brand Parts Available for Inquiry30 MATCHED ITEMS

Brand	Model / Part Number	Brand	Model / Part Number
ABB	DIS0002 2RAA005802A0001H	Crestron	DM-RMC-200-C
Yokogawa	AAM11-S2	B&R	7CP470.60-2
Schneider Electric	TM221M16T M221-16io	Bently Nevada	3500/50 133442-01
Siemens	QPA2062	ABB	PM582 / 1SAP140200R0100
Bently Nevada	330103-00-04-10-02-05	Yokogawa	NFAI143-S00
Beckhoff	BK5200 KL4004 KL3064 KL9010	Schneider Electric	NW-BM85C002
Emerson	12P2535X052 KJ3201X1-BA1	Siemens	PXC36.1-ED
Honeywell	RM7823A1016	Honeywell	51202329-402
Yokogawa	PAIH03	Rockwell Automation	2706-LV2P
ABB	SL/S50.1 / GHQ6050051R0001	ABB	1SAP176000R0080 CM5640-2ETH
Schneider Electric	ATV312H075N4B	Yokogawa	AIP171-S1
Siemens	7ML5741-3BA00-0 RD100	Schneider Electric	METSEPM5320
Foxboro	FBM214 P0922VT	Siemens	3UG4616-2CR20
GE Fanuc	HE693RTD665C	Miller	230170
ICS Triplex	T8313 5020-301	Bently Nevada	330180-X1-00

Selection note: verify the complete Siemens article number, configured output mode, load impedance, cable design and S7-1200 project parameters before installation.
