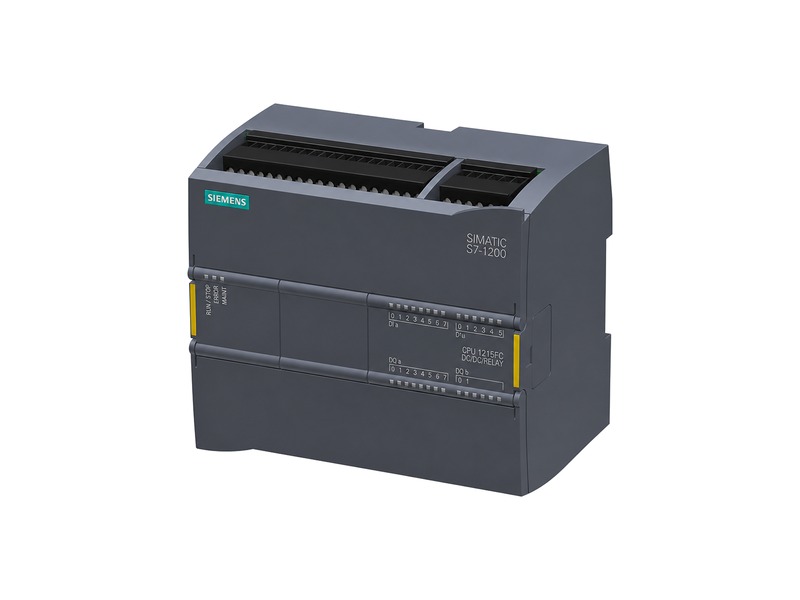

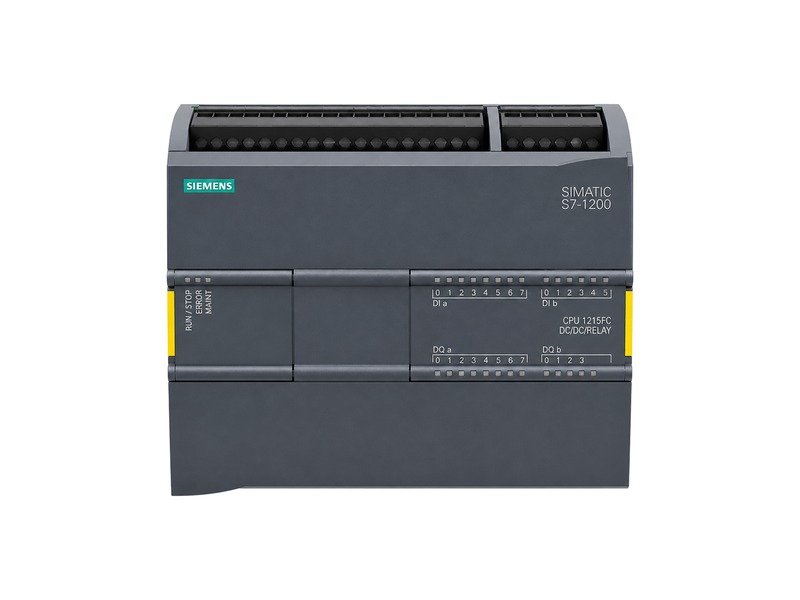

6ES7215-1HF40-0XB0 is the SIMATIC S7-1200F CPU 1215 FC compact fail-safe controller with DC supply, 14 digital inputs, ten relay outputs, two analog inputs, two analog outputs, two PROFINET ports and 250 KB memory.
Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
| Manufacturer | Siemens AG |
| Item number | 6ES7215-1HF40-0XB0 |
| Country of Origin | China |
| Lead Time | 1 working day ex works (verify region and order date) |
| After-Sales Support | Siemens spare-part delivery, repair and exchange services |
| HS Code / Commodity code | 85371091 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
SIMATIC S7-1200F CPU 1215 FC compact fail-safe controller with DC supply, 14 digital inputs, ten relay outputs, two analog inputs, two analog outputs, two PROFINET ports and 250 KB memory.
Confirm the DC/DC/relay F-CPU, relay loads and isolation, analog ranges, firmware/TIA Portal version, F-signature, safety project, PROFINET topology, expansion and migration plan.
Archive the complete TIA Portal project, firmware, F-signature, PROFINET name/IP, safety settings, I/O mapping, analog scaling, technology objects, retentive data and wiring.
This CPU 1215 FC variant includes ten relay outputs rated up to 2 A.
Siemens specifies 250 KB program/data memory.
Siemens schedules product phase-out from 1 November 2026.
Share the model, fieldbus and safety requirements for a fast compatibility check.
6ES7215-1HG40-0XB0 is the SIMATIC S7-1200 CPU 1215C compact controller with DC supply, 14 digital inputs, ten relay outputs, two analog inputs, two analog outputs, two PROFINET ports and 200 KB memory. Digital inputs 14 DI · 24 V DC Relay outputs 10 DO · 2 A Analog I/O 2 AI · 2 AO PROFINET 2 ports Supply 20.4–28.8 V DC Memory 200 KB Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7138-4DB03-0AB0 is the SIMATIC ET 200S electronic module for one SSI absolute encoder, supporting up to 25-bit data at 1 MHz, digital input, comparison function, isochronous operation and hot swapping. Channels 1 SSI Resolution Up to 25 bit Clock Up to 1 MHz Module width 15 mm Supply 24 V DC Operation Isochronous Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7151-1AB05-0AB0 is the SIMATIC ET 200S IM151-1 FO Standard interface module connecting an ET 200S station to PROFIBUS DP through plastic or PCF fiber, with transfer rates up to 12 Mbit/s. Station ET 200S Network PROFIBUS DP Media POF / PCF fiber Rate Up to 12 Mbit/s I/O modules Up to 63 Supply 24 V DC Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7151-7FA21-0AB0 is the SIMATIC ET 200S IM151-7 F-CPU fail-safe interface/controller module with 192 KB work memory, integrated PROFIBUS DP interface and required SIMATIC Micro Memory Card. CPU class IM151-7 F-CPU Work memory 192 KB Network PROFIBUS DP Connector 9-pin D-sub Memory card MMC required Supply 24 V DC Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7214-1HF40-0XB0 is the SIMATIC S7-1200F CPU 1214 FC compact fail-safe controller with DC supply, 14 digital inputs, ten relay outputs, two 0–10 V analog inputs and 200 KB program/data memory. Digital inputs 14 DI · 24 V DC Relay outputs 10 DO · 2 A Analog inputs 2 AI · 0–10 V Supply 20.4–28.8 V DC Memory 200 KB CPU class Fail-safe 1214 FC Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7215-1AF40-0XB0 is the SIMATIC S7-1200F CPU 1215 FC compact fail-safe controller with DC/DC/DC design, 14 digital inputs, ten transistor outputs, two analog inputs, two analog outputs, two PROFINET ports and 250 KB memory. Digital inputs 14 DI · 24 V DC Digital outputs 10 DO · 0.5 A Analog I/O 2 AI · 2 AO PROFINET 2 ports Supply 20.4–28.8 V DC Memory 250 KB Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7215-1AL40-0XB0 is the SIMATIC S7-1200 CPU 1215C order variant identified in Siemens certification documentation. Its exact supply, I/O, memory, firmware and regional configuration must be confirmed from the device nameplate and Siemens project records. CPU family CPU 1215C System SIMATIC S7-1200 Order variant Configuration-specific I/O data Nameplate check Engineering TIA Portal Verification Siemens records Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
6ES7215-1HF40-0XB0 is the SIMATIC S7-1200F CPU 1215 FC compact fail-safe controller with DC supply, 14 digital inputs, ten relay outputs, two analog inputs, two analog outputs, two PROFINET ports and 250 KB memory. Digital inputs 14 DI · 24 V DC Relay outputs 10 DO · 2 A Analog I/O 2 AI · 2 AO PROFINET 2 ports Supply 20.4–28.8 V DC Memory 250 KB Send the installed system, firmware, wiring and application requirements for an exact compatibility check.
Details
