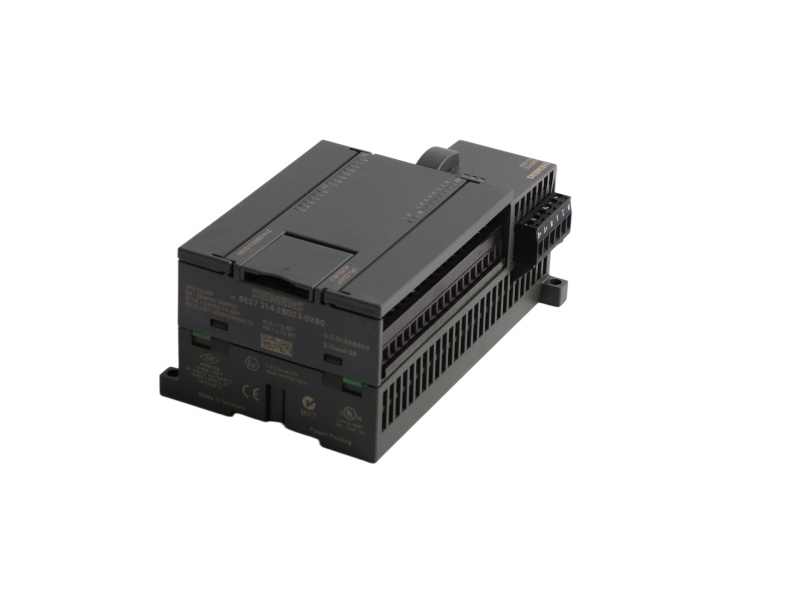

Siemens 6ES7214-2BD23-0XB0 product front view

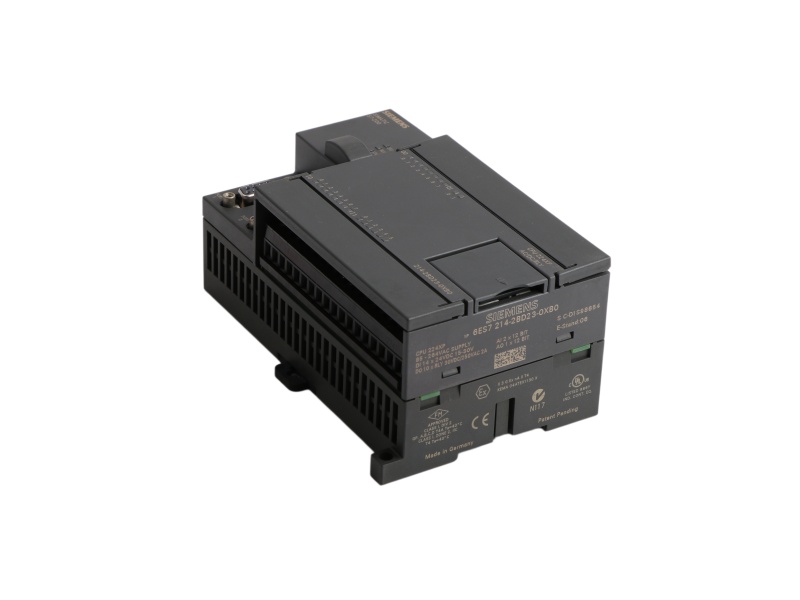

Siemens 6ES7214-2BD23-0XB0 product side view
Siemens 6ES7214-2BD23-0XB0 product interface view

Siemens 6ES7214-2BD23-0XB0 SIMATIC S7-200 CPU 224XP AC/DC/Relay

6ES7214-2BD23-0XB0 is a Siemens SIMATIC S7-200 CPU 224XP compact controller with an AC mains supply, 14 digital inputs, 10 relay outputs, 2 analog inputs and 1 analog output.

Controller
CPU 224XP
Supply
AC mains supply
Digital I/O
14 DI · 10 DO
Analog I/O
2 AI · 1 AO
Interfaces
2 PPI / RS-485
Memory
12/16 KB · 10 KB

Send the exact MLFB, project version, connected modules and application requirements for a complete compatibility check.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7214-2BD23-0XB0
Country of Origin Germany
Lead Time Contact for Siemens spare-part availability
After-Sales Support Siemens spare-part delivery, repair and exchange services
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-200 · EXTENDED MICRO CONTROL
6ES7214-2BD23-0XB0
CPU 224XP · AC/DC/Relay
SPARE PART2 AI · 1 AO2 PPI / RS-485
CONTROL SNAPSHOT
DIGITAL I/O14 IN · 10 OUT
ANALOG I/O2 IN · 1 OUT
SUPPLYAC mains supply
OUTPUTS10 relay outputs
SERIAL PORTS2 PPI / RS-485
PROTECTIONIP20
PRODUCT POSITIONING
S7-200 compact control with integrated analog channels
CPU, digital I/O and analog I/O in one unit

The CPU 224XP combines 14 digital inputs, 10 relay outputs, 2 analog inputs and 1 analog output. Siemens specifies 12 KB of program memory with run-mode edit or 16 KB without it, plus 10 KB of data memory.

Order-code checkpoint

6ES7214-2BD23-0XB0 is the AC/DC/Relay CPU 224XP. Check the complete MLFB, supply, output technology, analog ranges and serial-port configuration before replacement.

SIGNAL MAP
Integrated acquisition, logic and output control
01 · CONNECT
2 PPI / RS-485

Restore the serial communication parameters and network addresses.

02 · ACQUIRE
14 DI · 2 AI

Read discrete sensors and the two integrated analog channels.

03 · EXECUTE
CPU 224XP logic

Run the archived S7-200 application and technology functions.

04 · REPORT
10 DO · 1 AO

Drive field loads and the integrated analog output.

SYSTEM REFERENCE
Electrical, mechanical and lifecycle data
Supply
AC mains supply
Digital inputs
14
Digital outputs
10
Analog channels
2 AI · 1 AO
Program memory
12/16 KB
Data memory
10 KB
Dimensions
140 × 80 × 62 mm
Protection
IP20
CPU 224XP variant check

The AC/relay and DC/transistor versions are not interchangeable without checking the power circuit and field loads. Preserve the analog scaling, PPI settings and Micro/WIN project.

COMMISSIONING HANDOVER
What to capture before replacement
Archive the STEP 7-Micro/WIN project, analog scaling, serial-port settings, retentive values, expansion-module order and complete terminal wiring before replacement.
Order-time checklist
•Exact MLFB and suffix
•Supply and output technology
•Micro/WIN project backup
•Analog ranges and scaling
•PPI / RS-485 parameters
•Destination and required date
FAQ
CPU 224XP selection questions
What distinguishes CPU 224XP?

It adds two integrated analog inputs, one analog output and two PPI/user-programmable interfaces to the compact S7-200 platform.

Are the outputs relays?

Yes. This AC-powered variant has ten relay outputs.

Can a standard CPU 224 replace it?

Not directly when the application uses the integrated analog channels, memory capacity or the second serial interface.
