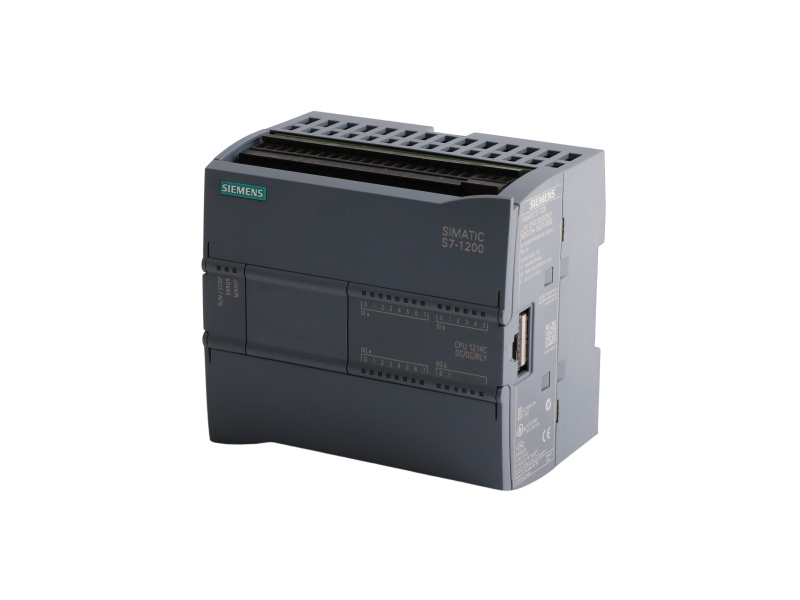

Siemens 6ES7214-1HG31-0XB0 product front view
Siemens 6ES7214-1HG31-0XB0 product side view

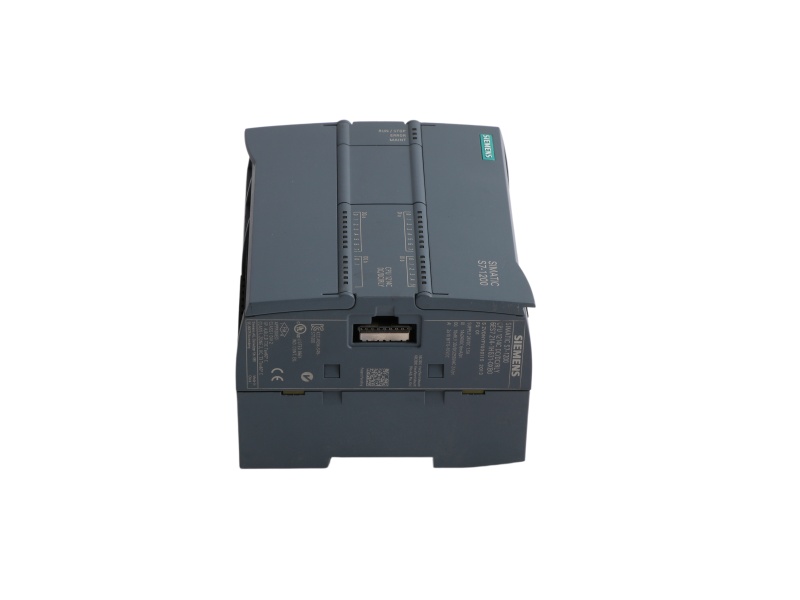

Siemens 6ES7214-1HG31-0XB0 product interface view

Siemens 6ES7214-1HG31-0XB0 SIMATIC S7-1200 CPU 1214C DC/DC/Relay

6ES7214-1HG31-0XB0 is a Siemens SIMATIC S7-1200 CPU 1214C compact controller with dc/dc/relay architecture, 14 digital inputs, 10 relay outputs and 2 analog inputs.

Controller
CPU 1214C
Supply
20.4–28.8 V DC
Digital I/O
14 DI · 10 DO
Analog I/O
2 AI · 0 AO
Work memory
75 KB
Lifecycle
PM490 Discontinued

Send the exact MLFB, project version, connected modules and application requirements for a complete compatibility check.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7214-1HG31-0XB0
Country of Origin Germany
Lead Time 1 working day ex works (verify region and order date)
After-Sales Support Siemens spare-part delivery, repair and exchange services
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-1200 · COMPACT AUTOMATION
6ES7214-1HG31-0XB0
CPU 1214C · DC/DC/Relay
PM490 DiscontinuedPROFINET14 DI · 10 RELAY DO
CONTROL SNAPSHOT
DIGITAL I/O14 IN · 10 OUT
WORK MEMORY75 KB
NETWORKPROFINET
OUTPUTS10 relays · 2 A
PROTECTIONIP20
AMBIENT-20…+60 °C
PRODUCT POSITIONING
Compact PROFINET control with integrated machine I/O
CPU 1214C processing and onboard signals

This CPU 1214C integrates 14 digital inputs, 10 relay outputs and 2 analog inputs with 75 KB of work memory. The built-in PROFINET interface connects engineering, HMI and automation devices.

Generation and supply checkpoint

6ES7214-1HG31-0XB0 identifies the V3 DC/DC/Relay version. Verify the full MLFB, firmware generation, TIA Portal hardware support and incoming supply before substituting another CPU 1214C.

SIGNAL MAP
From PROFINET communication to relay actuation
01 · CONNECT
PROFINET

Restore the device name, IP settings and controller network configuration.

02 · ACQUIRE
14 DI · 2 AI

Read discrete machine signals and two integrated 0–10 V analog inputs.

03 · EXECUTE
CPU 1214C · 75 KB

Run the TIA Portal project, program blocks and configured technology functions.

04 · ACTUATE
10 relay outputs

Switch the configured field loads through the integrated 2 A relays.

SYSTEM REFERENCE
Electrical, mechanical and lifecycle data
Supply
20.4–28.8 V DC
Digital inputs
14 · 24 V DC
Relay outputs
10 · 2 A
Analog inputs
2 · 0–10 V
Work memory
75 KB
PROFINET
1 interface
Dimensions
110 × 100 × 75 mm
Net weight
0.438 kg
Discontinued-generation replacement

Siemens identifies a later CPU 1214C generation as the successor. Treat any change as an engineered migration: verify TIA Portal version, firmware, memory, wiring and project compatibility.

COMMISSIONING HANDOVER
What to capture before replacement
Archive the TIA Portal project, CPU firmware, device name and IP address, retentive data, web-server settings, expansion modules and field wiring before replacement.
Order-time checklist
•Exact MLFB and firmware
•TIA Portal project backup
•PROFINET name and IP
•Expansion-module order
•Supply and relay loads
•Destination and required date
FAQ
CPU 1214C selection questions
Does it include analog outputs?

No. This CPU 1214C variant has two integrated analog inputs; analog outputs require a suitable signal module or board.

Does it use PROFINET?

Yes. The CPU includes a PROFINET interface for engineering and automation communication.

Can another CPU 1214C replace it?

Only after checking the full MLFB, supply/output version, firmware generation, project support, memory and expansion configuration.
