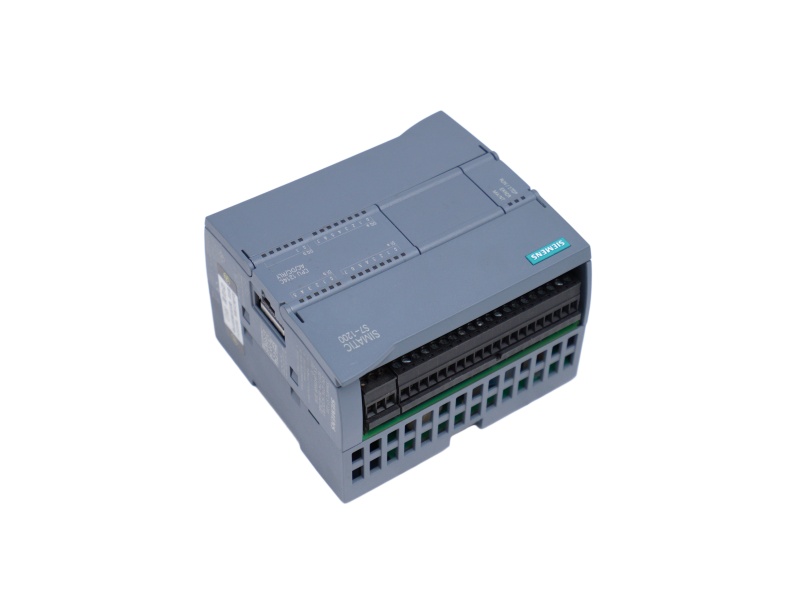

Siemens 6ES7214-1BG40-0XB0 CPU 1214C front view

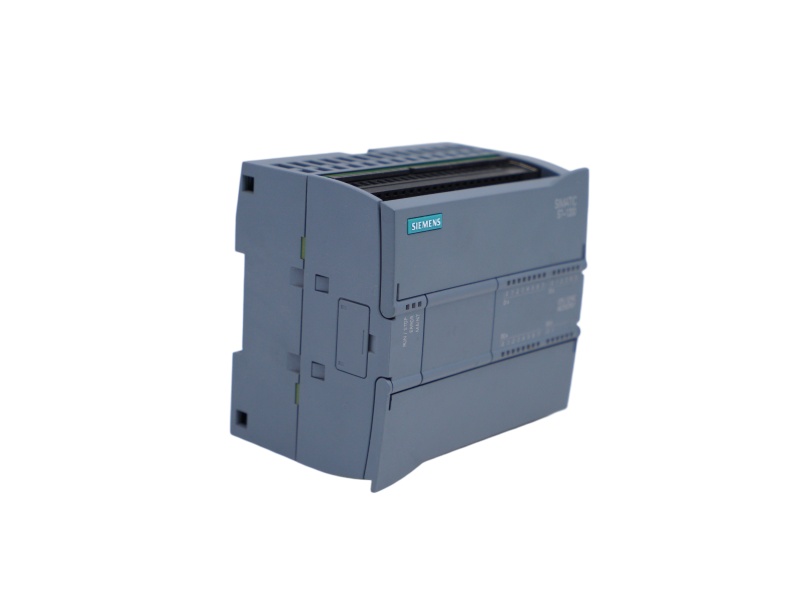

Siemens SIMATIC S7-1200 CPU 1214C AC DC relay side view
Siemens 6ES7214-1BG40-0XB0 terminal and top view

Siemens 6ES7214-1BG40-0XB0 SIMATIC S7-1200 CPU 1214C AC/DC/Relay

6ES7214-1BG40-0XB0 is the Siemens SIMATIC S7-1200 CPU 1214C AC/DC/relay compact CPU, combining an 85–264 V AC supply, integrated digital and analog inputs, relay outputs and PROFINET connectivity in one controller.

Power supply
85–264 V AC, 47–63 Hz
Integrated I/O
14 DI · 10 relay DO · 2 AI
Work memory
150 KB
Engineering
STEP 7 V20 or higher
Firmware
V4.7
Lifecycle
PM300: Active Product

Send the exact MLFB, quantity, destination and required date so we can check current availability, documentation and lifecycle details.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7214-1BG40-0XB0
Country of Origin Germany
Lead Time 40 working days ex works (verify region and order date)
After-Sales Support Siemens spare part delivery, repair and exchange services
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-1200 · AC POWER CONTROL
6ES7214-1BG40-0XB0
CPU 1214C · AC/DC/Relay compact CPU
PM300 ACTIVE PRODUCT14 DI · 10 DO · 2 AIPROFINET
ELECTRICAL SNAPSHOT
Supply range85–264 V AC
Frequency47–63 Hz
Relay outputs10 × 2 A
Work memory150 KB
DIGITAL INPUTS
14 × 24 V DC
DIGITAL OUTPUTS
10 × Relay
ANALOG INPUTS
2 × 0–10 V DC
LOAD MEMORY
4 MB integrated
CONTROL ARCHITECTURE
One CPU, three selection checkpoints
Compact AC-powered controller
The Siemens SIMATIC S7-1200 CPU 1214C combines an AC mains power supply, 24 V DC digital inputs, relay outputs, two voltage analog inputs and PROFINET connectivity. It is suited to compact panels that require relay switching and direct AC supply in one CPU.
Supply85–264 V AC
Frequency47–63 Hz
FirmwareV4.7
EngineeringSTEP 7 V20+
MLFB checkpoint
The 1BG40 configuration is AC/DC/relay. Do not treat it as interchangeable with a DC/DC/DC CPU simply because both products belong to the CPU 1214C family. Confirm supply and output technology before ordering.
ENGINEERING WORKFLOW
Plan the project in three passes
01 · POWER
Confirm panel supply
Use an 85–264 V AC source at 47–63 Hz. Siemens lists support for both 120 V and 230 V AC systems.
02 · FIELD I/O
Validate every load
Map 14 digital inputs, 10 relay outputs rated 2 A and two 0–10 V DC analog inputs against the machine I/O list.
03 · SOFTWARE
Match the toolchain
The official record specifies firmware V4.7 and engineering with STEP 7 V20 or higher.
POWER & SYSTEM DATA
Technical reference matrix
Rated input100 mA at 120 V
Rated input50 mA at 240 V
Maximum input300 mA at 120 V
Maximum input150 mA at 240 V
Maximum inrush20 A at 264 V
Typical loss14 W
Backplane busMax. 1,600 mA
Net weight0.454 kg
Relay load planning
Size upstream protection and downstream loads from the complete Siemens technical data. Relay output suitability depends on the load type and switching conditions; check the current product manual before final panel design.
LIFECYCLE CONTROL
Active product with a published phase-out date
PM300: Active Product
Siemens currently identifies this order number as active. The official product record also lists product phase-out from 1 November 2026. Verify the latest regional lifecycle status and migration guidance when ordering.
Lead time: 40 working days ex works
Origin: Germany
Commodity: 85371091
Package: 11.10 × 11.70 × 8.50 cm
BUYER FAQ
Lifecycle and version questions
Is this model discontinued?
No. It is currently PM300 Active Product, with product phase-out listed from 1 November 2026.
Is it the same as 1AG40?
No. 1BG40 is AC/DC/relay; 1AG40 is the DC/DC/DC CPU 1214C variant.
Is there a direct replacement?
The current record does not present a universal drop-in successor. Migration must be checked against the complete application.
RELATED SIEMENS MODELS
S7 CPUs, I/O and communication options
6ES7241-1CH32-0XB0
6ES7223-1BL32-0XB0
6ES7223-1PL32-0XB0
6ES7222-1HH32-0XB0
6ES7288-1SR40-0AA0
6ES7214-1AG40-0XB0
6ES7231-5PA30-0XB0
6ES7288-1ST30-0AA0
6ES7212-1BE40-0XB0
6ES7288-1SR60-0AA0
6ES7222-1BH32-0XB0
6ES7221-1BF32-0XB0
6ES7221-1BH32-0XB0
6ES7216-2BD23-0XB8
6ES7212-1AE40-0XB0
6ES7288-5CM01-0AA0
6ES7288-1SR20-0AA0
6ES7214-1HG40-0XB0
6ES7215-1AG40-0XB0
6ES7211-1BE40-0XB0
6ES7288-1ST60-0AA0
6ES7215-1HG40-0XB0
6ES7241-1CH30-1XB0
6ES7223-1BH32-0XB0
Procurement verification
Send the exact MLFB, quantity, destination and required date. Include the power architecture, relay load summary, I/O list, firmware and TIA Portal version.
✓ Availability and lifecycle review
✓ Documentation matching
✓ Model and I/O verification
✓ Export-ready packing support
Official technical references: Siemens Industry Mall / SiePortal product record and Siemens technical data sheet for 6ES7214-1BG40-0XB0. Lifecycle and lead-time data can change by region and date.
