Siemens 6ES7214-1AG40-0XB0 CPU 1214C front view

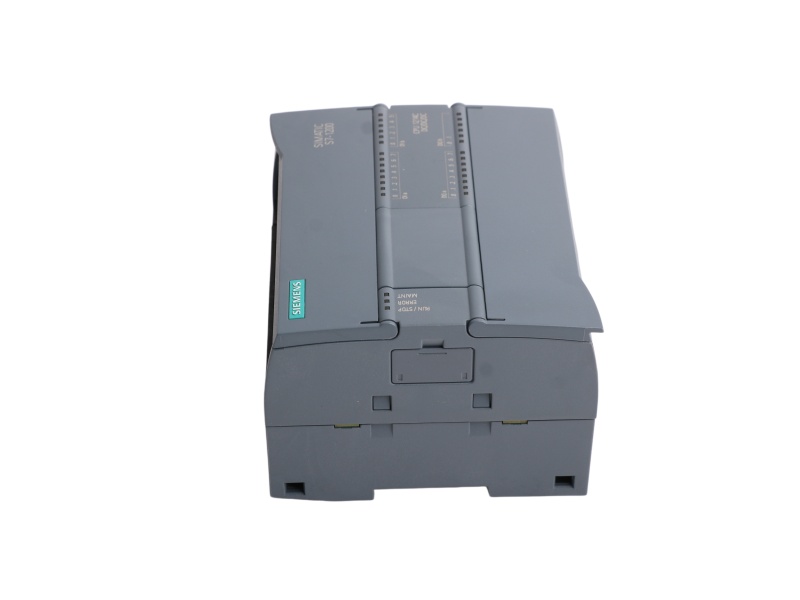

Siemens SIMATIC S7-1200 CPU 1214C top view
Siemens 6ES7214-1AG40-0XB0 compact CPU angle view

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200 CPU 1214C DC/DC/DC

6ES7214-1AG40-0XB0 is a Siemens SIMATIC S7-1200 CPU 1214C DC/DC/DC compact controller with integrated digital and analog I/O.

DIGITAL INPUTS
14 × 24 V DC
DIGITAL OUTPUTS
10 × 24 V DC
ANALOG INPUTS
2 × 0–10 V DC
MEMORY
150 KB
POWER
20.4–28.8 V DC
STATUS
PM300 Active

Built for compact machine and process-control applications where integrated I/O, PROFINET communication and expandable S7-1200 architecture are required.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7214-1AG40-0XB0
Country of Origin Germany
Lead Time 45 working days ex works (verify region and order date)
After-Sales Support Siemens spare part delivery, repair and exchange services
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-1200 · COMPACT AUTOMATION
6ES7214-1AG40-0XB0
CPU 1214C · DC/DC/DC · Integrated I/O
ACTIVE PRODUCT150 KB MEMORYPROFINETREQUEST A QUOTE
CONTROLLER MAP

Compact CPU, onboard signals and network access

CPU 1214C
Compact controller
14 DI
24 V DC inputs
10 DO
24 V DC outputs
2 AI
0–10 V DC
150 KB
Program/data memory
1 × RJ45
PROFINET interface
PRODUCT POSITIONING

A compact controller for connected machine automation

6ES7214-1AG40-0XB0 is a Siemens SIMATIC S7-1200 CPU 1214C in DC/DC/DC configuration. Its onboard I/O combines 14 digital inputs at 24 V DC, 10 transistor digital outputs at 24 V DC and two 0–10 V DC analog inputs in one compact controller.

Siemens specifies a 20.4–28.8 V DC supply range, 150 KB program/data memory and one isolated PROFINET interface with a single RJ45 port. The interface supports PROFINET IO Controller and Device functions, SIMATIC communication, Open IE communication and the integrated web server.

SIGNAL & CONNECTIVITY PROFILE

What the integrated hardware supports

Fast transistor outputs

The ten 24 V DC digital outputs are rated at 0.5 A for signal “1”; selected pulse outputs support frequencies up to 100 kHz with resistive loads.

Integrated analog acquisition

Two 0–10 V inputs provide 10-bit resolution including sign, with input resistance of at least 100 kΩ.

PROFINET roles

The isolated RJ45 interface supports PROFINET IO Controller and Device operation, plus SIMATIC and Open IE communication.

Diagnostics access

The CPU includes an integrated web server, supporting browser-based access to configured diagnostic and service information.

COMMISSIONING FLOW

Three decisions before power-up

STEP 1

Map the I/O

Confirm that the integrated 14 DI, 10 DO and 2 AI channels cover the base machine signal list.

STEP 2

Plan expansion

Select signal, communication or signal-board options using current Siemens compatibility data.

STEP 3

Commission PROFINET

Assign the device identity, verify the 24 V DC supply and complete hardware configuration in the supported TIA Portal environment.

SYSTEM REFERENCE

Key technical data

Supply voltage20.4–28.8 V DC
Integrated I/O14 DI / 10 DO / 2 AI
Work memory150 KB
Load memory4 MB integrated
PROFINET1 interface / 1 RJ45
Typical power loss12 W

Lifecycle reference

Siemens currently identifies this order number as PM300: Active Product.

The official product record also lists product phase-out from 1 November 2026. Buyers planning long-life machinery should verify the latest lifecycle status, regional availability and migration guidance at order time.

Lifecycle and lead-time information can change by region and date; the current Siemens product record remains authoritative.

INSTALLATION HANDOVER

CPU and panel checklist

01   Verify 20.4–28.8 V DC supply capacity and protection.

02   Map integrated and expansion I/O against the final signal list.

03   Confirm the exact firmware and TIA Portal compatibility.

04   Validate PROFINET addressing, topology and cybersecurity settings.

05   Record the MLFB, firmware, memory card and project archive.

BUYER FAQ

Questions before ordering

Is 6ES7214-1AG40-0XB0 discontinued?

Not yet according to the current Siemens record: it remains PM300 Active Product. Siemens also publishes a phase-out date of 1 November 2026, so verify status at order time.

What are the CPU 1214C power variants?

The 1AG40 version is DC/DC/DC. Siemens also lists CPU 1214C configurations with AC supply and relay outputs or DC supply and relay outputs; compare the complete MLFB and I/O characteristics.

Is there an official direct replacement?

The current Siemens product record does not identify a direct successor. For a lifecycle-driven migration, confirm the required I/O, communications, firmware and engineering-software compatibility with Siemens.

RELATED SIEMENS MODELS

S7 CPUs, I/O and accessories

6ES7241-1CH32-0XB0
6ES7223-1BL32-0XB0
6ES7223-1PL32-0XB0
6ES7222-1HH32-0XB0
6ES7288-1SR40-0AA0
6ES7231-5PA30-0XB0
6ES7288-1ST30-0AA0
6ES7212-1BE40-0XB0
6ES7288-1SR60-0AA0
6ES7222-1BH32-0XB0
6ES7221-1BF32-0XB0
6ES7221-1BH32-0XB0
6ES7212-1AE40-0XB0
6ES7288-5CM01-0AA0
6ES7288-1SR20-0AA0
6ES7214-1HG40-0XB0
6ES7215-1AG40-0XB0
6ES7211-1BE40-0XB0
6ES7288-1ST60-0AA0
6ES7215-1HG40-0XB0
6ES7241-1CH30-1XB0
6ES7223-1BH32-0XB0
6ES7288-3AM06-0AA0
6ES7288-3AE08-0AA0
6ES7216-2BD23-0XB8
6ES7288-2DR32-0AA0
6ES7222-1BF32-0XB0
6ES7288-1SR60-0AA1
6ES7234-4HE32-0XB0
6ES7214-1AG31-0XB0
6ES7215-1BG40-0XB0
6ES7231-4HD32-0XB0
6ES7288-2DR08-0AA0
6ES7288-1CR40-0AA0
6ES7211-1AE40-0XB0
6ES7288-3AE04-0AA0

Procurement support

Request availability verification, documentation matching, lifecycle review, export-ready packing and a model check against your I/O list and TIA Portal environment.

Include with your request: Exact MLFB and required quantity; CPU firmware and TIA Portal version; integrated and expansion I/O list; destination country and required date.
SEND YOUR BOM

Official technical references: Siemens SiePortal product record and Siemens 6ES7214-1AG40-0XB0 data sheet. Product names and trademarks belong to their respective owners.
