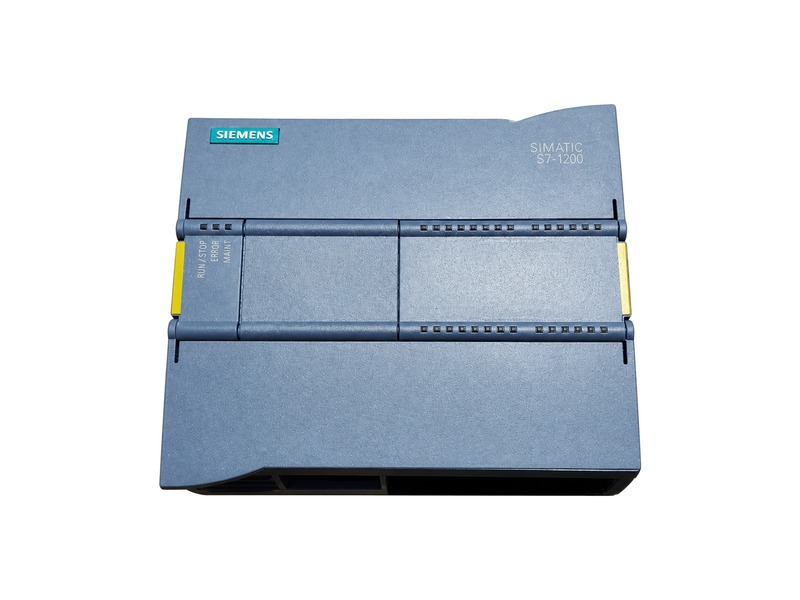

Siemens 6ES7214-1AF40-0XB0 front view

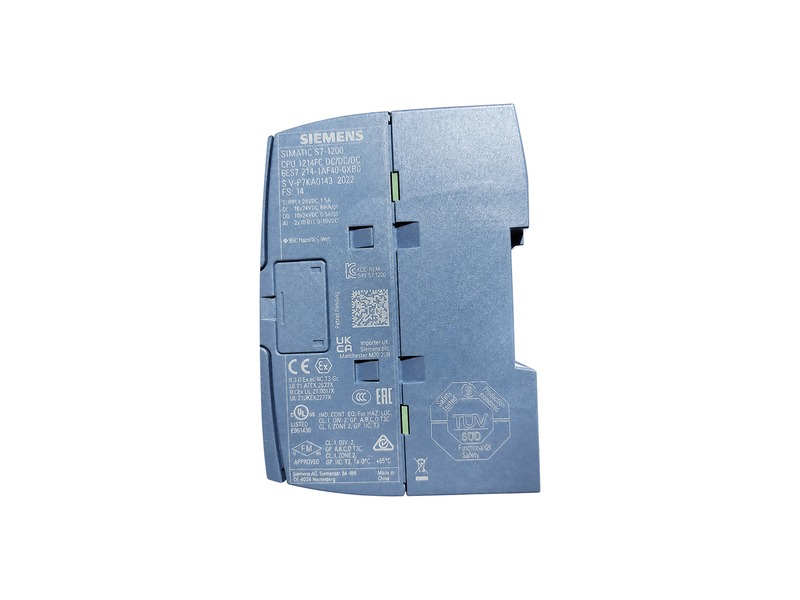

Siemens 6ES7214-1AF40-0XB0 side view
Siemens 6ES7214-1AF40-0XB0 interface view

Siemens 6ES7214-1AF40-0XB0 SIMATIC S7-1200F CPU 1214 FC

6ES7214-1AF40-0XB0 is the SIMATIC S7-1200F CPU 1214 FC compact fail-safe controller with DC/DC/DC design, 14 digital inputs, 10 digital outputs, two 0–10 V analog inputs and 200 KB program/data memory.

Digital inputs
14 DI · 24 V DC
Digital outputs
10 DO · 24 V DC
Analog inputs
2 AI · 0–10 V
Supply
20.4–28.8 V DC
Memory
200 KB
CPU class
Fail-safe 1214 FC

Send the installed system, firmware, wiring and application requirements for an exact compatibility check.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7214-1AF40-0XB0
Country of Origin China
Lead Time 1 working day ex works (verify region and order date)
After-Sales Support Siemens spare-part delivery, repair and exchange services
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-1200F · FAIL-SAFE CPU
6ES7214-1AF40-0XB0
DC/DC/DC · 14 DI · 10 DO · 2 AI
Active Product · Phase-out scheduled 01 Nov 2026Analog inputs · 2 AI · 0–10 VSupply · 20.4–28.8 V DC
CONTROL SNAPSHOT
Digital inputs
14 DI · 24 V DC
Digital outputs
10 DO · 24 V DC
Analog inputs
2 AI · 0–10 V
Supply
20.4–28.8 V DC
Memory
200 KB
CPU class
Fail-safe 1214 FC
PRODUCT POSITIONING

Compact fail-safe control with onboard I/O

Official product identity

SIMATIC S7-1200F CPU 1214 FC compact fail-safe controller with DC/DC/DC design, 14 digital inputs, 10 digital outputs, two 0–10 V analog inputs and 200 KB program/data memory.

Order-code checkpoint

Confirm the F-CPU requirement, DC/DC/DC output type, onboard I/O count, firmware/TIA Portal compatibility, fail-safe program and the S7-1200 G2 transition plan.

SIGNAL MAP

From identification to controlled recommissioning

01 · IDENTIFY
Exact MLFB
Use 6ES7214-1AF40-0XB0 as the order-code checkpoint.
02 · VERIFY
System context
Check the installed hardware, wiring, networks and firmware.
03 · RESTORE
Project data
Restore only the documented parameters and configuration.
04 · VALIDATE
Commissioning
Test diagnostics, interlocks and the controlled machine function.
SYSTEM REFERENCE

Electrical, interface and lifecycle data

Digital inputs
14 DI · 24 V DC
Digital outputs
10 DO · 24 V DC
Analog inputs
2 AI · 0–10 V
Supply
20.4–28.8 V DC
Memory
200 KB
CPU class
Fail-safe 1214 FC
Compatibility matters. Confirm the F-CPU requirement, DC/DC/DC output type, onboard I/O count, firmware/TIA Portal compatibility, fail-safe program and the S7-1200 G2 transition plan.
COMMISSIONING HANDOVER

What to capture before replacement

Archive the complete TIA Portal project, hardware configuration, F-signature, firmware version, IP settings, memory data and field wiring before replacement.

Order-time checklist

• Exact MLFB and quantity
• Firmware and project backup
• Network and addressing data
• I/O, feedback and wiring
• Lifecycle / successor review
• Destination and required date
FAQ
6ES7214-1AF40-0XB0 selection questions
How much onboard I/O is included?

Siemens specifies 14 digital inputs, 10 digital outputs and two 0–10 V analog inputs.

What is the supply range?

The official product record specifies 20.4–28.8 V DC.

Is this an F-CPU?

Yes. It is the fail-safe CPU 1214 FC variant.
