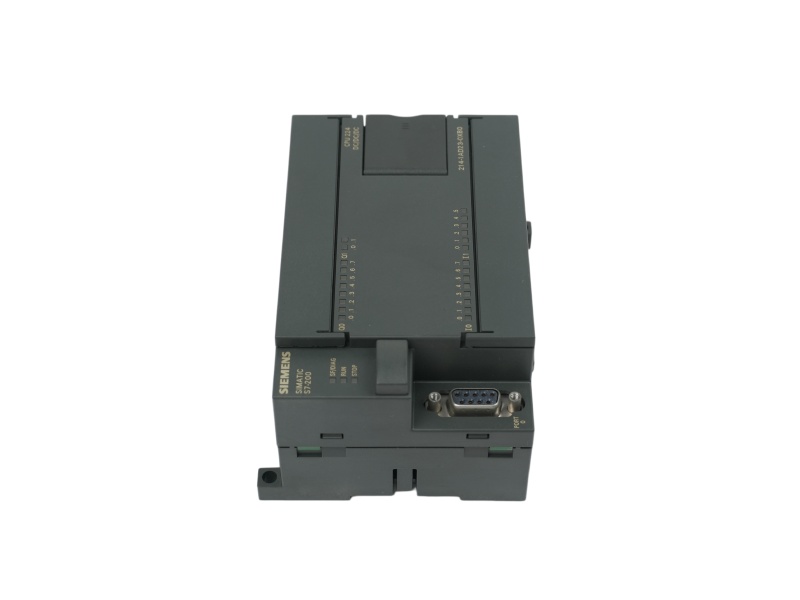

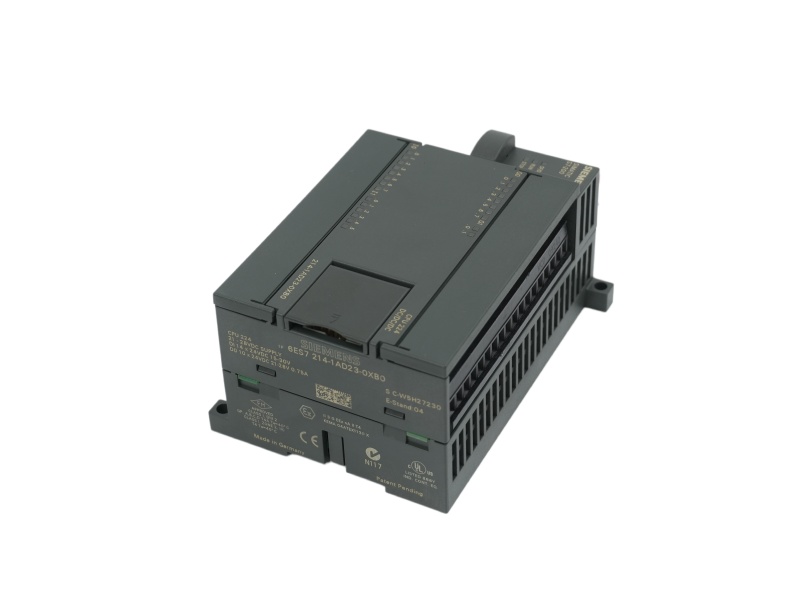

Siemens 6ES7214-1AD23-0XB0 SIMATIC S7-200 CPU 224 DC/DC/DC
Siemens 6ES7214-1AD23-0XB0 SIMATIC S7-200 CPU 224 DC/DC/DC
Siemens 6ES7214-1AD23-0XB0 SIMATIC S7-200 CPU 224 DC/DC/DC

Siemens 6ES7214-1AD23-0XB0 SIMATIC S7-200 CPU 224 DC/DC/DC

S7-200 Compact Automation

CPU 224 DC/DC/DC

Compact 24 V DC controller for maintaining established SIMATIC S7-200 machines.

Integrated I/O
14 DI / 10 DO
Supply
24 V DC
For a faster quotation · Include the MLFB, quantity, destination and required date.
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens
Item number 6ES7214-1AD23-0XB0
Country of Origin Confirm by shipment origin
Lead Time On request
After-Sales Support Model verification, documentation matching and export-ready packing
HS Code / Commodity code Confirm before shipment
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-200 · CPU 224

6ES7214-1AD23-0XB0

Compact DC-powered PLC for established machine control and S7-200 maintenance projects.

SIEMENS SPARE PART14 DI · 10 DO24 V DC
DIRECT CONTACT

Sales Manager May

Send the order number, quantity, destination and required date.

E-mail: ab@mooreplc.comWhatsApp: +86-18106909650
PRODUCT ROLE

A compact service CPU for installed S7-200 systems

This MLFB identifies a SIMATIC S7-200 CPU 224 compact unit with 24 V DC power, integrated digital I/O and expansion capability.

The CPU integrates 14 digital inputs and 10 DC transistor outputs. Siemens lists 12 KB program work memory, with 8 KB available when runtime editing is active, plus 8 KB integrated data memory.

It is suited to maintenance and controlled life-extension work where the machine architecture, STEP 7-Micro/WIN project and installed S7-200 peripherals must remain compatible.

ENGINEERING SNAPSHOT

Key technical data

POWER
24 V DC
20.4–28.8 V
INTEGRATED I/O
14 DI
10 DC DO
MEMORY
12 KB program
8 KB data
ENCLOSURE
IP20
Approx. 360 g
INSTALLATION REFERENCE

Mechanical and ambient checks

Dimensions are approximately 120.5 × 80 × 62 mm. Operation is specified from 0 to 55 °C horizontally and 0 to 45 °C vertically. Verify clearance, wiring access and heat conditions.

APPLICATION FIT

What to confirm before ordering

Match the full MLFB, DC supply, transistor output type, expansion modules, communication hardware and archived STEP 7-Micro/WIN project.

LIFECYCLE & MIGRATION

Plan around an installed-base spare part

Siemens identifies this order number as a spare part. For an existing machine, verify the exact hardware, software project and peripheral compatibility before purchase.

A universal drop-in successor is not assumed. Migration to a current SIMATIC controller requires review of I/O, communication, program conversion, electrical design and commissioning.

CUSTOMER QUESTIONS

FAQ

Is this product discontinued?

Siemens currently presents it as a spare part. Availability should be checked for the destination and required date.

Is there a direct replacement?

A universal plug-in replacement should not be assumed. Confirm the complete configuration and migration scope.

What support is available?

Request model verification, documentation matching, lifecycle review, export-ready packing and a quotation.
