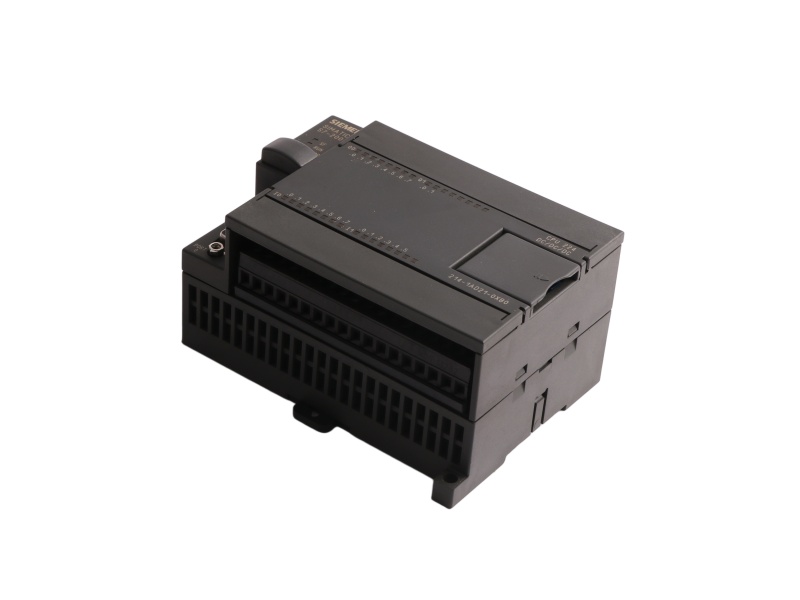

Siemens 6ES7214-1AD21-0XB0 product front view

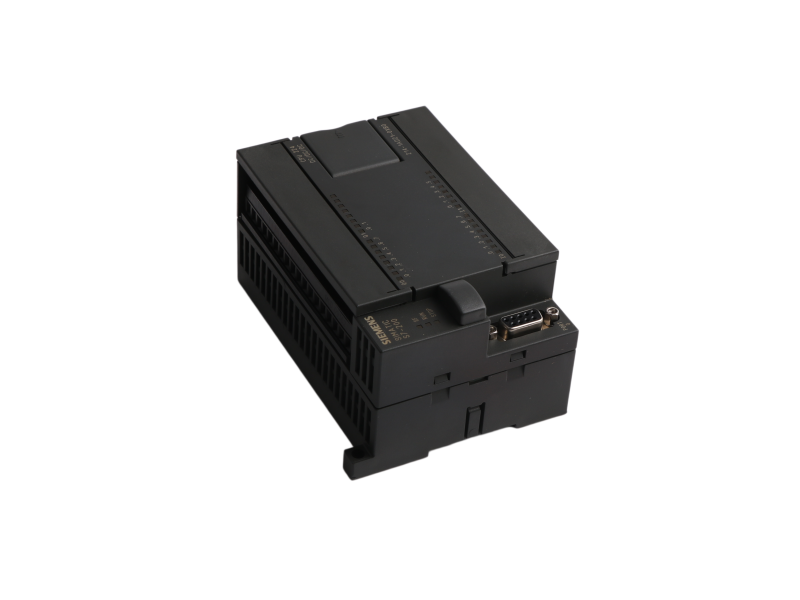

Siemens 6ES7214-1AD21-0XB0 product side view
Siemens 6ES7214-1AD21-0XB0 product interface view

Siemens 6ES7214-1AD21-0XB0 SIMATIC S7-200 CPU 224 DC/DC/DC

6ES7214-1AD21-0XB0 is a Siemens SIMATIC S7-200 CPU 224 compact controller with a 24 V DC supply, 14 digital inputs and 10 transistor outputs.

Controller
CPU 224
Supply
24 V DC supply
Digital I/O
14 DI · 10 DO
Output type
10 transistor outputs
Memory
8 KB program · 5 KB data
Lifecycle
PM500 Discontinued

Send the exact MLFB, project version, connected modules and application requirements for a complete compatibility check.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7214-1AD21-0XB0
Country of Origin Germany
Lead Time Contact for Siemens spare-part availability
After-Sales Support Siemens spare-part delivery, repair and exchange services
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC S7-200 · MICRO AUTOMATION
6ES7214-1AD21-0XB0
CPU 224 · DC/DC/DC
PM500 Discontinued24 V DC SUPPLYTRANSISTOR OUTPUTS
CONTROL SNAPSHOT
DIGITAL I/O14 IN · 10 OUT
MEMORY8 KB · 5 KB
SUPPLY24 V DC supply
OUTPUTS10 transistor outputs
EXPANSIONS7-200 modules
LIFECYCLEPM500 Discontinued
PRODUCT POSITIONING
Compact control for established S7-200 machine systems
Integrated CPU and onboard I/O

The CPU 224 combines the controller, 24 v dc supply, 14 digital inputs and 10 transistor outputs in a compact S7-200 unit. The 21 hardware generation provides 8 KB of program memory and 5 KB of data memory.

Order-code checkpoint

6ES7214-1AD21-0XB0 identifies the DC/DC/DC version. Confirm the complete MLFB, supply circuit and output load type before replacing another CPU 224 variant.

SIGNAL MAP
From field signals to compact machine control
01 · POWER
24 V DC supply

Match the incoming supply and terminal arrangement of the installed CPU.

02 · ACQUIRE
14 digital inputs

Read the machine sensors and discrete control signals.

03 · EXECUTE
CPU 224 logic

Run the STEP 7-Micro/WIN program and configured functions.

04 · ACTUATE
10 transistor outputs

Switch the connected loads through the transistor output stage.

SYSTEM REFERENCE
Electrical, mechanical and lifecycle data
Supply
24 V DC supply
Digital inputs
14
Digital outputs
10
Output technology
Transistor
Program memory
8 KB
Data memory
5 KB
Protection
IP20
Lifecycle
PM500 Discontinued
Legacy-series compatibility

Do not substitute a different CPU 224 generation only by matching the front-panel I/O count. Verify power supply, output technology, program memory, firmware and Micro/WIN project compatibility.

COMMISSIONING HANDOVER
What to capture before replacement
Archive the STEP 7-Micro/WIN project, system block, communication settings, retentive data requirements, expansion-module order and field wiring before replacement.
Order-time checklist
•Exact MLFB and suffix
•Supply and output load type
•Micro/WIN project backup
•Communication parameters
•Expansion-module order
•Destination and required date
FAQ
CPU 224 replacement questions
Is this an S7-1200 CPU?

No. It is a SIMATIC S7-200 CPU 224 and uses the S7-200 engineering and expansion environment.

Are the outputs relays?

No. This DC/DC/DC variant uses ten DC transistor outputs.

Can another CPU 224 replace it directly?

Only after checking the full MLFB, supply, output type, memory generation, firmware, communication settings and project backup.

RELATED INDUSTRIAL MODELS
Selected control and automation references
1756-cnbr/E
ALLEN-BRADLEY
EDS-508A
MOXA
6EP1331-2BA10
SIEMENS
EL5401D8011
BECKHOFF
BMXP341000 CPU340-10
SCHNEIDER ELECTRIC
AAI143-H53
YOKOGAWA
5WG1 527-1AB02
SIEMENS
1794-OF4I
ALLEN-BRADLEY
NBB2-8GM30-E2-0.5M-V1
PEPPERL+FUCHS
6ES7658-1GX08-2YT7
SIEMENS
3RH2140-1BG40
SIEMENS
1783-US5T
ALLEN-BRADLEY
NJ20+U1+A2
PEPPERL+FUCHS
TSXPSY3610
SCHNEIDER ELECTRIC
EDS-608 EDS608
MOXA
CX1001-0011
BECKHOFF
eds-205a
MOXA
TSXRAM25616
SCHNEIDER ELECTRIC
KFD2-ST2-Ex1.LB
PEPPERL+FUCHS
ADV151-P60
YOKOGAWA
TM118 099-1003-07
SCHNEIDER ELECTRIC
ADV551-PF0
YOKOGAWA
ADV151-P10
YOKOGAWA
440R-G23216
ALLEN-BRADLEY
Control-system check

Share the model, fieldbus and safety requirements for a fast compatibility check.

✓ Model and lifecycle review
✓ Network and I/O check
✓ Export-ready support
E-mail: ab@mooreplc.com

Related Products
