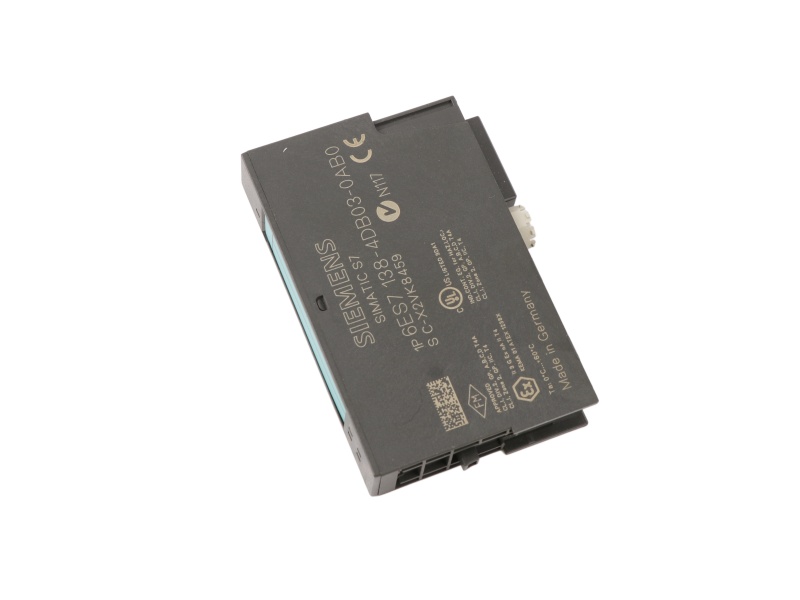

Siemens 6ES7138-4DB03-0AB0 front view

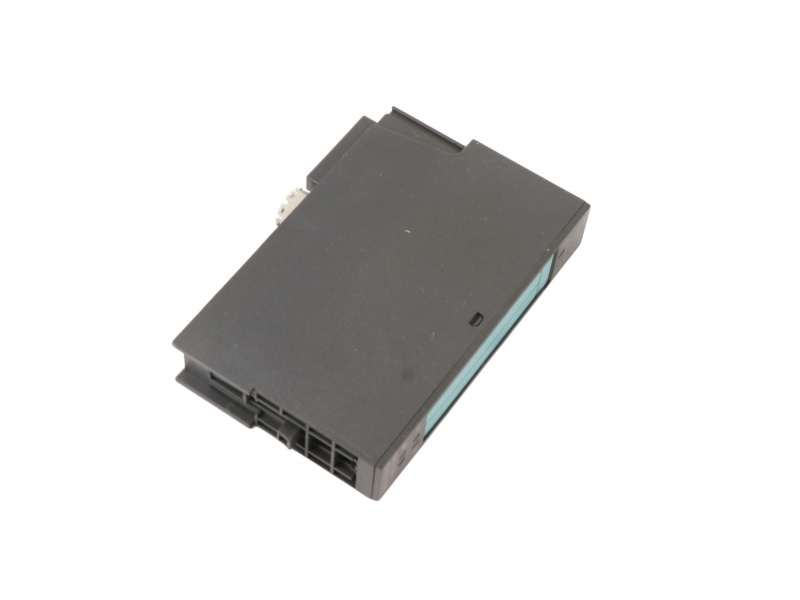

Siemens 6ES7138-4DB03-0AB0 side view
Siemens 6ES7138-4DB03-0AB0 interface view

Siemens 6ES7138-4DB03-0AB0 SIMATIC ET 200S SSI Electronic Module

6ES7138-4DB03-0AB0 is the SIMATIC ET 200S electronic module for one SSI absolute encoder, supporting up to 25-bit data at 1 MHz, digital input, comparison function, isochronous operation and hot swapping.

Channels
1 SSI
Resolution
Up to 25 bit
Clock
Up to 1 MHz
Module width
15 mm
Supply
24 V DC
Operation
Isochronous

Send the installed system, firmware, wiring and application requirements for an exact compatibility check.

Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6ES7138-4DB03-0AB0
Country of Origin Germany
Lead Time On request (verify region and order date)
After-Sales Support Siemens spare-part delivery, repair and exchange services
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
SIMATIC ET 200S · 1 SSI
6ES7138-4DB03-0AB0
25-bit · 1 MHz · Isochronous
Product CancellationClock · Up to 1 MHzModule width · 15 mm
CONTROL SNAPSHOT
Channels
1 SSI
Resolution
Up to 25 bit
Clock
Up to 1 MHz
Module width
15 mm
Supply
24 V DC
Operation
Isochronous
PRODUCT POSITIONING

SSI absolute-encoder acquisition in an ET 200S station

Official product identity

SIMATIC ET 200S electronic module for one SSI absolute encoder, supporting up to 25-bit data at 1 MHz, digital input, comparison function, isochronous operation and hot swapping.

Order-code checkpoint

Confirm the ET 200S station and terminal module, encoder data length and coding, SSI clock, supply, digital-input function, isochronous configuration and STEP 7 project.

SIGNAL MAP

From identification to controlled recommissioning

01 · IDENTIFY
Exact MLFB
Use 6ES7138-4DB03-0AB0 as the order-code checkpoint.
02 · VERIFY
System context
Check the installed hardware, wiring, networks and firmware.
03 · RESTORE
Project data
Restore only the documented parameters and configuration.
04 · VALIDATE
Commissioning
Test diagnostics, interlocks and the controlled machine function.
SYSTEM REFERENCE

Electrical, interface and lifecycle data

Channels
1 SSI
Resolution
Up to 25 bit
Clock
Up to 1 MHz
Module width
15 mm
Supply
24 V DC
Operation
Isochronous
Compatibility matters. Confirm the ET 200S station and terminal module, encoder data length and coding, SSI clock, supply, digital-input function, isochronous configuration and STEP 7 project.
COMMISSIONING HANDOVER

What to capture before replacement

Archive the hardware configuration, SSI parameters, encoder resolution and code, comparison settings, input wiring, supply arrangement, station address and timing configuration.

Order-time checklist

• Exact MLFB and quantity
• Firmware and project backup
• Network and addressing data
• I/O, feedback and wiring
• Lifecycle / successor review
• Destination and required date
FAQ
6ES7138-4DB03-0AB0 selection questions
Which encoder interface is provided?

The module provides one SSI interface for an absolute encoder.

What data length and clock are supported?

Siemens specifies up to 25 bits and up to 1 MHz.

Can the module be replaced during operation?

Siemens' technical data lists hot swapping capability for the ET 200S module.
