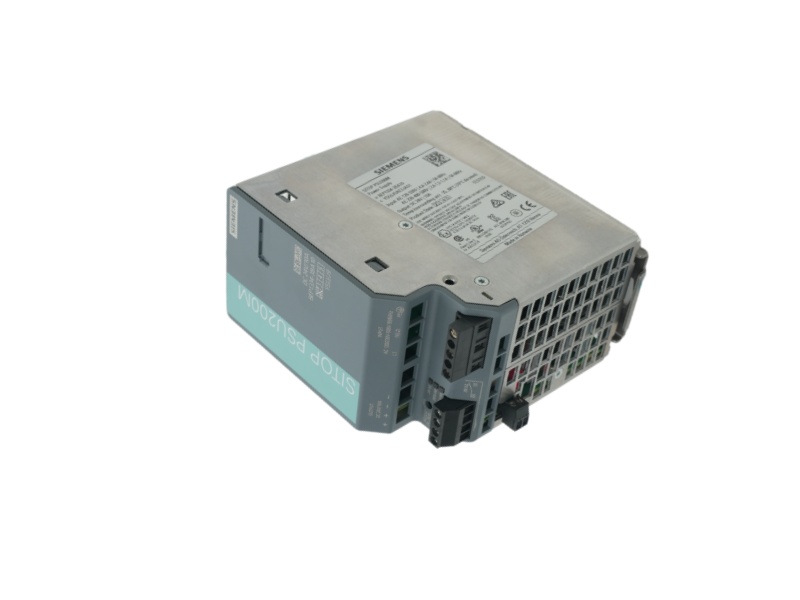

Siemens 6EP1334-3BA10 SITOP PSU200M Power Supply front view

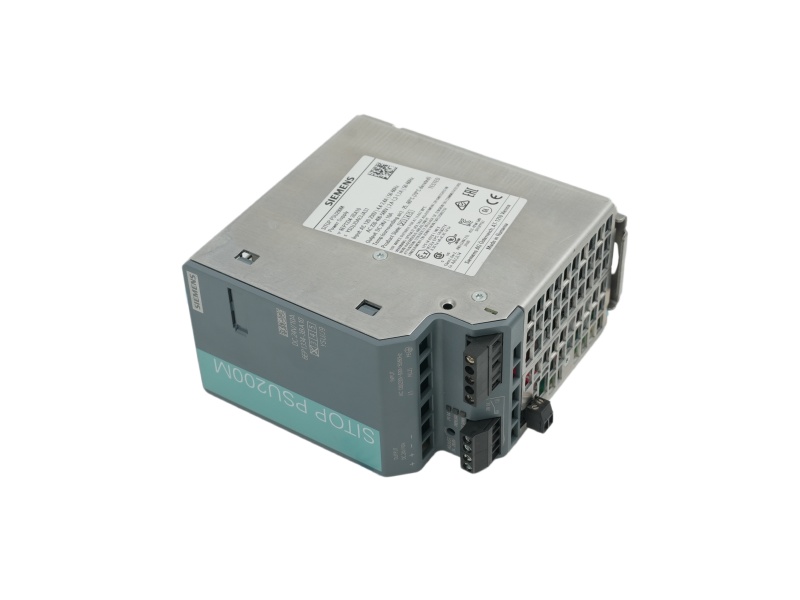

Siemens 6EP1334-3BA10 SITOP PSU200M Power Supply side view
Siemens 6EP1334-3BA10 SITOP PSU200M Power Supply detail view

Siemens 6EP1334-3BA10 SITOP PSU200M Power Supply

Application: Stabilized industrial power supply with selectable AC input range and regulated 24 VDC output.

Product familySITOP PSU200M
Minimum order1 Piece
Applicable ratings24 VDC / 10 A; 240 W
LifecyclePM300: Active Product
20 years of automation industry experience · Response within 24 hours
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 6EP1334-3BA10
Country of Origin Germany
Lead Time 2-3DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
Order-control reference
6EP1334-3BA10
24 VDC 10 A POWER SUPPLY

Match every character of the complete ordering reference, including its suffix. A visually similar component or nearby model must not be treated as interchangeable unless the installed configuration is confirmed.

Exact-order technical data

6EP1334-3BA10 Technical Data

Exact item scope
AC input ranges85-264 VAC or 176-550 VAC, selected on the device
Line frequency47-63 Hz
Rated input current4.4 A at 120 V; 2.4 A at 230 V; 1.1 A at 500 V
Regulated output24 VDC, 10 A, 240 W
Output adjustment24-28.8 VDC by potentiometer
Efficiency and losses91% efficiency; 24 W typical loss at rated output
Protection and environmentIP20; -25 to +70 °C operation with stated derating above 60 °C
Mechanical data70 × 125 × 121 mm; 0.8 kg
Mounting35 mm DIN rail according to EN 60715
Model-specific application profile

Wide-range control-power profile

The PSU200M converts a selectable single-phase AC supply into stabilized control voltage for industrial loads. Input-selector position, conductor protection and available cabinet ventilation must match the installation.

Control-power roleSupplies sensors, controllers and other 24 VDC cabinet loads within the rated power envelope
Parallel optionSiemens permits two units in parallel when additional output power is required
Status interfaceThe auxiliary contact can be incorporated into the cabinet alarm design

Commercial Confirmation

Industrial automation inspection and quotation support
Price and actual availabilityConfirmed for the requested quantity in the written quotation.
Supplied-item conditionIdentified in the quotation and order documents before purchase.
Warranty termsStated in the written quotation for the item being supplied.
Lead time and shippingPLC Autocontroller reference: 2–3 days. Actual timing is quoted by quantity, destination and required date.
Quote Preparation

Four details keep the quotation concise

ab@mooreplc.com
01Full item number
02Quantity
03Destination
04Required date
Product-Specific FAQ
Model-specific scope, verified data and ordering boundaries.
01

What minimum mains-buffering time is specified at rated current?

The Siemens technical record gives 25 ms; typical buffering is longer at the stated input conditions.

02

How does the unit behave during a short circuit?

The published characteristic provides about 30 A briefly in operation or approximately 12 A constant current during startup, with a selectable latching mode.

03

What MTBF is listed at 40 °C?

Siemens states 1,055,408 hours for the documented operating basis.

04

Which conductor sizes fit the main terminals?

The input and output screw terminals accept 0.2 to 2.5 mm² single-core or finely stranded conductors.
