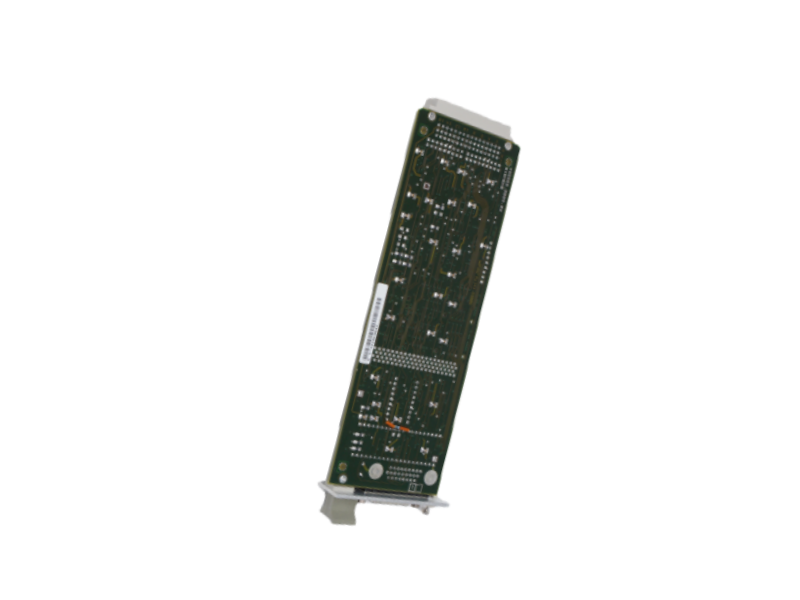

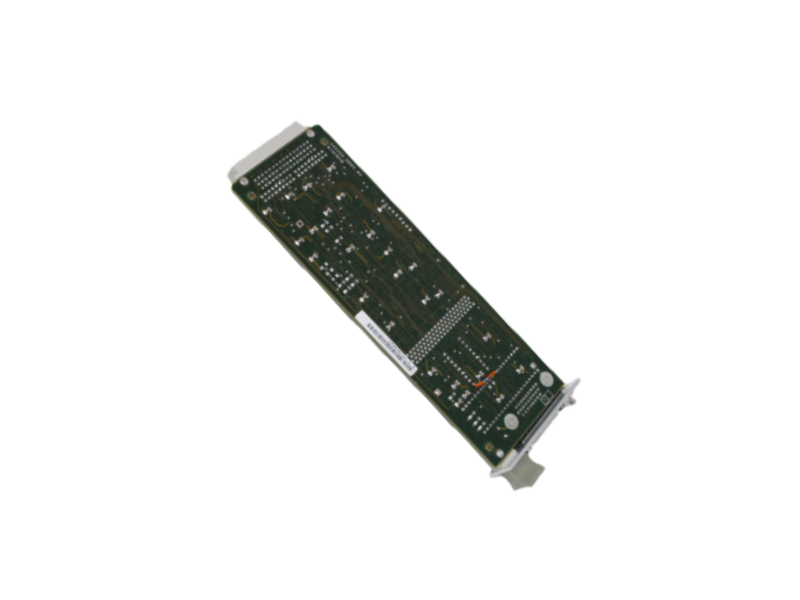

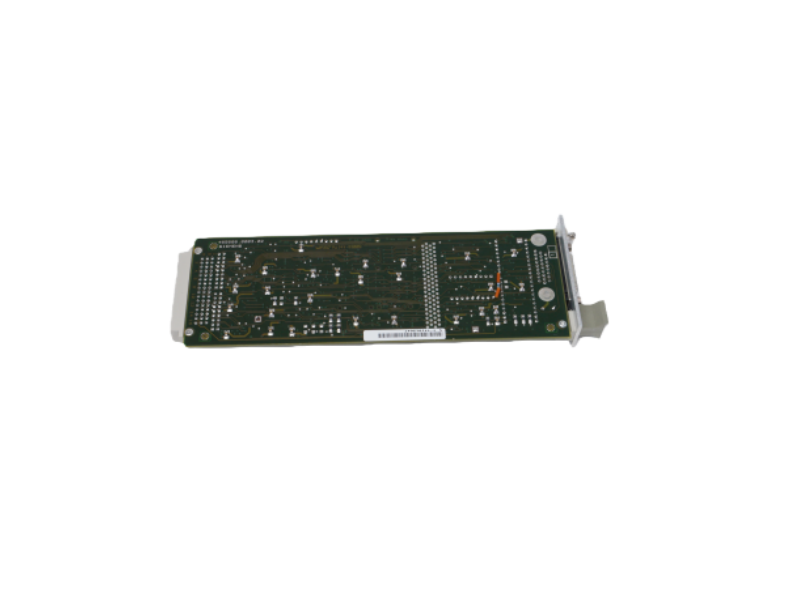

Description:6DD1688-0AD0 — communication interface submodule for high-speed data exchange and encoder/drive signal processing, enabling reliable real-time control in Siemens SIMADYN D systems.
Product condition: New
Packing condition:Factory Packing.
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | SIEMENS |
| Item number | 6DD1688-0AD0 |
| Country of Origin | Germany |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | Spare Parts Speed 20 Years
Sales Manager May | Email: ab@mooreplc.com | Tel: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
Ø Product Overview
The SIEMENS 6DD1688-0AD0 is a high-speed counter module in Siemens' SIMADYN D automation system, designed specifically for high-precision pulse signal acquisition and processing.This module can accurately count and measure encoders, speed measuring devices, and high-speed pulse signals, and is widely used in motion control, speed monitoring, and industrial automation systems to ensure real-time and reliable data acquisition.
Spec-Snapshot Table
|
Parameter |
Specification |
|
Product Model: |
6DD1688-0AD0 |
|
Manufacturer: |
Siemens |
|
Product Type: |
High-Speed Counter Module |
|
Input Type: |
Digital Pulse Input |
|
Number of Channels: |
2 Channels |
|
Signal Type: |
TTL / HTL |
|
Maximum Counting Frequency: |
Up to 500 kHz |
|
Counting Mode: |
Unidirectional / Bidirectional / A/B Phase Counting Resolution: 32-bit Counter |
Key Advantages
High-speed, high-precision counting
Supports pulse input up to 500kHz, meeting the needs of high-speed motion control and precision measurement.
Multiple counting modes
Supports A/B phase encoders, forward and reverse counting, and multiple triggering methods, adaptable to complex industrial scenarios.
Strong anti-interference capability
Adopts industrial-grade design, ensuring stable operation in complex electromagnetic environments.
Real-time data processing capability
Microsecond-level response time ensures the real-time performance of critical control systems.
High compatibility
Perfectly compatible with SIMADYN D systems, seamlessly integrating with other control modules.
