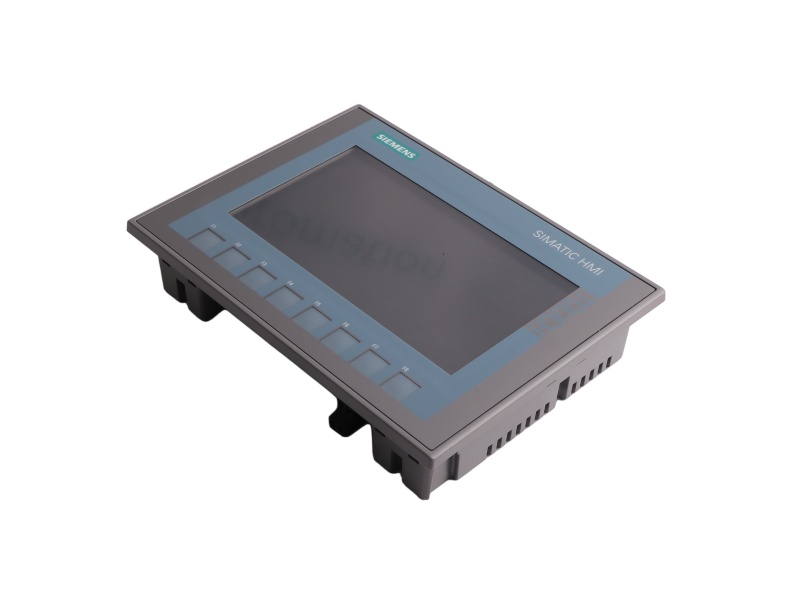

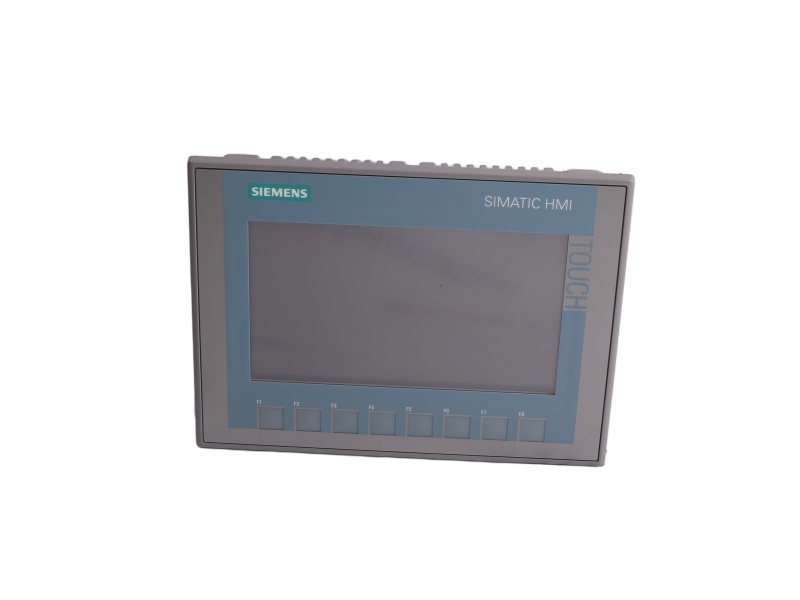

6AV2123-2GB03-0AX0 is the Siemens SIMATIC HMI KTP700 Basic, a 7-inch TFT Basic Panel with key/touch operation, 65,536 colors and a PROFINET interface.
Send the exact MLFB, project version, connected modules and application requirements for a complete compatibility check.
| Manufacturer | Siemens AG |
| Item number | 6AV2123-2GB03-0AX0 |
| Country of Origin | Germany |
| Lead Time | 1 working day ex works (verify region and order date) |
| After-Sales Support | Siemens spare-part delivery, repair and exchange services |
| HS Code / Commodity code | 85371091 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
The KTP700 Basic combines a 7-inch TFT display, physical keys and touch operation. Siemens specifies 65,536 colors and a PROFINET interface for connection to the automation system.
This order number identifies the KTP700 Basic. Confirm the panel cutout, display size, WinCC/TIA Portal project version, PROFINET addressing and all tag, alarm, recipe and user-management functions before replacement.
Restore the panel device name, IP address and PLC connection.
Display machine states, values, alarms and operator screens.
Provide the configured navigation and machine commands.
Download the approved WinCC/TIA Portal configuration and runtime data.
A different Basic Panel size changes the mounting cutout, resolution and screen layout. Preserve the exact KTP700 Basic order number and confirm the engineering-software version before migration.
Yes. Siemens specifies combined key and touch operation.
The panel includes a PROFINET interface.
Not without checking the mounting cutout, 800 × 480 screen layout, project conversion and available operator controls.
Share the model, fieldbus and safety requirements for a fast compatibility check.
