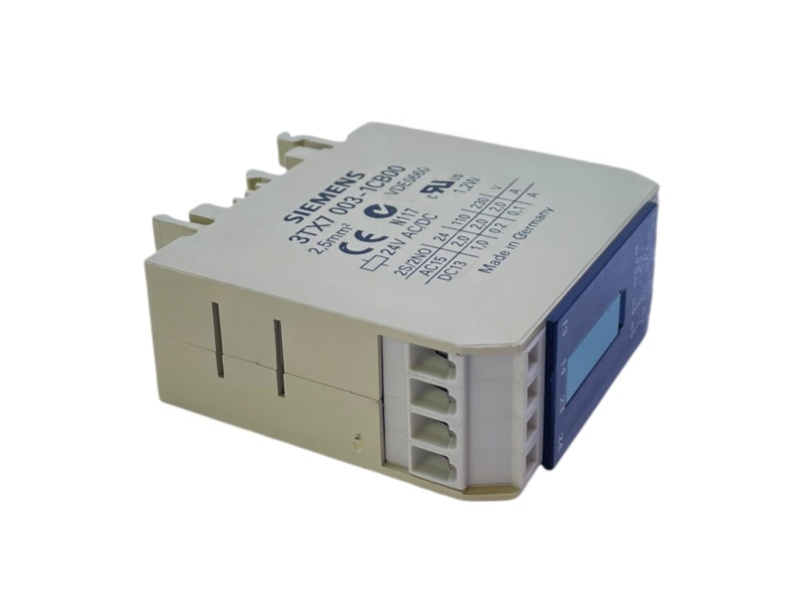

Siemens 3TX7003-1CB00 24 V AC/DC Interface Relay Image 2
Siemens 3TX7003-1CB00 24 V AC/DC Interface Relay Image 3

Siemens 3TX7003-1CB00 24 V AC/DC Interface Relay

SIEMENS · 3TX7 · INTERFACE RELAY

Siemens 3TX7003-1CB00 is a legacy 24 V AC/DC interface relay with different Siemens transition paths for AC and DC service. Confirm the actual coil supply, socket, contacts, wiring and approval requirements before replacement.

ORDER NUMBER3TX7003-1CB00
COIL DESIGNATION24 V AC/DC
AC PATHLZS:RT4D4R24
DC PATHLZS:RT4D4L24
Order check: identify whether Siemens 3TX7003-1CB00 is operating on AC or DC; then verify the correct LZS transition model and socket.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 3TX7003-1CB00
Country of Origin Czech Republic
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85364190
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01 · INTERFACE RELAY IDENTITY & COIL CHECK

Reference-level checks for Siemens 3TX7003-1CB00.

A model-specific view of the 3TX7 interface relay, its 24 V AC/DC designation and the separate Siemens transition paths for AC and DC replacement coils.

ORDER NUMBER3TX7003-1CB00
PRODUCT FAMILY3TX7
HARDWARE ROLEInterface relay
LIFECYCLE SIGNALLegacy transition item
PUBLISHED SIEMENS TRANSITION DATA

Coil-voltage and successor checkpoints

Separate AC and DC before replacement
NOMINAL CONTROL24 V AC/DC
DEVICE TYPEInterface relay
AC TRANSITIONSeparate path
DC TRANSITIONSeparate path
AC SUCCESSORLZS:RT4D4R24
DC SUCCESSORLZS:RT4D4L24
PRODUCT FAMILY3TX7
ORDER REFERENCE3TX7003-1CB00
Identification boundary

Siemens lists 3TX7003-1CB00 in the 3TX7 interface-relay transition documentation with a 24 V AC/DC designation.

Replacement boundary

Siemens maps the AC and DC applications to different LZS successor variants. Confirm the actual coil supply, socket, contacts, wiring and approvals before selection.

02 · COIL SUPPLY & MODERNIZATION DECISIONS

Identify AC or DC service before replacing 3TX7003-1CB00.

The legacy order number covers a 24 V AC/DC designation, while Siemens publishes different LZS transition models for AC and DC use.

AC TRANSITION

LZS:RT4D4R24

Siemens maps the 24 V AC application of the legacy 3TX7003-1CB00 interface relay to LZS:RT4D4R24 in the transition documentation.

DC TRANSITION

LZS:RT4D4L24

Siemens maps the 24 V DC application of the legacy 3TX7003-1CB00 interface relay to LZS:RT4D4L24 in the transition documentation.

INTERFACE RELAY REPLACEMENT CHECK
01 / IDENTIFYRead the installed coil circuit

Record 3TX7003-1CB00, actual AC or DC supply, frequency where applicable, socket and terminal wiring.

→
02 / VERIFYCompare contacts and mounting

Check contact arrangement, switching duty, socket compatibility, dimensions, approvals and accessory requirements.

→
03 / SELECTSelect the correct LZS path

Use LZS:RT4D4R24 for the documented AC path or LZS:RT4D4L24 for the documented DC path after engineering verification.

Do not select a successor from the 24 V value alone; AC and DC coil behavior and the installed socket must be distinguished.

Replacement rule: LZS:RT4D4R24 and LZS:RT4D4L24 are different transition paths and are not interchangeable solely because both are associated with 24 V service.

03 · FAQ

Procurement answers for Siemens 3TX7003-1CB00.

coil type · successor path · socket fit · availability
01

What control-voltage designation does Siemens publish for Siemens 3TX7003-1CB00?

Siemens lists 3TX7003-1CB00 as a 24 V AC/DC interface relay in the official 3TX transition documentation.

02

Which Siemens successor is listed for the AC application of Siemens 3TX7003-1CB00?

Siemens maps the AC path to LZS:RT4D4R24. Confirm actual coil voltage, frequency, socket and contact requirements before ordering.

03

Which Siemens successor is listed for the DC application of Siemens 3TX7003-1CB00?

Siemens maps the DC path to LZS:RT4D4L24. Verify polarity-sensitive circuitry, socket wiring and switching duty before installation.

04

Can the AC and DC successors for Siemens 3TX7003-1CB00 be exchanged freely?

No. Siemens publishes different LZS models for AC and DC. The installed coil supply and socket arrangement must determine the selected transition path.

05

How should legacy availability be requested for Siemens 3TX7003-1CB00?

Request written confirmation of original or successor model, condition, quantity, warranty and the fixed 2-3 DAYS lead time.

06

Which installation details are required when asking for Siemens 3TX7003-1CB00 replacement support?

Send the complete relay and socket labels, actual AC or DC supply, contact diagram, wiring photos, switching load, quantity, destination and required date.
