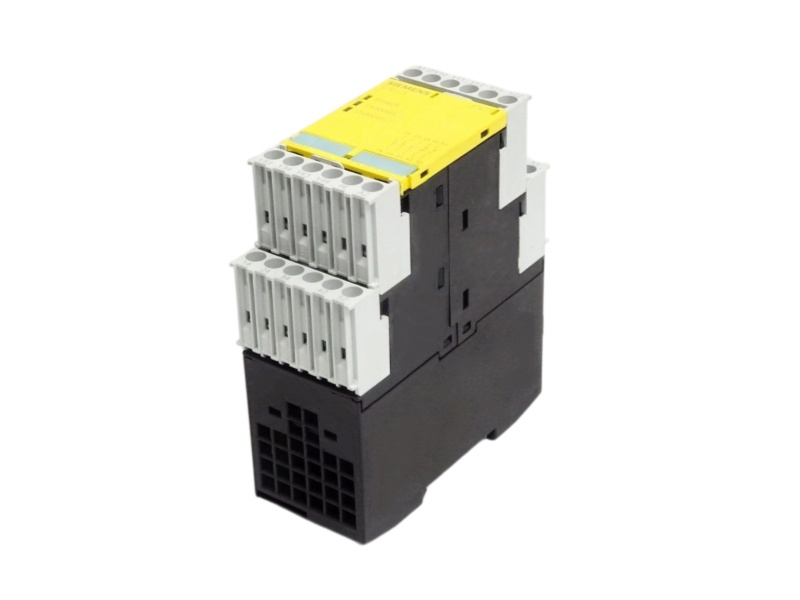

Siemens 3TK2825-1AL20 industrial automation product

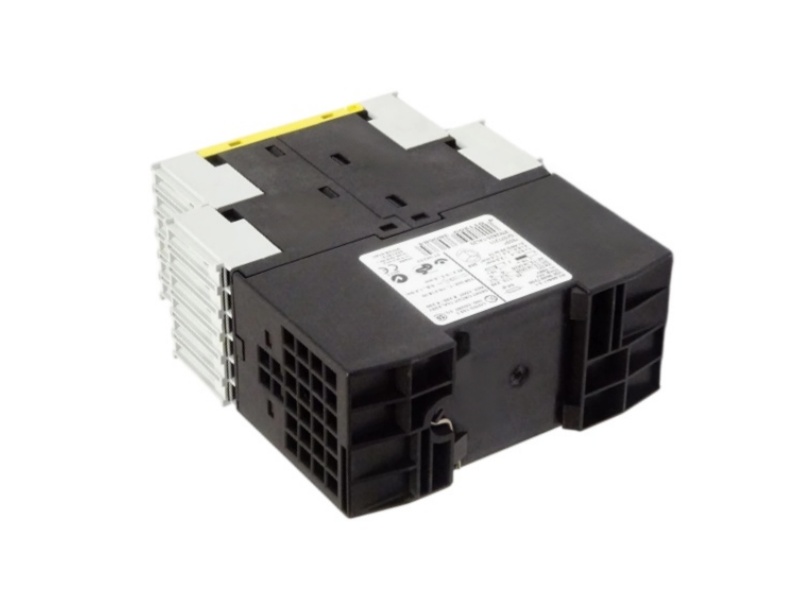

Siemens 3TK2825-1AL20 nameplate and hardware view

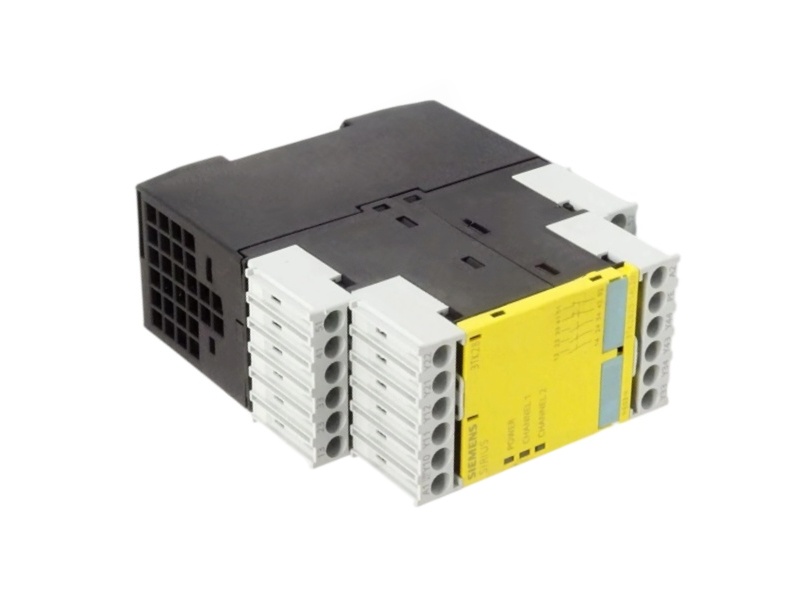

Siemens 3TK2825-1AL20 product detail view

Siemens 3TK2825-1AL20 SIRIUS Safety Relay 230 V AC

Siemens / SIRIUS / Safety Relays

3TK2825-1AL20 SIRIUS Safety Relay

The Siemens 3TK2825-1AL20 is a 45 mm SIRIUS safety relay with 230 V AC supply, screw terminals, three instantaneous NO enabling circuits and two NC signaling circuits.

This model is discontinued; the preferred successor is 3SK1111-1AW20 with one signaling circuit less. Review the safety circuit and terminal mapping before migration.

Order Number3TK2825-1AL20
DeviceSIRIUS Safety Relay
Supply230 V AC
Width45 mm
LifecycleDiscontinued
Lead Time2-3 DAYS
Order check: send the relay label, safety schematic, start mode, terminal wiring, quantity and destination.
✓ Top Quality
⚡ Fast Delivery
◎ In Stock RFQ
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Siemens AG
Item number 3TK2825-1AL20
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support One-year warranty, please contact May
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

SIRIUS Safety Relay Circuit Profile

The Siemens 3TK2825-1AL20 is a SIRIUS safety relay with relay enabling circuits. Siemens specifies a 230 V AC supply, 45 mm overall width, screw terminals, three instantaneous NO enabling circuits, no delayed enabling circuits and two NC signaling circuits.

ManufacturerSiemens
Order Number3TK2825-1AL20
Product TypeSIRIUS Safety Relay
Supply Voltage230 V AC
Overall Width45 mm
Enabling Circuits3 NO instantaneous
Signaling Circuits2 NC
Lead Time2-3 DAYS
Safety dataSiemens lists autostart/monitored start, stop category 0, maximum SIL 3 and Performance Level e for the basic device.
Lifecycle and successorSiemens marks 3TK2825-1AL20 as phased out/discontinued and names 3SK1111-1AW20 as the preferred successor with one signaling circuit less.
02

Safety Function & 3SK1 Replacement Check

A replacement must preserve the required safety function and account for the reduced signaling-contact count of the preferred 3SK1 successor.

1. Confirm the safety functionDocument the emergency-stop, guard-monitoring or other circuit function and its required category, SIL and PL.
2. Identify the start modeVerify whether the installed circuit uses autostart or monitored start and compare the reset wiring.
3. Map the inputsRecord the single-channel or two-channel sensor wiring and the feedback-loop connections.
4. Map all outputsConfirm use of the three NO enabling circuits and both NC signaling circuits in the existing design.
5. Preserve stop category 0Check that the replacement architecture maintains the required immediate stop behavior and safety calculations.
6. Review the preferred successor3SK1111-1AW20 has one signaling circuit less, so the second NC signaling path cannot be assumed to transfer unchanged.
03

Buyer Questions for Siemens 3TK2825-1AL20

How many enabling and signaling contacts does Siemens 3TK2825-1AL20 provide?Siemens 3TK2825-1AL20 provides three instantaneous NO enabling circuits, no delayed enabling circuits and two NC signaling circuits.
What safety ratings are listed for Siemens 3TK2825-1AL20?Siemens lists maximum SIL 3 and Performance Level e for 3TK2825-1AL20, together with stop category 0.
Can Siemens 3TK2825-1AL20 use autostart and monitored start?Yes. Siemens identifies both autostart and monitored-start capability; the actual reset circuit must match the approved application schematic.
Is Siemens 3TK2825-1AL20 still in production?No. Siemens marks 3TK2825-1AL20 as phased out/discontinued and directs users to successor information.
Is Siemens 3SK1111-1AW20 a contact-for-contact replacement for Siemens 3TK2825-1AL20?No. Siemens explicitly notes that 3SK1111-1AW20 has one signaling circuit less, so the schematic and terminal mapping must be redesigned or otherwise addressed.
Which documents and details should accompany a Siemens 3TK2825-1AL20 inquiry?Send the relay label, safety schematic, start mode, terminal wiring, required safety level, quantity, destination, delivery date and request for the 3TK28 manual and conversion guide.
