Name: B&R X20SO4110 Safe Digital Output Module
Availability: InStock

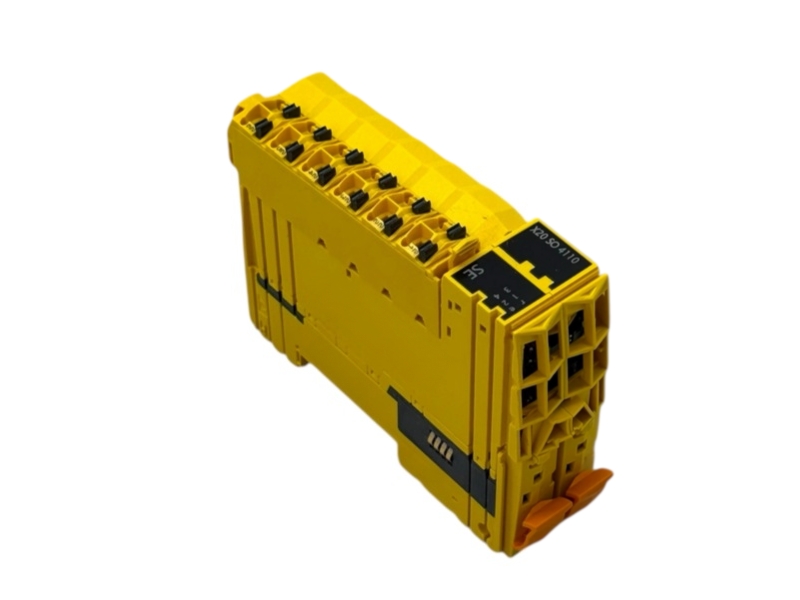

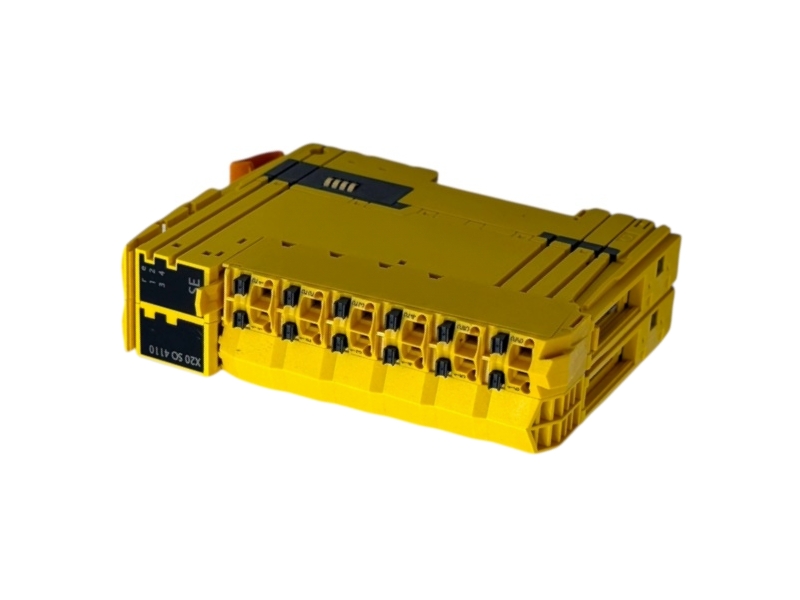

B&R X20SO4110 Safe Digital Output Module

AUTOMATION DATA SHEETB&R / VERIFIED

SAFEOUT · TYPE A

X20SO4110

B&R X20SO4110 is a SafeIO module with monitored type A semiconductor outputs for floating actuators in machinery applications up to PL e or SIL 3.

Brand New OriginalOne Year WarrantyFast Delivery

FUNCTIONAL SAFETY / 4 CHANNELSMonitored high-side/low-side outputs for floating actuators

4 safe DO0.5 ASIL 3

TERMINAL SYSTEMX20TB52 + X20BM3x

QUOTE / STOCK / DELIVERYInquire Nowab@mooreplc.com →

VERIFIED PRODUCT DATA

Product specifications

Official B&R safety-output, diagnostic, electrical, environmental and accessory data for X20SO4110.

PARAMETEROFFICIAL VALUEPARAMETEROFFICIAL VALUE

Safe outputs4Channel-to-bus isolation500 Veff

Output typeType A, high-side / low-sideChannel-to-channel isolationNo

Output technologyFET semiconductorBus power consumption0.25 W

Nominal output voltage24 VDCInternal I/O power1.3 W

I/O supply range24 VDC -15% / +20%Additional actuator dissipation0.24 W

Nominal channel current0.5 AFunctional safetyIEC 61508 / IEC 62061 up to SIL 3

Total nominal current2 AMachinery safetyISO 13849-1 Cat. 4 / PL e

Leakage current, off<10 µAOperating temperature, horizontal0 to 60°C

RDS(on)240 mΩOperating temperature, vertical0 to 50°C

Test pulse length500 µs max.Storage / transport temperature-40 to 85°C

Time between test pulses49.5 ms min.Relative humidity5 to 95%, non-condensing

Maximum capacitive load100 nFDegree of protectionIP20

Open-circuit detectionInternal current measurementModule pitch25 +0.2 mm

Open-circuit error time1 sRequired terminal blockX20TB52

Braking voltage90 VDC max.Compatible safety bus moduleX20BM33 or X20BM36

B&R requires a safety-keyed bus module and X20TB52 terminal block; select X20BM33 or X20BM36 for the application.

02FUNCTION
& APPLICATION

Safe actuator control architecture

Design the dual switching path, monitored load circuit and validated SafeIO hardware chain as one safety function.

01 / CIRCUIT

Select a floating actuator

Use loads without an external reference potential and account for the module's positive and negative switching conductors.

02 / DIAGNOSTICS

Interpret current feedback

Design the operating circuit so normal load current clearly exceeds the threshold region used for open-circuit evaluation.

03 / VALIDATION

Test every safety reaction

Verify de-energization, restart prevention, fault response and diagnostic handling during the documented machine-safety acceptance process.

PROJECT PLANNING CHECKPOINTS

LOAD

Check steady-state, inrush, inductive energy and capacitance of each actuator.

PULSES

Confirm that controlled equipment tolerates the module's output test pulses.

KEYING

Use only the safety-keyed terminal and bus hardware specified for SafeIO.

PROJECT

Preserve SafeDESIGNER data, signatures and validation records during replacement.

SAFETY NOTE

Component replacement does not by itself validate the safety function; the complete circuit and project must be recommissioned.

TECHNICAL & ORDER SUPPORT

Product FAQ & Buying Guide

Find practical answers for purchasing, compatibility, documentation and replacement planning.

Why does B&R X20SO4110 switch both conductors of a safe output?

Its type A topology can remove power from a floating actuator in fault scenarios affecting either connection path, supporting the certified safety architecture.

Which keyed X20 parts belong with B&R X20SO4110?

Use the safety terminal specified for this module and select one of the approved SafeIO bus modules according to the required node-number arrangement.

What loads are appropriate for B&R X20SO4110?

The design targets floating safety actuators such as relays or valves whose current, inrush, inductance, capacitance and test-pulse response fit the documented limits.

What proof should accompany an in-stock B&R X20SO4110 offer?

Request the exact hardware label, safety-keying photos, packaging or condition statement and functional-test evidence appropriate to the quoted item.

Can B&R X20SO4110 be replaced without repeating the machine safety test?

No assumption should be made; preserve the safety project and repeat the required commissioning and acceptance checks for outputs, faults, restart behavior and diagnostics.

Which official references should be named on a B&R X20SO4110 enquiry?

Reference the SafeIO data sheets, Integrated Safety Technology manual and complete module label, then include the bus module, terminal, actuator circuit, quantity and destination.
