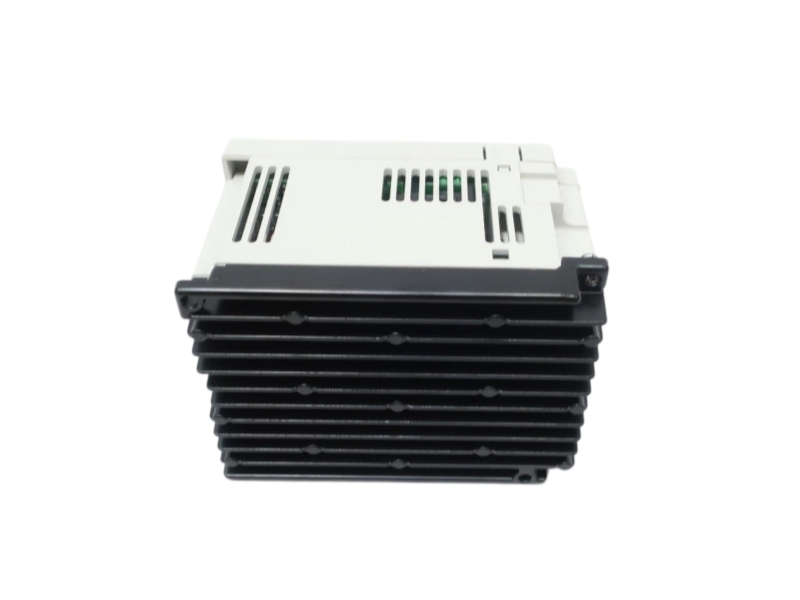

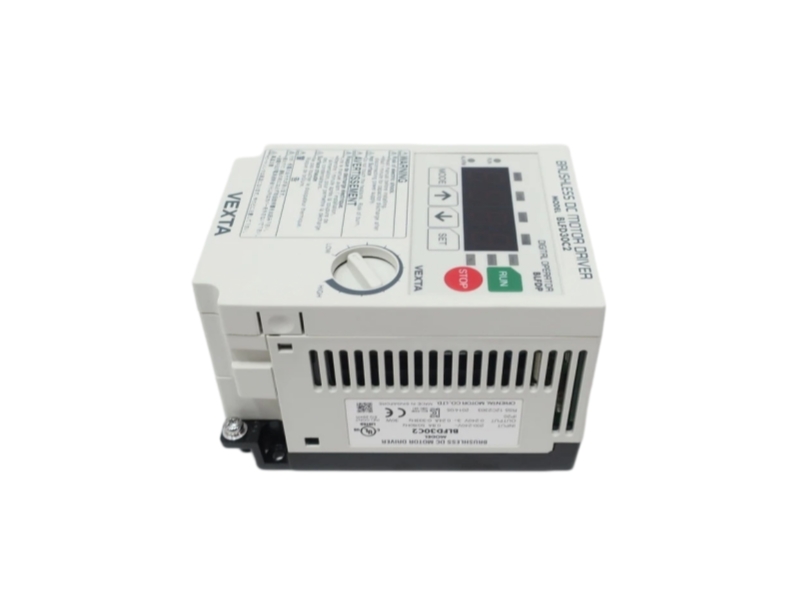

Name: Oriental Motor BLFD30C2 BLF Series 200-240 VAC Brushless DC Speed Controller
Availability: InStock

PRODUCT INFORMATION

BLFD30C2 Official Controller and Installation Parameters

The two ledgers distinguish the exact 30 W electrical configuration from command methods and the legacy controller's mechanical data.

POWER, MOTOR & SPEED CONTROL

Controller typeBrushless DC speed controller

SeriesBLF Series

Applicable system output30 W

Main supplySingle-phase 200-240 VAC

Supply tolerance±10%

Frequency50/60 Hz

Frequency tolerance±5%

Speed-control range80 to 4000 r/min

Rated system speed3000 r/min

Multi-speed positionsUp to 8

Multi-speed inputsM0, M1 and M2

Speed setting methodsInternal, external, DC voltage or digital

COMMANDS, INSTALLATION & MECHANICAL

Input logic selectionSource or sink

Digital operatorRequired for digital setting

Compatible motor exampleBLFM230-A

Parallel-shaft package exampleBLF230C-30

Controller mass0.9 kg

Overall dimensions95 x 130 x 84 mm

Mounting-hole spacing85 x 106 mm

Mounting holes2 x Ø4.5 mm

Safety standardsUL, CSA and EN

CE markingYes

RoHS complianceYes

LifecycleDiscontinued / legacy product

PRODUCT INFORMATION

How BLFD30C2 Regulates BLF Motor Speed

The chosen speed reference, controller logic, motor feedback and protective response form one adjustable BLF drive loop.

01Speed reference

02Controller logic

03BLF motor drive

04Regulated rotation

Accept several command styles

The controller can use its internal setting, an external potentiometer, a voltage command or digital operator values.

Select stored operating speeds

Discrete selection inputs let a machine call several preset operating points without rewriting the base setup.

Drive the matched BLF motor

The controller commutates the compatible brushless motor and manages the commanded operating state.

Maintain stable machine speed

Feedback from the motor system supports regulated rotation as the connected mechanical load changes.

Expose service controls

The digital operator path supports detailed settings and diagnostic work during commissioning or maintenance.

Preserve legacy machine behavior

A careful replacement review keeps the original input logic, speed source and motor connection aligned with the control panel.

PRODUCT INFORMATION

Oriental Motor BLFD30C2 Buyer FAQ

Clear purchasing guidance for informed sourcing decisions.

Which motor power class is matched to Oriental Motor BLFD30C2?

BLFD30C2 belongs to the 30 W BLF Series controller class. Confirm the complete BLFM motor label and any gearhead before ordering.

Is Oriental Motor BLFD30C2 officially discontinued?

Yes. Oriental Motor lists BLFD30C2 under legacy and discontinued speed controllers. Apter Power confirms current sourcing condition during quotation.

How many preset speeds can Oriental Motor BLFD30C2 select?

The controller supports up to eight speed selections through the documented M0, M1 and M2 input combination.

When is the digital operator needed with Oriental Motor BLFD30C2?

The digital operator is required when the application uses digital speed setting or needs the related parameter and diagnostic functions.

Can Oriental Motor BLFD30C2 be replaced by voltage alone?

No. Match the 30 W motor, single-phase supply, connectors, input logic, command source, parameter values and panel dimensions before substitution.

What should be photographed for an Oriental Motor BLFD30C2 replacement quote?

Send the controller and motor nameplates, terminal wiring, digital-operator arrangement, panel mounting, speed-setting device, quantity and destination.
