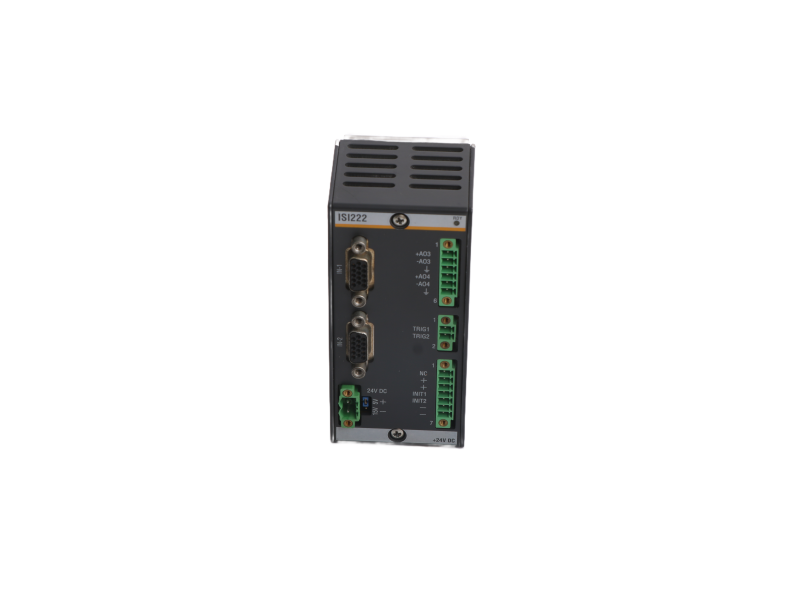

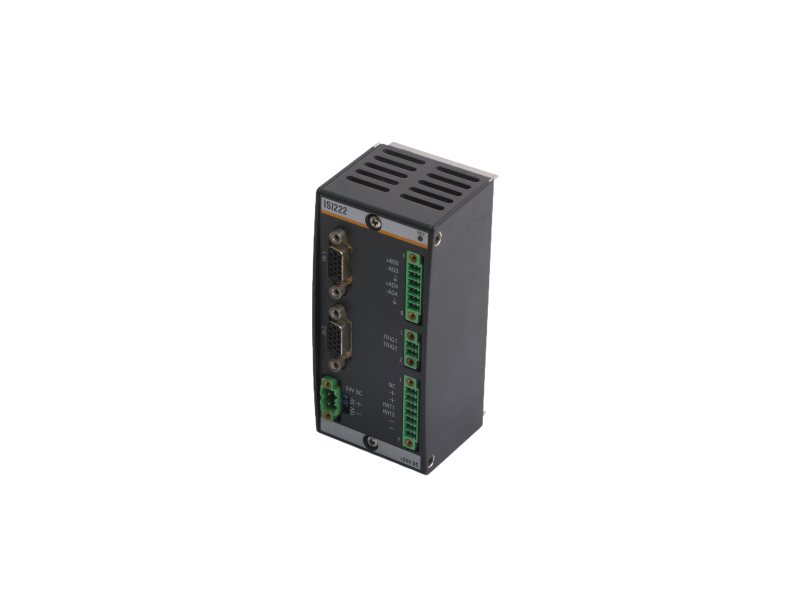

Description:The Bachmann ISI222 positioning module is a high-performance industrial automation positioning control module designed for precision motion control applications.
Product condition: New
Packing condition:Factory Packing.
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Bachmann |
| Item number | ISI222 |
| Country of Origin | Austria |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years of Motion-Control Expertise
Deep-Dive Brief: Bachmann ISI222 – High-Speed 2-Axis Positioning Module
Contact: ab@mooreplc.com | Same-day dispatch worldwide
1.Product Identity
ISI222 is a 2-axis positioning and encoder-interface module for Bachmann M1 controllers. It combines incremental & SSI encoder inputs, 14-bit ±10 V analogue outputs, and fast digital I/O to deliver sub-millisecond motion loops for wind turbines, steel mills and test rigs.
2.Verified Technical Data (per vendor datasheet & CE marking)
• Encoder Inputs 2 × INC (A/B/N) or SSI, 1 MHz, RS-422 level, 32-bit counter
• Analog Outputs 2 × ±10 V, 14-bit, ±2 mA, 40 µs update, synchronized to system clock
• Digital I/O 4 × 24 V DC inputs (trigger, homing), 2 × 5 V/15 V/24 V encoder supplies
• Synchronisation IO-Bus-SYNC with M1 cycle, < 1 µs jitter
• Power 5 V DC, 320 mA (module), encoder supply max. 200 mA total
• Temperature –40 °C … +70 °C, 3U CompactPCI, 0.2 kg
• Certifications CE, UL, marine (DNV, ABS, LR, BV, NK, KR, RINA)
3.Fresh Application Ideas
• Wind-turbine blade pitch – 1 MHz encoder tracks blade angle while 40 µs analog output drives hydraulic servo valve.
• Steel-mill finishing line – dual-encoder feedback on top/bottom rolls, synchronized via IO-Bus-SYNC for zero-strip tension error.
• Automotive test bench – SSI encoder on steering column + INC encoder on torque motor; 14-bit analog output provides ±10 V stimulus.
4.Ready-to-Ship Bachmann Kit
|
Part Number |
Description |
|
ISI222 |
2-axis positioning module (this SKU) |
|
NT255 |
24 V DC 10 A supply |
|
BS207 |
7-slot M1 backplane |
|
RS204 |
RS-485/RS-232 serial module (optional) |
|
LM201 |
Dummy module (spare slot filler) |
Need pricing or overnight delivery?
Email: ab@mooreplc.com | Phone: +86-18106909650
All items factory-sealed, ready for same-day dispatch worldwide.
