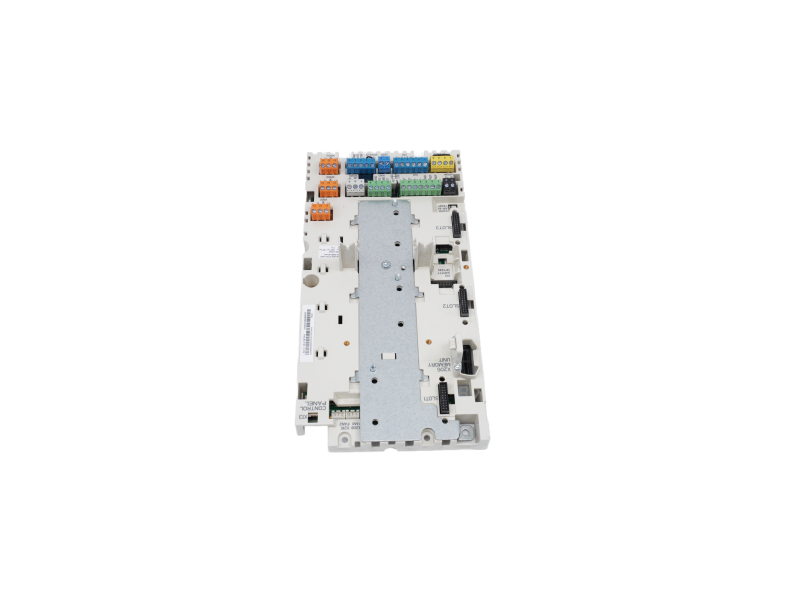

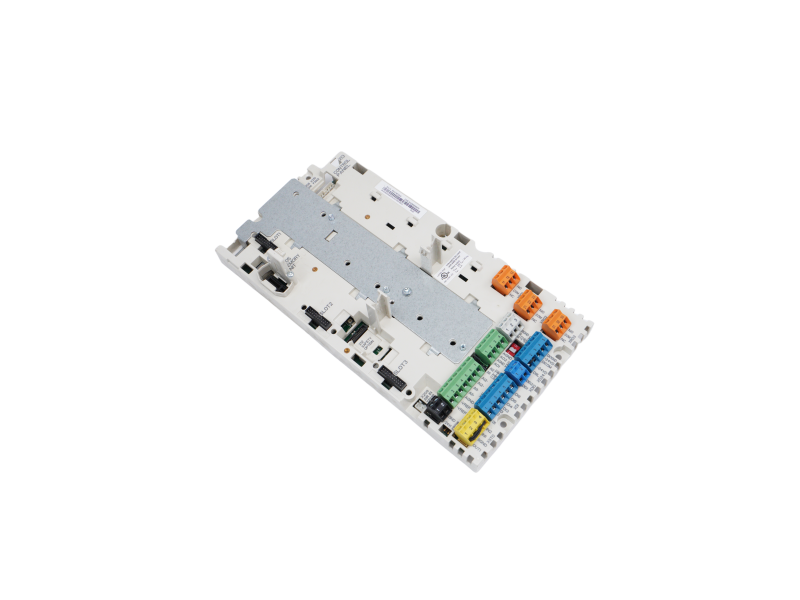

Description:ABB ZCU-12 (3AXD50000005751) is an inverter power drive board designed for efficient motor control and reliable drive performance.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | ZCU-12 3AXD50000005751 |
| Country of Origin | Switzerland |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
It is neither a drive nor a PLC. Multi-axis synchronization, high-speed event response and machine safety are squeezed onto a business-card-sized board; plug it into a frequency converter and 16 axes will dance to the same beat.
Type: ZCU-12 (Order code 3AXD50000005751)
Family: ABB Ability™ Machinery Controller
Form-factor: PCIe/104 mezzanine; snaps directly onto the ACS880/ACS580 control board—no extra panel space needed
Mission: Local 16-axis synchronization (1 µs clock alignment), 20 ns event capture, SIL3/PL(e) safety, CPU load < 5 %
Dual-core ARM Cortex-A53 + FPGA fabric
Core 1: EtherCAT Master, 125 µs cycle
Core 2: ABB motion library (PVT, gearing, camming, 5th-order spline)
FPGA: 8-channel high-speed capture/output, jitter < 50 ns
Wire-free Safety
On-board Safe-Torque-Off, Safe-Stop1/2, SLS, SDI—hardwired & certified—cuts safety wiring time by 70 %
Shadow-Power Technology
Super-cap keeps logic alive for 5 s; 24 V lost, homing and data still saved—no 200 ms reboot embarrassment
|
Parameter |
ZCU-12 Measured |
Note |
|
Synchronized axes |
16 |
Cascade 4 cards → 64 axes |
|
Sync jitter |
< 100 ns |
1 µs global clock distribution |
|
Event capture accuracy |
20 ns |
Encoder index or color mark |
|
Safety level |
SIL3 / PL(e) / Cat. 4 |
TÜV Rheinland certified |
|
Typical power consumption |
4.8 W |
No extra heat-sink required |
|
Firmware update |
Online, < 30 s |
Zero impact on production |
|
Port |
Purpose |
Field Handy Tip |
|
X1 EtherCAT IN |
Drive ring inlet |
Built-in QoS, auto-bypass if wire breaks |
|
X2 EtherCAT OUT |
Next cabinet cascade |
100 m max without repeater |
|
X3 Hi-Capture |
4 × 5 V RS422 |
Color mark, flying shear, laser trigger |
|
X4 Safety unlock |
Dual-channel 24 V |
Key-switch + light curtain, no external relays |
Disposable hygiene line: 16-axis electronic cam at 800 pcs/min; change-over = download new curve—mechanical cam disks retire.
Li-ion winding machine: 20 ns capture aligns cathode & separator; saves 2 mm material per roll ≈ USD 300 k/year on a 1 GWh line.
Robot 7th axis: Slip ZCU-12 into ACS880; robot track becomes servo axis #7, synchronized with 6 robot axes within 5 µm—no external controller needed.
