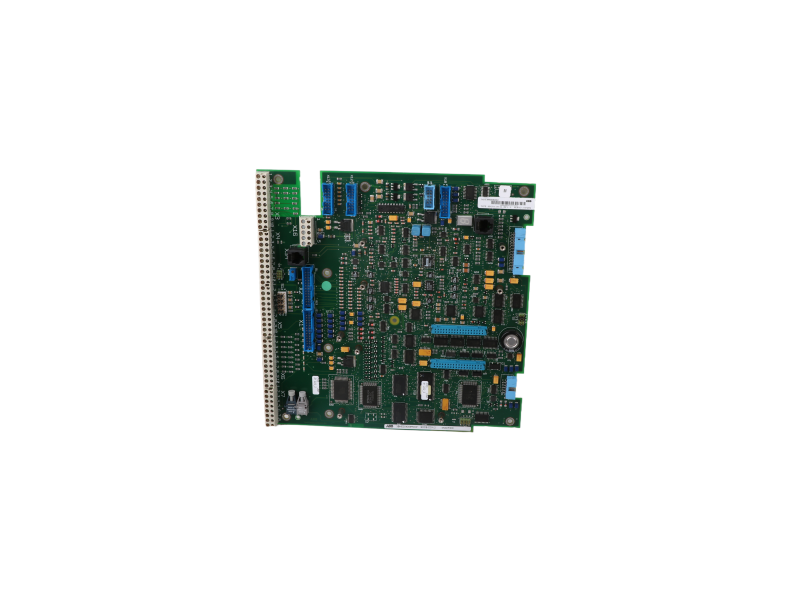

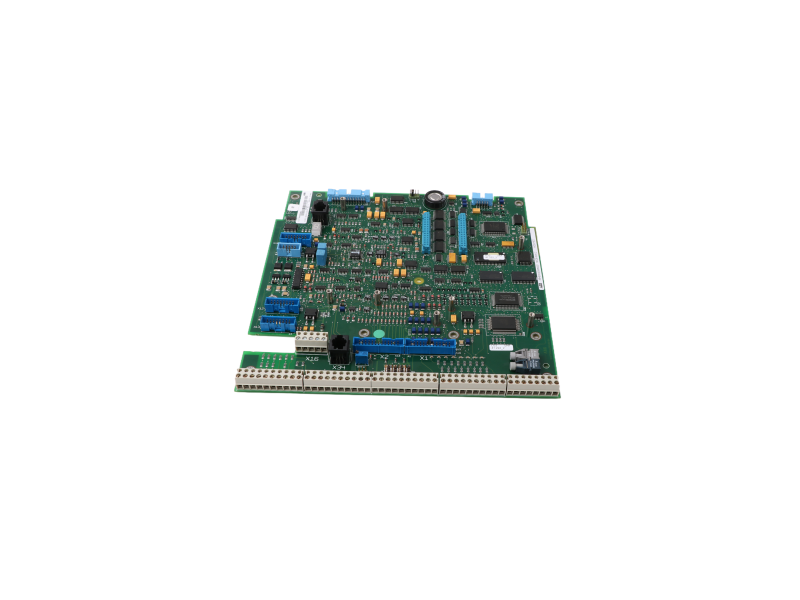

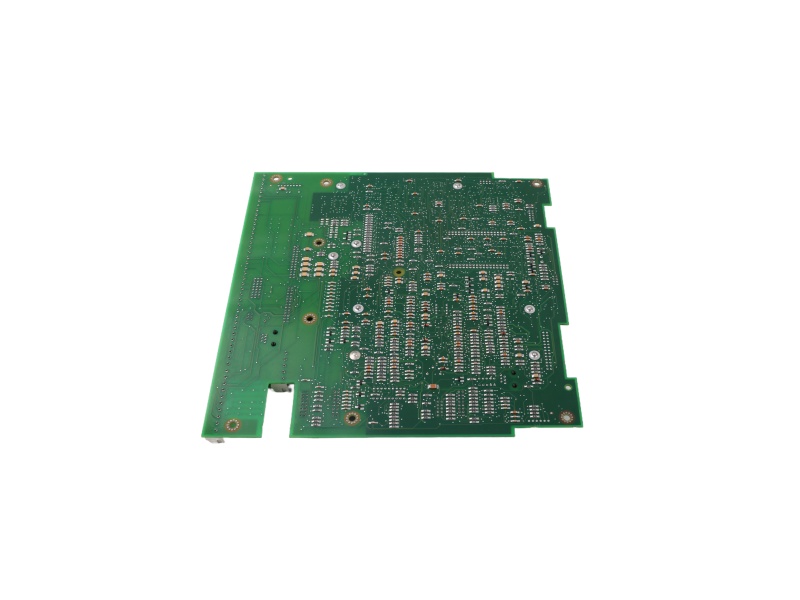

Description:ABB SDCS-CON-2A (3ADT309600R0002) is a control board without software, used for managing and coordinating drive system operations.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ABB |
| Item number | SDCS-CON-2A 3ADT309600R0002 |
| Country of Origin | Switzerland |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Sales Manager May
E-mail: ab@mooreplc.com | Phone/WhatsApp: +86-18106909650 | WeChat: dcsfcs
PLC Autocontroller – 20 years of automation supply out of Xiamen, China – is now stocking the original ABB control board SDCS-CON-2A (MLFB 3ADT309600R00021).
Below is a concise data sheet plus two quick-view tables that let specifiers, integrators and maintenance managers verify compatibility in seconds.
1. Product Identity
ABB type name: SDCS-CON-2A
Order code: 3ADT309600R00021 (also shown as 3ADT309600R0002)
Description: Control board – hardware only, firmware loaded separately
System fit: ABB DCS500 & DCS800 series DC drives, frames A-J
2. Key Specifications
|
Electrical & Logic |
Value |
Comment |
|
On-board supply |
DC 15.209 V (typ.) |
Fed from drive power stack |
|
Signal processing |
16-bit DSP |
Handles current, speed & field loops |
|
I/O update |
<1 ms |
Fast torque response |
|
Isolation |
Reinforced 2 kV |
Between power & control |
|
MTBF @ 40 °C |
>200 000 h |
IEC 61709 calculation |
|
Physical & Environment |
Value |
|
Dimensions (H×W×D) |
200 × 360 × 10 mm |
|
Operating temperature |
0 … +70 °C |
|
Storage temperature |
–40 … +85 °C |
|
Humidity |
5 … 95 % RH non-condensing |
|
RoHS / CE |
Fully compliant |
3. Why Keep a Spare?
Single-board architecture: No external modules needed for basic control; if it fails the line stops.
Plug-and-play: Exact mechanical & connector match—swap in minutes, re-load parameters from DCS memory stick.
20-year history: ABB shipped >120 k DCS drives; most are still rotating fans, extruders and wire-drawing machines across Asia.
EOL notice: Factory delivers on 90-day lead-time; our Xiamen warehouse holds fresh-dated stock for same-day dispatch.
4. Quick Order Path
Send us your existing board photo or serial number – we confirm revision match.
Receive a Pro-forma within 30 min including DHL/UPS tracking.
Board ships anti-static bag + foam box; 12-month warranty starts on arrival.
Need firmware or cables? Ask for bundle kit SDCS-CON-2A+FIS-3A adapter at a packaged price.
Contact May today – keep your ABB DC line turning without a 3-month wait.
