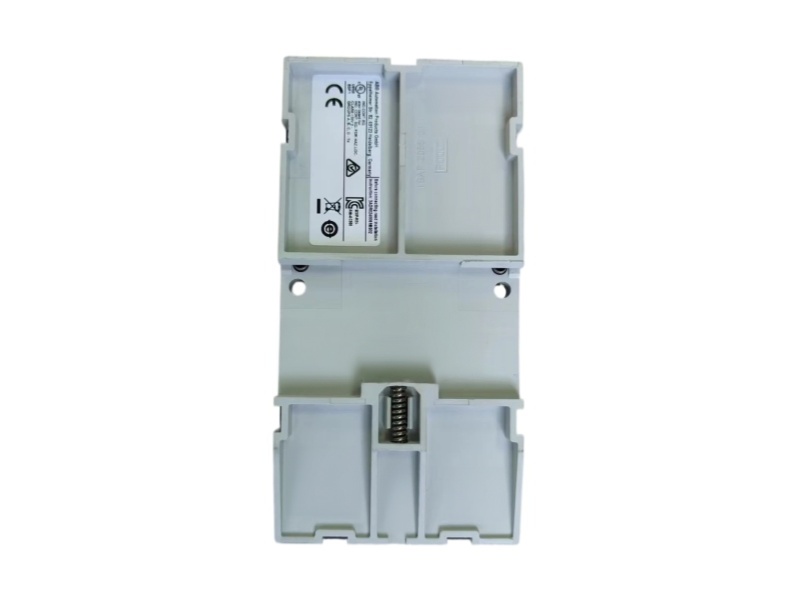

ABB TU552-CS31 product image front view

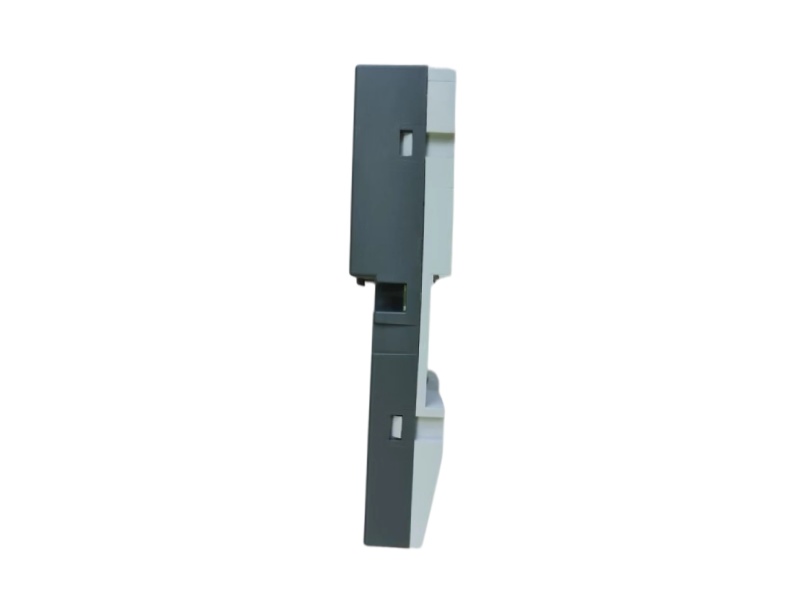

ABB TU552-CS31 product image detail view
ABB TU552-CS31 product identification view

ABB TU552-CS31 S500 24 V DC CS31 Bus Terminal Unit with Spring Terminals

ABB · S500 / CS31
TU552-CS31
ABB TU552-CS31 is a spring-terminal S500 base for 24 V DC CS31 communication interface modules, retaining bus and field wiring during module replacement.
Channel groups
3 × 8
Rated supply
24 V DC
Lifecycle
Active
Standard CS31 version · 0.159 kg catalog weight · module connections established through the base
CS31 terminal base
30
field terminals
CS31 bus interface
Spring connections
Retained field wiring
INQUIRE NOW
INTEGRITY SUPPLY
TOP QUALITY
IN STOCK
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TU552-CS31
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

CS31 wiring platform
Bus, supply and terminal assignments for the standard spring base.
ABB-published connection points distinguish the fixed base wiring from module-dependent signals.
01Signal terminals
30
02Maximum channels
24
03Channel distribution
3 groups of 8
04CS31 bus positive
B1
05CS31 bus negative
B2
06End resistor terminals
R1 / R2
07Process voltage positive
UP
08Process voltage zero
ZP
Terminal type
Spring
Country of origin
Switzerland
Catalog weight
0.159 kg
Official lifecycle
Active
Order review
Identify the matching I/O module, CS31 wiring and terminal arrangement before ordering.
02
CS31 base replacement
Keep field wiring fixed while the communication interface is exchanged.
Bus polarity, line termination, functional earth and the inserted module type must remain consistent.
The remaining signal assignments depend on the installed CS31 communication module.
01
Record the bus wiring
Identify B1, B2, functional earth and the active end-of-line resistor connections before releasing the module.
02
Verify the process supply
Confirm the positive and zero-potential rails and include the supply in the control-system earthing concept.
03
Match the inserted interface
Use only a compatible 24 V DC S500 CS31 communication module and verify every module-dependent terminal assignment.
04
Lock and commission
Secure both mechanical locks, inspect the I/O-bus connection and test CS31 communication before returning the station to service.
DIN-rail grounding
Direct functional earth
Mounting orientation
Horizontal / vertical
Wiring retention
Module removable
Module supply path
From UP / ZP
Official ABB sources: TU551/TU552 data sheet, CS31 terminal-unit help and S500 system description.
03

Buyer decision notes
Questions customers ask about ABB TU552-CS31.
Use these answers to review bus integration, replacement checks and purchasing details.
Clear, model-specific information for a confident purchasing decision.
Which communication interfaces are intended for ABB TU552-CS31?
ABB specifies the terminal unit for S500 CS31 interface modules using 24 V DC I/O or interface signals. Check the current module compatibility list before selection.
01
How is CS31 line termination handled on ABB TU552-CS31?
The terminal unit provides dedicated R1 and R2 end-resistor points. Terminate only according to the physical bus topology and preserve B1/B2 polarity.
Why is ABB TU552-CS31 useful during maintenance?
The communication interface can be removed after unlocking while bus, process-supply and field wiring remain connected to the terminal unit.
02
Does ABB still classify ABB TU552-CS31 as an active article?
Yes. ABB lists the standard spring-terminal order code as Active. Confirm condition, quantity and delivery date in the quotation.
Can ABB TU551-CS31 replace ABB TU552-CS31 without changing the wiring method?
The two bases serve the same CS31 family but use different terminal technologies and order codes. Review conductor preparation, tooling and cabinet service practice before changing.
03
Which records should accompany an ABB TU552-CS31 inquiry?
Send the base label, inserted CS31 module type, bus-termination arrangement, terminal photographs, requested condition, quantity, destination and required date.
