ABB TU531 AC500 120/230 V AC Relay Terminal Unit

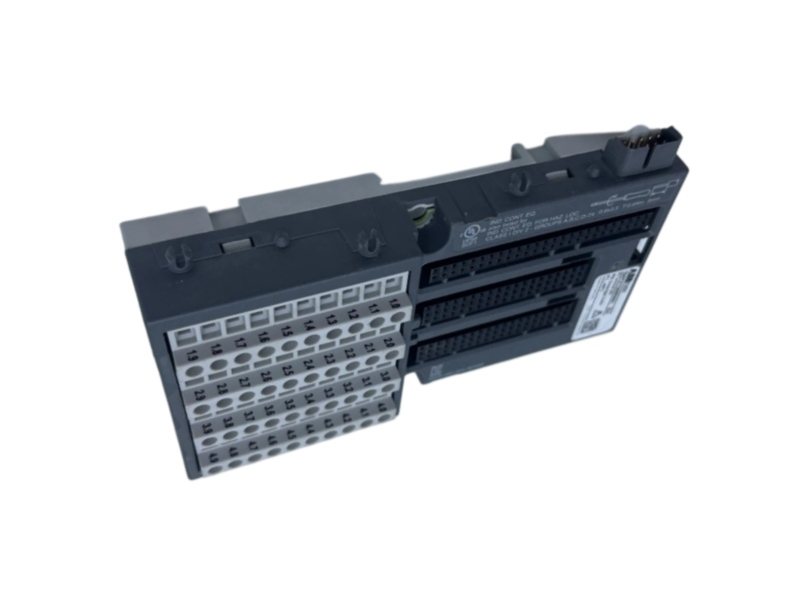

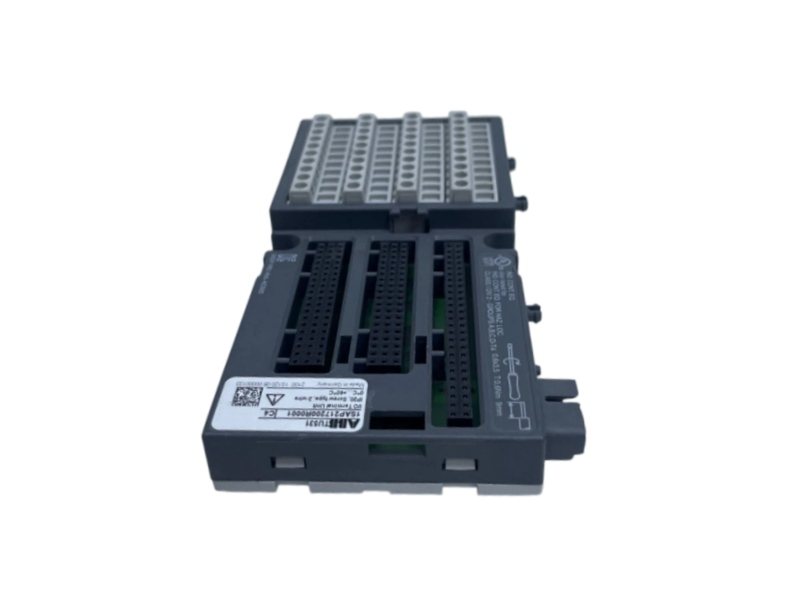

ABB | AC500 S500INQUIRY DESK ABB TU531 AC500 120/230 V AC Relay Terminal Unit ABB TU531 is an AC500 and S500 terminal unit for 120/230 V AC input and relay-output modules, using front screw terminals for panel wiring. CHANNEL MAPACTIVE 32terminal channels in four groups SIGNAL VOLTAGEUp to 300 V AC TERMINAL STYLEFront screw Selection note: Verify the inserted I/O module, voltage separation, conductor rating and screw-terminal preference before configuring the station.  Top Quality One Year Warranty Worldwide Shipping Request an ABB TU531 Quote

ABB | AC500 S500-eCoINQUIRY DESK ABB DO561 S500-eCo 8-Channel Transistor Digital Output Module ABB DO561 is an S500-eCo digital output module with eight 24 V DC transistor channels for central AC500 expansion or approved decentralized I/O stations. OUTPUT MAPACTIVE 0824 V DC transistor channels RATED CURRENT0.5 A per channel OUTPUT DATA1 byte Selection note: Confirm process supply, external channel protection, inductive-load suppression and the required 11-pole terminal block.  Brand New Original Fast Delivery 24/7 Service Request an ABB DO561 Quote

ABB | AC500 S500INQUIRY DESK ABB AC522 S500 8-Channel Configurable Analog I/O Module ABB AC522 is an S500 analog I/O module with eight configurable channels for voltage, current and resistance-temperature measurement plus analog output functions. ANALOG MAPACTIVE 08configurable analog channels RESOLUTION12 bits incl. sign PROCESS SUPPLY24 V DC Selection note: Define each channel mode, signal range, sensor wiring, output load and vertical-mounting derating before engineering the station.  Integrity Supply Best Price Fast Delivery Request an ABB AC522 Quote

ABB | AC500-eCo V3INQUIRY DESK ABB PM5052-T-ETH AC500-eCo V3 Standard Processor Module ABB PM5052-T-ETH is an AC500-eCo V3 standard CPU with Ethernet, onboard 24 V DC digital I/O, configurable channels and three option-board slots. I/O MAPACTIVE 22onboard DI, DO and configurable channels ETHERNET1 interface OPTION SLOTS3 Selection note: Confirm hardware revision, Automation Builder and firmware level, terminal blocks, option boards and onboard I/O assignments before migration.  Brand New Original In Stock Worldwide Shipping Request an ABB PM5052-T-ETH Quote

ABB | AC500 S500INQUIRY DESK ABB DA502 S500 Mixed Digital and Analog I/O Module ABB DA502 combines sixteen transistor outputs, eight configurable digital channels, four universal analog inputs, two analog outputs and a fast counter in one S500 module. I/O MAPACTIVE 30digital and analog signal points ANALOG INPUT4 channels ANALOG OUTPUT2 channels Selection note: Prepare a channel schedule covering digital direction, analog range, RTD wiring, output loads, fast-counter use and the selected terminal unit.  Top Quality One Year Warranty Fast Delivery Request an ABB DA502 Quote

ABB | AC500 S500-eCoINQUIRY DESK ABB DO562 S500-eCo 16-Channel Transistor Digital Output Module ABB DO562 is an S500-eCo digital output module with sixteen 24 V DC transistor channels in one isolated output group for dense actuator control. OUTPUT MAPACTIVE 1624 V DC transistor channels GROUP CURRENT8 A maximum OUTPUT DATA2 bytes Selection note: Review total group current, external channel fusing, terminal-block pair, power-removal procedure and inductive-load suppression.  Brand New Original Best Price Worldwide Shipping Request an ABB DO562 Quote

ABB | AC500 S500INQUIRY DESK ABB CM589-PNIO S500 PROFINET IO RT Communication Module ABB CM589-PNIO is an S500 PROFINET IO RT device with an integrated two-port Ethernet switch for decentralized AC500 I/O stations. PORT MAPACTIVE 02integrated 100 Mbit/s Ethernet ports I/O DATA1440 bytes each way MINIMUM CYCLE1 ms Selection note: Verify terminal base, CPU firmware, module firmware, controller count, topology, update time and configured I/O data before commissioning.  Integrity Supply Top Quality 24/7 Service Request an ABB CM589-PNIO Quote

ABB | AC500 S500-eCoINQUIRY DESK ABB AI563 S500-eCo 4-Channel Thermocouple Analog Input Module ABB AI563 is an S500-eCo analog input module with four floating thermocouple channels, 16-bit signed conversion and cold-junction-compensated temperature measurement. INPUT MAPACTIVE 04floating thermocouple channels RESOLUTION16 bits incl. sign TEMPERATURE STEP0.1 °C Selection note: Confirm thermocouple type, extension wire, cold-junction conditions, terminal-block pair, firmware scaling and process-supply revision.  Brand New Original One Year Warranty Worldwide Shipping Request an ABB AI563 Quote
