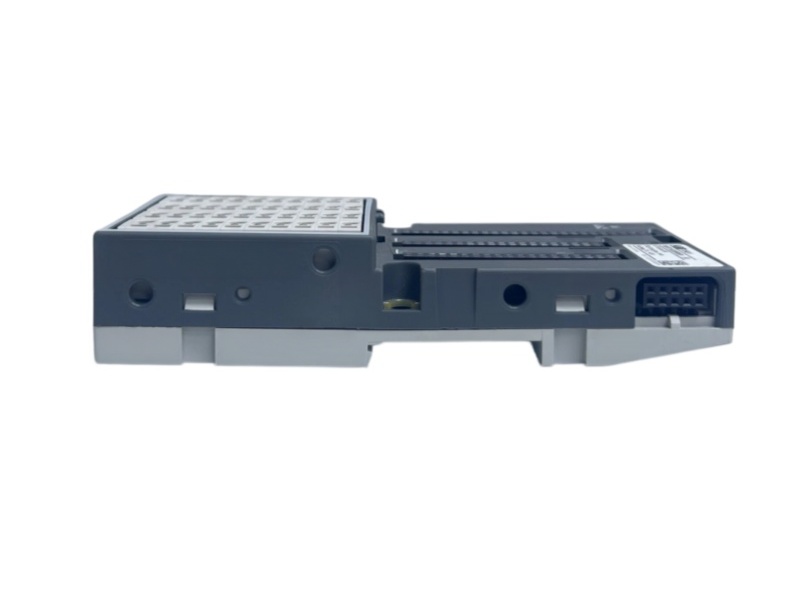

ABB TU542-H product image front view

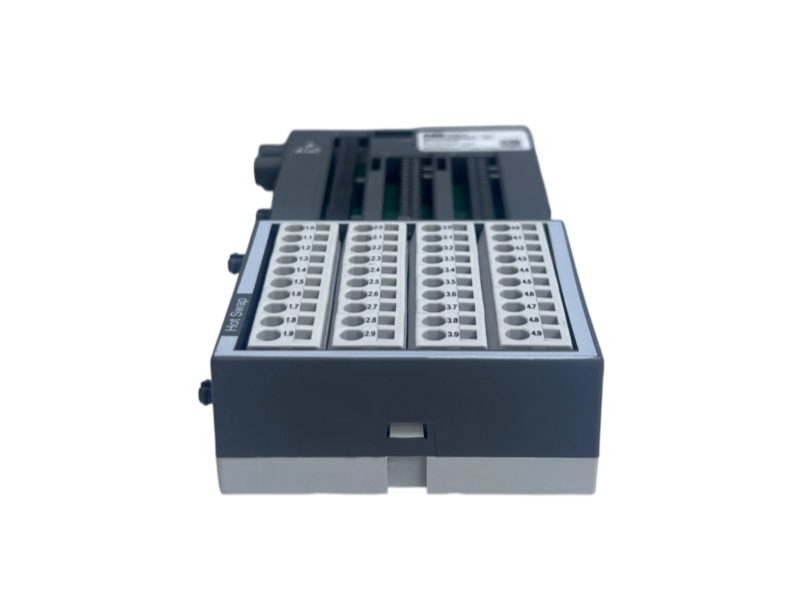

ABB TU542-H product image detail view
ABB TU542-H product identification view

ABB TU542-H S500 24 V DC High-Current Hot-Swap I/O Terminal Unit

ABB · S500
TU542-H
ABB TU542-H is a 24 V DC spring-terminal base for high-current S500 I/O modules, designed for no-load hot swapping in supported AC500 configurations.
Channel capacity
Up to 32
Supply groups
4 × 8
Lifecycle
Active
Standard environmental version · 0.164 kg · compatible module index must support hot swap
Hot-swap base
40
spring terminals
High-current I/O
No-load exchange
S500 I/O bus
INQUIRE NOW
WORLDWIDE SHIPPING
24/7 SERVICE
TOP QUALITY
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TU542-H
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

Terminal and load boundary
Connection density and process-supply limits for the high-current base.
The selected values describe the terminal unit and its process wiring boundary.
01Terminal count
40
02Channel capacity
Up to 32
03Channel groups
4 groups of 8
04Process supply
24 V DC
05Total permitted current
10 A
06Terminal style
Spring
07I/O bus connector
10-pin male / female
08Protection when assembled
IP20
Mounting
DIN rail / wall
Country of origin
Switzerland
Catalog weight
0.164 kg
Official lifecycle
Active
Order review
Identify the matching I/O module, terminal wiring and connector arrangement before ordering.
02
No-load hot-swap workflow
Exchange the electronics while leaving the field wiring in place.
Hot swapping depends on the supported CPU, compatible I/O module index and a de-energized load path.
ABB limits this terminal unit to no-load hot swapping and excludes safety I/O configurations.
01
Confirm system support
Verify that the AC500 V3 CPU or communication interface supports hot swap and that the inserted I/O module has the required index.
02
Remove process load
Place the affected outputs and connected load in a safe no-load state before releasing the electronics module.
03
Unlock the module
Use the terminal-unit locks to withdraw the I/O electronics without disconnecting the retained field wiring.
04
Restore and diagnose
Insert the exact compatible module, confirm seating, then validate I/O status and the controlled process restart.
Identification
Hot Swap marking
Visual cue
White terminal frame
Mixed layouts
Normal and hot-swap bases
Safety I/O use
Not permitted
Official ABB sources: TU515/TU516/TU542 data sheet, AC500 hardware manual and PLC Automation catalog.
03

Buyer decision notes
Questions customers ask about ABB TU542-H.
Use these answers to check module pairing, installation boundaries and supply requirements.
Clear, model-specific information for a confident purchasing decision.
Which I/O modules can be installed on ABB TU542-H?
It is intended for supported high-current S500 I/O modules. Confirm the module compatibility table and the required hardware index before ordering the terminal unit.
01
Does ABB TU542-H allow a loaded output circuit to be exchanged live?
No. ABB describes the function as no-load hot swapping. Place the process in a safe state and remove load current before extracting the electronics module.
Where does ABB TU542-H fit in an AC500 architecture?
It forms the field-wiring base for a high-current S500 I/O module in supported local or distributed extension layouts where wiring retention is required.
02
What is the current lifecycle classification for ABB TU542-H?
ABB lists the standard order article as Active. Availability, required accessories and shipment timing are verified with the requested quantity and destination.
Can ABB TU542-H-XC be ordered as a direct substitute for ABB TU542-H?
The XC terminal unit has a separate order code and environmental qualification. Confirm cabinet conditions, adjacent bases and module approvals before changing versions.
03
What documentation should be requested with an ABB TU542-H quotation?
Ask for the terminal-unit data sheet and S500 hardware instructions, and provide the inserted I/O type, CPU or interface, module index, quantity, condition and destination.
04 · Professional Team
