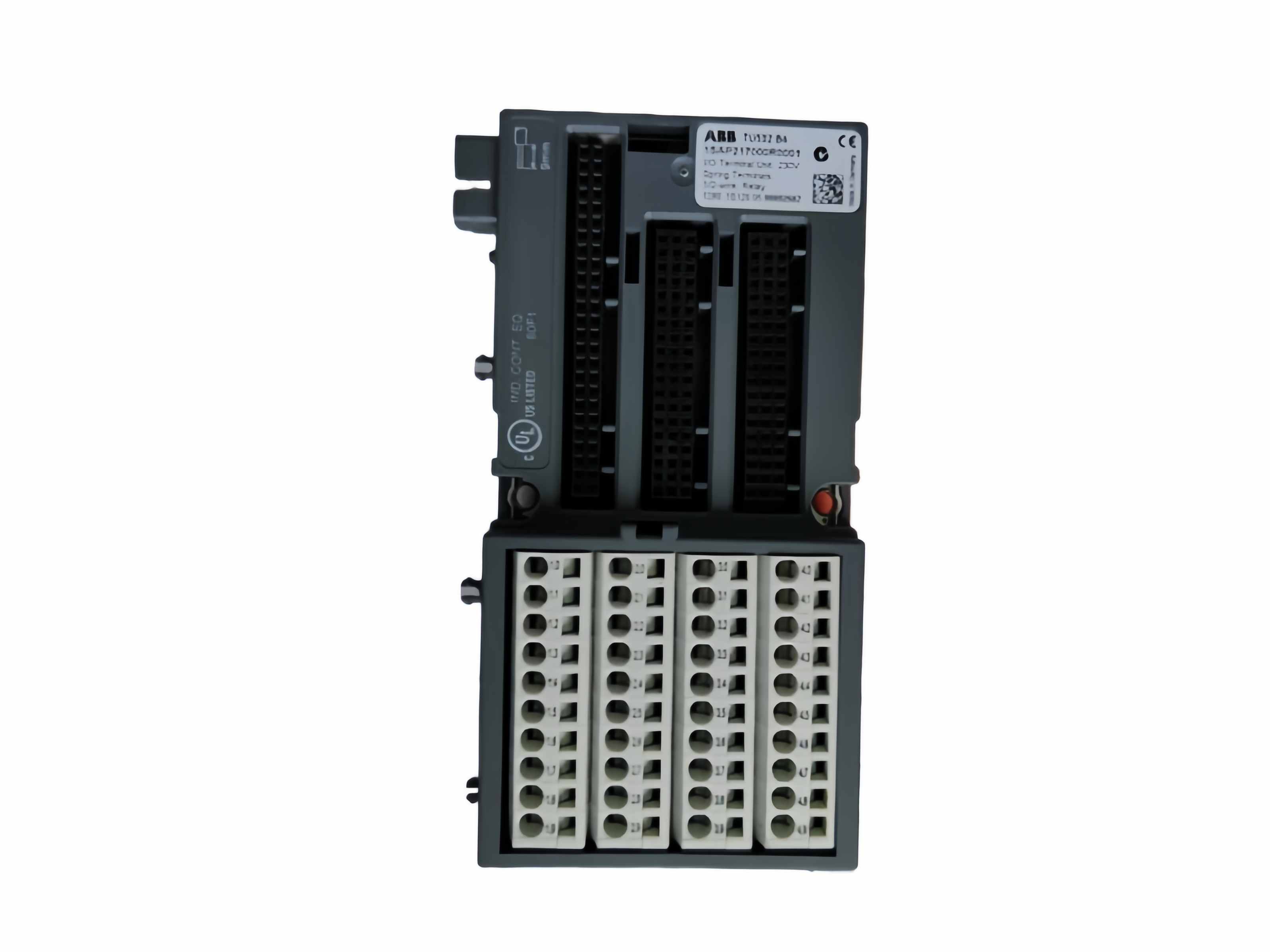

ABB TU532 S500 terminal unit front view

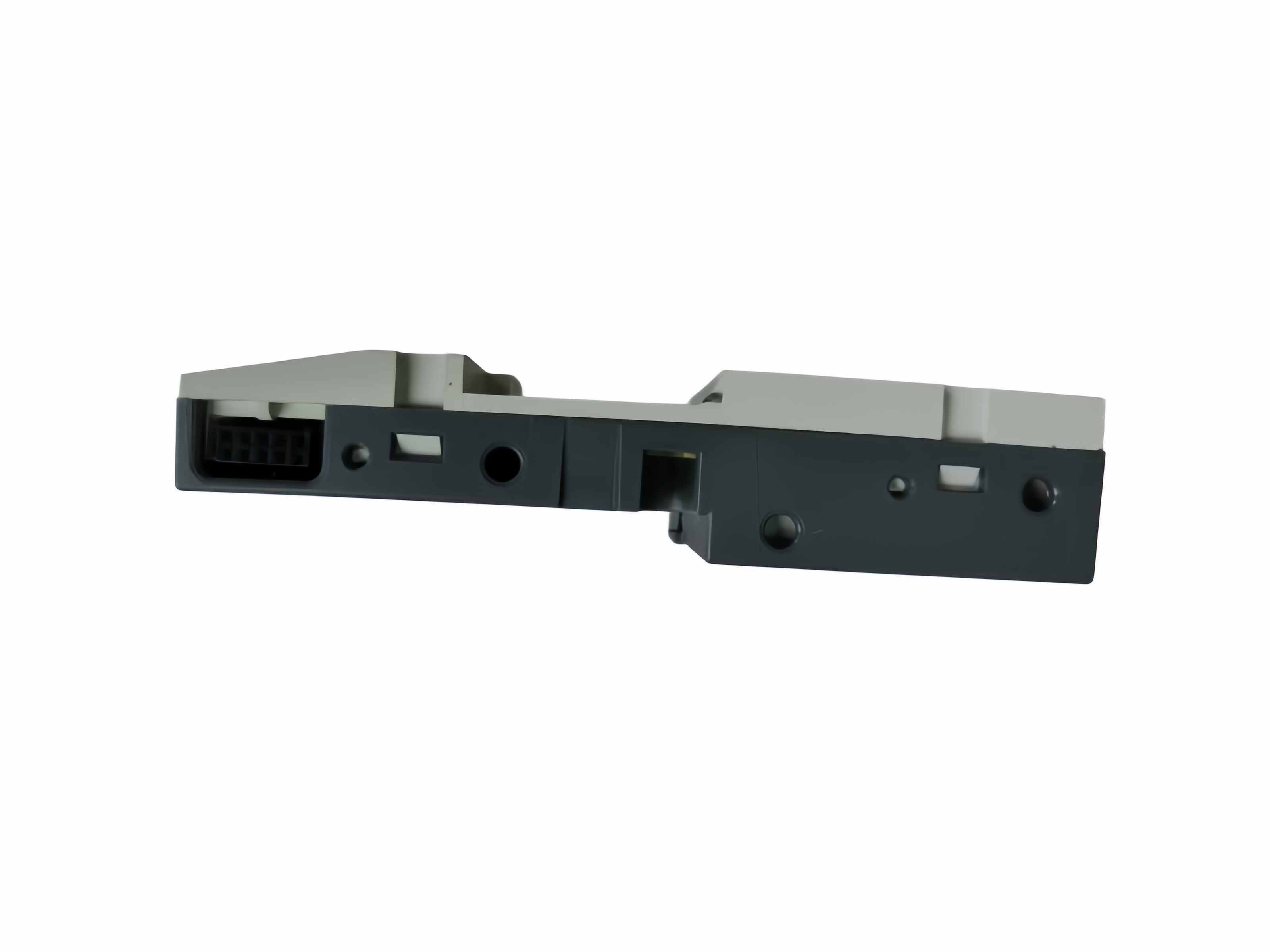

ABB TU532 S500 terminal unit side view
ABB TU532 S500 terminal unit terminal view

ABB TU532 S500 120/230 V AC Relay I/O Terminal Unit with Spring Terminals

ABB · S500ACTIVE
TU532
ABB TU532 is an active S500 terminal unit with spring connections for compatible 120/230 V AC input and relay-output modules.
TERMINAL STYLE
Spring terminals
MODULE CLASS
AC input / relay output
MOUNTING
DIN rail or wall
Confirm the inserted I/O module, field voltage and terminal map before replacement.
40FIELD TERMINALS
2MECHANICAL LOCKS
Spring terminalsTERMINAL STYLE
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TU532
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD TERMINATION
Spring-connected wiring for AC input and relay-output modules.
The terminal unit separates permanent field wiring from the removable S500 electronics module.
PRIMARY
Field terminals
40
Terminal technology
Spring connection
Application voltage
120/230 V AC
Module application
AC inputs / relay outputs
SYSTEM
I/O-bus input
10-pin male
I/O-bus output
10-pin female
Module connectors
2 × 25-pin + 3 × 19-pin
Grounding path
DIN rail or wall screws
INSTALLATION
Mounting position
Horizontal or vertical
Wall-mount holes
2
Mechanical locks
2
Hot-swap identifier
Not present
Field terminals
40
Mounting
Horizontal or vertical
Catalog weight
0.164 kg
Country of origin
Germany
Lifecycle
Active
02
WIRING AND SERVICE
Permanent field connections with removable module electronics.
Bus continuity, grounding and mechanical retention remain organized on the terminal unit during module service.
01
SYSTEM FUNCTION
Bus pass-through
Male and female 10-pin connectors continue the S500 I/O bus through the station.
02
SYSTEM FUNCTION
Field separation
Forty spring terminals retain the field conductors when the plugged I/O module is removed.
03
SYSTEM FUNCTION
Mechanical retention
Two locks secure the inserted module and release it for service without disturbing terminal wiring.
CONFIGURATION SUMMARY
Terminal typeSpring
Voltage class120/230 V AC
MountingRail / wall
INSTALLATION REVIEW
Verify the terminal-unit installation.
Check field wiring and module fit
I/O MODULE
Match type
CHECK
VOLTAGE
120/230 V AC
CHECK
BUS PLUGS
10-pin pair
CHECK
LOCKS
2 fitted
CHECK
HOT SWAP
Not supported
CHECK
Confirm the spring-terminal map, grounding path and retained bus connections before module service.
03
SELECTION & SUPPORT FAQ
Clear answers for confident TU532 selection.
Use the complete model and installed-system details to confirm a reliable match before purchase.
Prepare a precise match.
01 · NAMEPLATE
Full model and hardware index
02 · INSTALLED SYSTEM
Base, wiring and connected modules
03 · PROJECT
Software, settings and required condition
Q1
Which ABB modules are intended for the TU532 terminal unit?
ABB specifies TU532 for compatible S500 modules that use 120/230 V AC inputs or relay outputs. Verify the exact inserted module and its terminal assignment before selection.
Q2
Is ABB TU532 a hot-swap terminal unit?
No. ABB identifies TU532-H as the hot-swap version. TU532 is the standard spring-terminal base and should not be treated as interchangeable without a station review.
Q3
Can field wiring remain connected when an ABB TU532 module is serviced?
Yes. The field conductors terminate on TU532, allowing the plugged electronics module to be removed without disconnecting the terminal wiring after the required power-isolation procedure.
Q4
Where is ABB TU532 used in an S500 station?
TU532 provides the field terminals, grounding path and I/O-bus pass-through beneath a compatible AC-input or relay-output S500 module in local or remote I/O assemblies.
Q5
What other versions are available alongside ABB TU532?
ABB lists TU532-XC for extended environmental conditions and TU532-H for hot-swap service, plus TU532-H-XC combining both features. Each has a distinct configuration.
Q6
What should be included in an ABB TU532 manual and quotation request?
Provide the full TU532 model, inserted I/O module, field-voltage class, terminal preference, quantity, destination and required delivery date so the documentation and quotation match the station.
