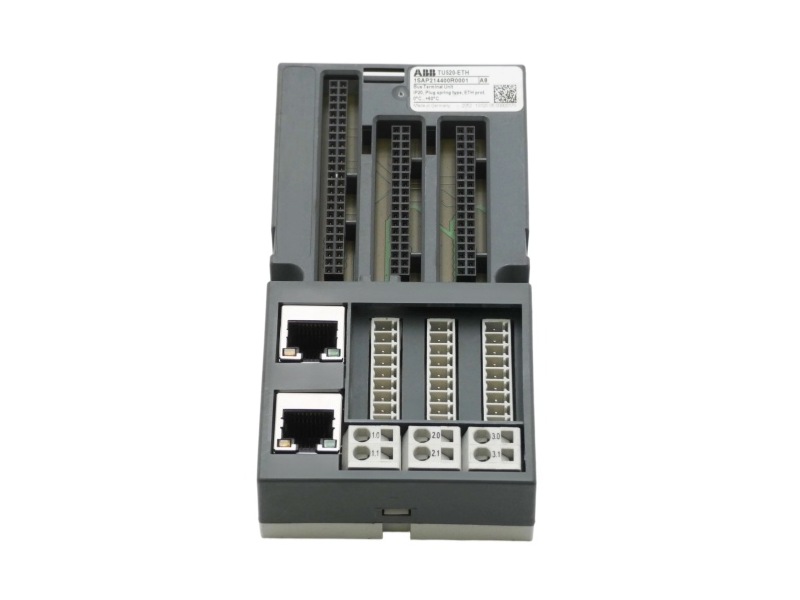

ABB TU520-ETH PROFINET I/O Terminal Unit front view

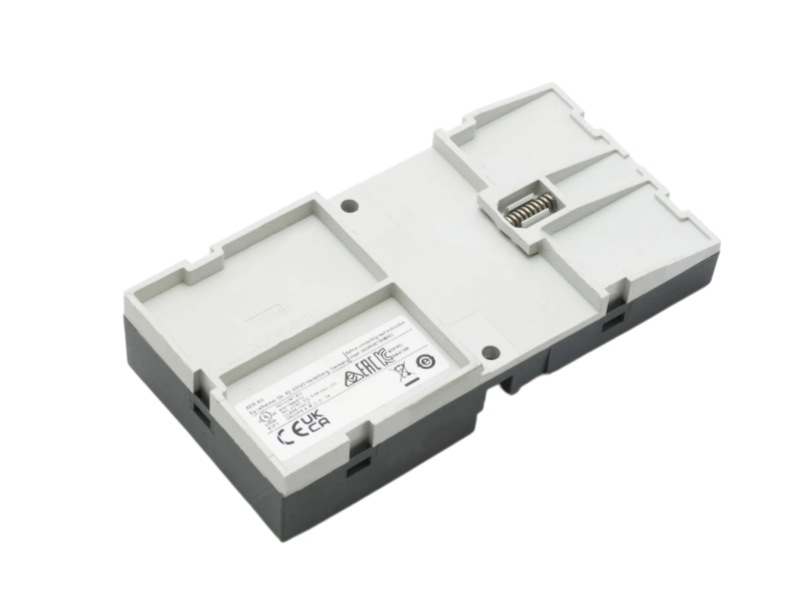

ABB TU520-ETH PROFINET I/O Terminal Unit side view
ABB TU520-ETH PROFINET I/O Terminal Unit terminal view

ABB TU520-ETH S500 PROFINET I/O Terminal Unit with Dual RJ45

ABB · S500ACTIVE
TU520-ETH
ABB TU520-ETH is an active 24 V DC PROFINET I/O terminal unit with two RJ45 ports, spring terminals and three removable bus connectors.
NETWORK
2 Ethernet ports
PROCESS SUPPLY
24 V DC
FIELD CONNECTION
Spring terminals
Confirm the installed CI5xx communication interface and its removable bus connectors before replacement.
2 × RJ45ETHERNET
10 A max.TOTAL CURRENT
2 Ethernet portsNETWORK
INQUIRE NOW
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TU520-ETH
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
NETWORK TERMINAL BASE
Ethernet, process power and removable bus connections in one base.
TU520-ETH carries the physical network and supply interfaces used by a compatible PROFINET communication module.
PRIMARY
Ethernet ports
2 × RJ45
Ethernet technology
10/100BASE-TX or 100BASE-TX
Rated supply
24 V DC
Maximum total current
10 A
SYSTEM
Bus connectors
3 removable
Terminal technology
Spring connection
Process supply terminal
UP
Zero-potential terminal
ZP
INSTALLATION
Grounding
DIN rail or wall screws
Mounting position
Horizontal or vertical
Catalog weight
200 g
Lifecycle phase
Active
Ethernet ports
2 × RJ45
Mounting
Horizontal or vertical
Catalog weight
0.200 kg
Country of origin
Germany
Lifecycle
Active
02
NETWORK HANDOFF
Dual Ethernet access supporting a modular PROFINET station.
The terminal base exposes network and field connections while the installed communication module defines the actual protocol behavior.
01
SYSTEM FUNCTION
Dual-port layout
Two RJ45 sockets support the Ethernet path required by the inserted PROFINET communication interface.
02
SYSTEM FUNCTION
Module-defined speed
ABB documents 10/100BASE-TX or 100BASE-TX operation depending on the plugged CI5xx module.
03
SYSTEM FUNCTION
Removable bus wiring
Three removable connectors carry the auxiliary bus systems assigned by the communication interface.
CONFIGURATION SUMMARY
Ethernet ports2
Bus plugs3
Rated supply24 V DC
INSTALLATION REVIEW
Validate the PROFINET terminal base.
Trace network, bus plugs and supply
CI5XX UNIT
Exact interface
CHECK
RJ45 PORTS
Both mapped
CHECK
AUX PLUGS
3 retained
CHECK
PROCESS PWR
24 V DC
CHECK
CURRENT CAP
10 A max.
CHECK
Match the installed CI5xx, Ethernet topology and removable connector assignments before energizing.
03
SELECTION & SUPPORT FAQ
Clear answers for confident TU520-ETH selection.
Use the complete model and installed-system details to confirm a reliable match before purchase.
Prepare a precise match.
01 · NAMEPLATE
Full model and hardware index
02 · INSTALLED SYSTEM
Base, wiring and connected modules
03 · PROJECT
Software, settings and required condition
Q1
Which ABB communication interfaces use TU520-ETH?
ABB specifies TU520-ETH for compatible S500 PROFINET communication interface modules. The exact CI5xx model determines the Ethernet speed and removable bus assignments.
Q2
Does ABB TU520-ETH contain the PROFINET device electronics?
No. TU520-ETH is the terminal unit that provides Ethernet, supply and removable bus connections; the installed communication interface module performs the PROFINET device functions.
Q3
Can ABB TU520-ETH support an Ethernet daisy chain?
The terminal unit provides two RJ45 sockets, and compatible CI5xx modules document integrated switch functionality. Confirm the installed module before planning the topology.
Q4
What must be checked when replacing ABB TU520-ETH?
Record the communication-interface model, RJ45 cabling, 24 V DC supply, grounding and all three removable bus connectors before moving wiring to a replacement base.
Q5
Is there an extended-condition version of ABB TU520-ETH?
Yes. ABB lists TU520-ETH-XC as a separate active version for extended conditions. It must be selected by its own configuration and environmental requirements.
Q6
Which details are needed to quote ABB TU520-ETH accurately?
Send the TU520-ETH model, installed CI5xx module, connector photos, quantity, required condition, destination and delivery date so compatibility and supply can be reviewed.
EXACT CONFIGURATION: TU520-ETH
