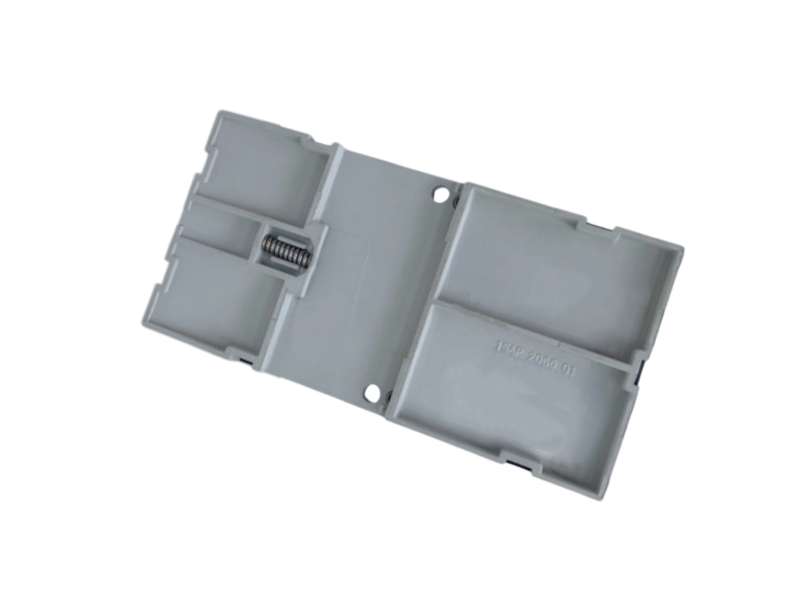

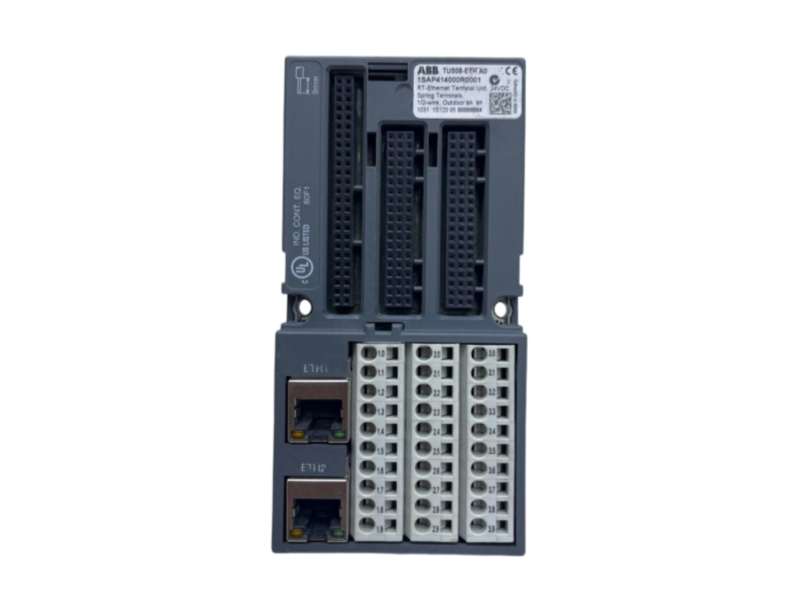

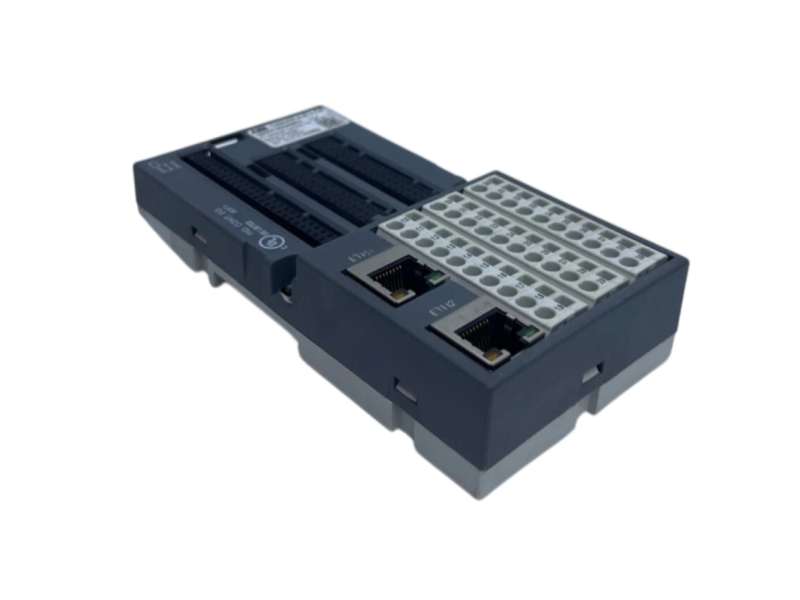

ABB TU508-ETH is an active spring-terminal base for S500 Ethernet communication interface modules, with two RJ45 ports, 30 signal/supply terminals and up to 24 I/O channels.
| Manufacturer | ABB |
| Item number | TU508-ETH |
| Country of Origin | Switzerland |
| Lead Time | 2-3 DAYS |
| After-Sales Support | For after-sales support, please contact May. |
| HS Code / Commodity code | Please confirm the destination before shipping. |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
Spring-terminal interface base for Ethernet communication modules and their field channels.
TU508-ETH provides the physical Ethernet sockets, I/O plugs and process-supply terminals used by compatible S500 Ethernet communication interface modules.
TU508-ETH must be paired with the correct Ethernet communication interface, network protocol and I/O power arrangement; a matching connector shape alone is not sufficient.
Supported interfaces, spring wiring, module exchange, power groups and active XC base.
ABB documents TU508-ETH for compatible S500 Ethernet interfaces including CI50x-PNIO, CI51x-ETHCAT and CI52x-MODTCP families. Confirm the exact module in the current hardware manual.
Both provide the Ethernet terminal-base function, but TU508-ETH uses spring terminals and TU507-ETH uses screw terminals. Their order codes are different.
Yes. ABB states that the electronics module can be removed while the Ethernet terminal unit and its field wiring remain installed, after following the documented service procedure.
The base supports up to 24 I/O channels in three groups of eight. The inserted communication interface module determines the actual terminal and channel assignment.
No. The two RJ45 sockets are part of the base, but Ethernet rate, fieldbus protocol and I/O behavior depend on the inserted CI5xx communication interface module.
Provide order code 1SAP214000R0001, inserted CI5xx module, protocol, UP/UP3 wiring, spring-terminal confirmation, standard or XC requirement, quantity and destination.
Documentation, response and long-term automation spare-parts assistance.
Most products are covered by a warranty of up to 12 months, subject to the applicable terms and conditions. If any product-related issue occurs during the warranty period, our team will assist you and provide an appropriate solution.
Relevant datasheets and technical literature can be provided with the goods, offering useful information for product identification, installation, operation, and maintenance.
We understand the importance of minimizing equipment downtime. Our team responds promptly to inquiries and provides professional assistance with product information, quotations, order status, shipping, and after-sales questions.
We serve customers worldwide and provide reliable assistance from inquiry to delivery and after-sales service, ensuring clear and timely communication throughout the process.
We continue to source discontinued, obsolete, and hard-to-find automation parts from various brands, helping customers maintain existing equipment and reduce downtime caused by spare parts shortages.
Sincere Cooperation, Long-Term Trust
A Russian customer urgently needed a replacement for a discontinued automation component. After reviewing the product label, technical parameters, and application details, our engineers recommended a compatible alternative and provided photos and test videos before shipment. The alternative performed well, enhancing the customer's confidence in our technical capabilities and leading to multiple repeat orders.
An Indian customer still had doubts after initial online communication with us, so they visited our company in person for a face-to-face meeting and product inspection. This visit increased the customer's trust and led to the successful placement of their first order. Over the next few years, we completed multiple orders and established a stable, long-term partnership.
A Venezuelan customer needed a specific automation component and compared products and services from several suppliers online. After nearly three weeks of careful consideration, our sincere communication, professional service, and reliable product quality won the customer's trust. After receiving the product and using it for several weeks without any problems, the customer gave us positive feedback and subsequently placed multiple orders.
A varied reference list of specialist automation brands and model families.
Include the exact ABB order code, application, installed hardware, quantity, destination and required delivery date.
