Name: ABB TB5660-2ETH AC500 V3 Six-Slot Terminal Base
Availability: InStock

ABB TB5660-2ETH AC500 V3 Six-Slot Terminal Base

INQUIRE NOW · ABB CONFIGURATION REVIEW

ABB TB5660-2ETH AC500 V3 Six-Slot Terminal Base

ABB TB5660-2ETH is an extended AC500 V3 controller base for projects that need several plug-in communication modules. It combines CPU mounting, network terminations and expansion-bus continuity in one station platform.

ORDER CODE 1SAP116300R0278

BASE WEIGHT 0.315 kg

CONFIGURATION REVIEW Required

Order check: Confirm the intended project scope before finalizing commercial terms.

★ Brand New Original

✓ Integrity Supply

✈ Worldwide Shipping

Request an ABB TB5660-2ETH Quote

Product information

TB5660-2ETH Multi-Communication Base Layout

The larger base is organized around controller seating, coupler capacity and built-in network connections.

Station Capacity

GROUP 1

CPU platformAC500 V3

Plug-in positionsSix

I/O extensionUp to 10 modules

Switch functionConfigurable

Cabinet roleExpanded controller base

CAPACITY REVIEW 6 COUPLER SLOTS

Allocate each slot by protocol and controller-resource demand before hardware purchase.

Built-In Interfaces

GROUP 2

EthernetDual network path

SerialRS-232/RS-485 capable CPU link

CANCAN/CANopen connection

I/O busDirect extension interface

Field wiringPluggable spring terminals

MODULE ROLE

This configuration gives an AC500 V3 station room for multiple plug-in communication functions while retaining the direct I/O expansion path.

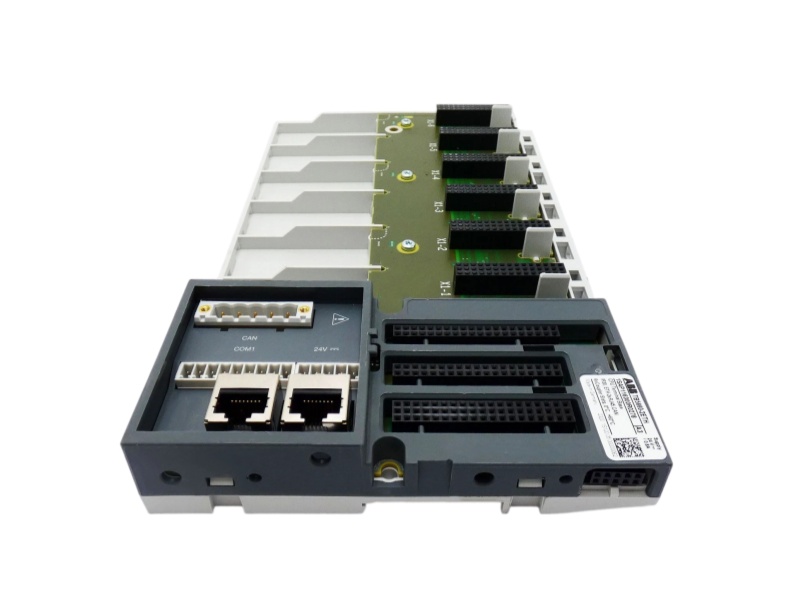

2RJ45 Ethernet ports

1COM1 connection

1CAN connection

Plan TB5660-2ETH Cabinet Space and Slot Use

Physical envelope, installed protocols and unused-position protection are reviewed together.

INTEGRATION & PROTECTION

01Cabinet envelope

Reserve adequate rail length and wiring access for the extended base.

02Protocol loading

Confirm the CPU supports the complete planned communication combination.

03Contact protection

Keep unused module contacts protected from dust and electrostatic discharge.

04Bus handling

Do not touch exposed I/O-bus connectors while the station is operating.

05Module sequence

Document each communication position in the controller hardware tree.

06Maintenance clearance

Provide room to remove connectors and modules without disturbing adjacent wiring.

LAYOUTApprove rail space and service clearance.

ALLOCATEMap each protocol to one physical position.

COVERInstall protective hardware in every unused position.

ABB TB5660-2ETH Buyer FAQ & Ordering Guide

Selection guidance for high-capacity AC500 V3 communication stations.

Q01

When is ABB TB5660-2ETH preferable to a smaller AC500 V3 base?

ABB TB5660-2ETH is intended for a station that needs several plug-in communication positions and the cabinet space to support them.

Q02

Which compatibility checks matter most for ABB TB5660-2ETH?

Confirm the V3 CPU, complete communication-module combination, power plan, project resource limits and available panel envelope.

Q03

What type of project typically uses ABB TB5660-2ETH?

ABB TB5660-2ETH suits controller stations that coordinate multiple industrial networks from one AC500 V3 CPU assembly.

Q04

How should buyers interpret the current ABB TB5660-2ETH product entry?

The entry confirms the model and configuration; it does not guarantee immediate inventory, so availability must be quoted for the required quantity.

Q05

Can ABB TB5660-2ETH replace a narrower base without panel changes?

Not automatically. Rail space, wiring reach, coupler allocation and the controller project must be redesigned and approved.

Q06

What should be included in an ABB TB5660-2ETH documentation and price request?

Provide the CPU model, proposed coupler list, cabinet drawing, destination, quantity and required technical-document language.
