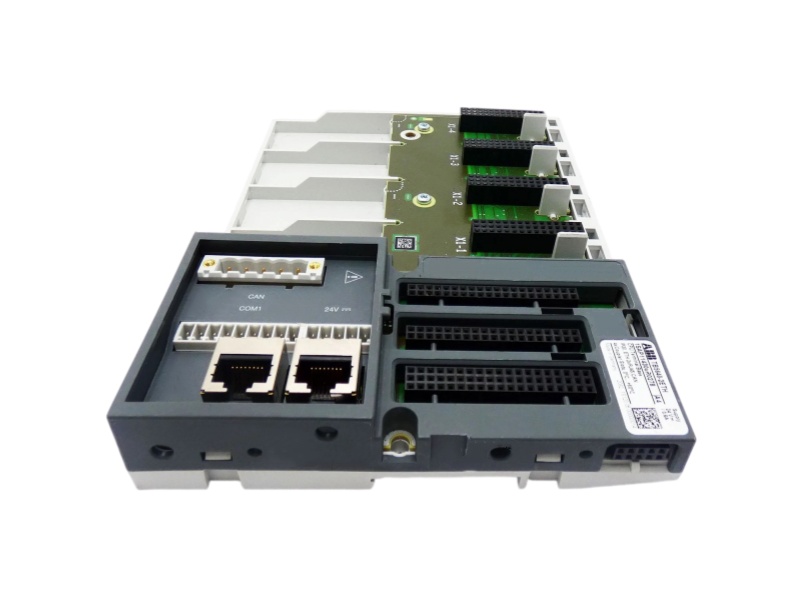

ABB TB5640-2ETH terminal base front view

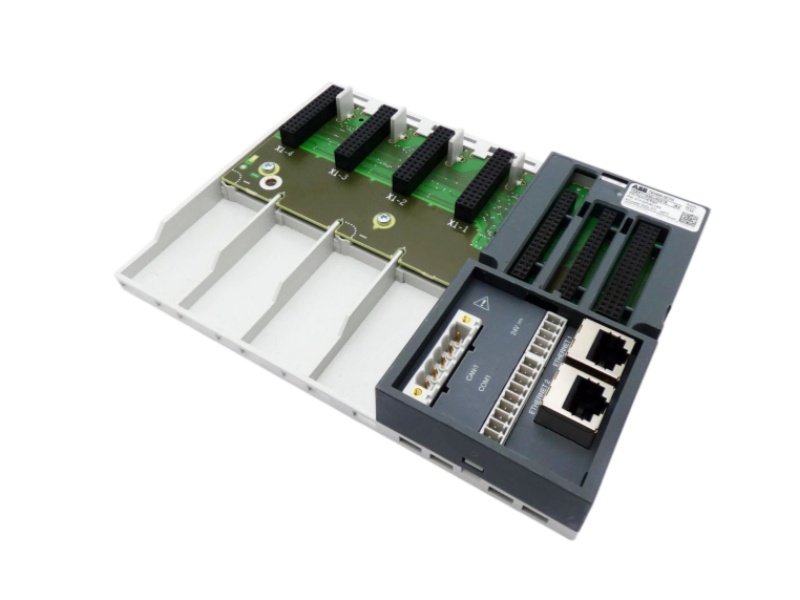

ABB TB5640-2ETH AC500 V3 angled view
ABB TB5640-2ETH connection base detail

ABB TB5640-2ETH AC500 V3 Four-Slot Terminal Base

INQUIRE NOW · ABBAC500 V3 HARDWARE

ABB TB5640-2ETH AC500 V3 Four-Slot Terminal Base

ABB TB5640-2ETH provides the mounting and internal connection platform for a multi-network AC500 V3 controller station. Its wider base is intended for projects that need several plug-in communication functions around one processor module.

ORDER CODE1SAP114300R0278
NET WEIGHT0.260 kg
VERSIONStandard AC500 V3
Configuration check: Match the processor, communication-module list and cabinet width before ordering.
★ Brand New Original
✓ One Year Warranty
✦ Integrity Supply
Request an ABB TB5640-2ETH Quote
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TB5640-2ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

TB5640-2ETH Electrical & Mounting Data

Official installation values organized for cabinet approval.

01SUPPLY CONNECTION24 V DC
02TERMINAL STYLERemovable 5-pin, spring type
03MAXIMUM CURRENT CONSUMPTION0.65 A
04PEAK INRUSH CURRENT55 A
05MINIMUM FUSE MELTING INTEGRAL1 A²s
06MOUNTING POSITIONHorizontal or vertical
07DIN RAIL35 mm; 7.5 or 15 mm depth
08SCREW MOUNTINGM4; 1.2 Nm fastening torque
09DEGREE OF PROTECTIONIP20 when fully assembled
INSTALLATION NOTEUse SELV or PELV supply arrangements and complete every module, terminal and cover position before relying on the stated enclosure protection.
02

Build the Right AC500 V3 Station

Processor fit, expansion capacity and onboard access in one planning view.

STATION ARCHITECTURE
Processor position1
Plug-in communication positions4
Onboard Ethernet access2 RJ45 interfaces
Serial access1 COM1 interface
CAN access1 CAN interface
Direct I/O expansionUp to 10 modules
01 · ALLOCATE

Assign every communication position to a confirmed network role before cabinet wiring.

02 · LIMIT

Communication positions may accept communication or AC500-S modules; only one AC500-S module is permitted on one terminal base.

03 · ISOLATE

Remove station power before installing, removing or replacing the base, processor or communication modules.

03

ABB TB5640-2ETH Procurement FAQ

Clear answers for cabinet planners, maintenance teams and automation buyers.

Q01

What operating temperatures apply to the standard ABB TB5640-2ETH?

ABB specifies 0 °C to +60 °C for horizontal mounting and 0 °C to +40 °C for vertical mounting under the standard AC500 system conditions.

Q02

Is there an extreme-condition version of ABB TB5640-2ETH?

Yes. ABB lists TB5640-2ETH-XC under order code 1SAP314300R0278 for extreme ambient conditions; the exact processor combination must still be checked before ordering.

Q03

Which applications are a practical fit for ABB TB5640-2ETH?

ABB TB5640-2ETH suits modular machines, process skids and infrastructure panels that combine several industrial communication functions with a central AC500 V3 controller.

Q04

Is ABB TB5640-2ETH discontinued or still active?

ABB lists ABB TB5640-2ETH in the Active product life-cycle phase in data sheet 3ADR010080, revision 14. A current quotation is still required for actual supply and delivery.

Q05

Can ABB TB5640-2ETH be replaced by another TB56xx base without engineering changes?

No direct drop-in successor is identified by ABB. TB5600-2ETH, TB5610-2ETH, TB5620-2ETH and TB5660-2ETH provide different expansion capacities, so hardware width, processor support, slot allocation and the control project must be reviewed.

Q06

What should an ABB TB5640-2ETH manual and quotation request include?

Request ABB data sheet 3ADR010080 and send the full model, order code, selected processor, communication-module list, quantity, destination and required delivery date.
